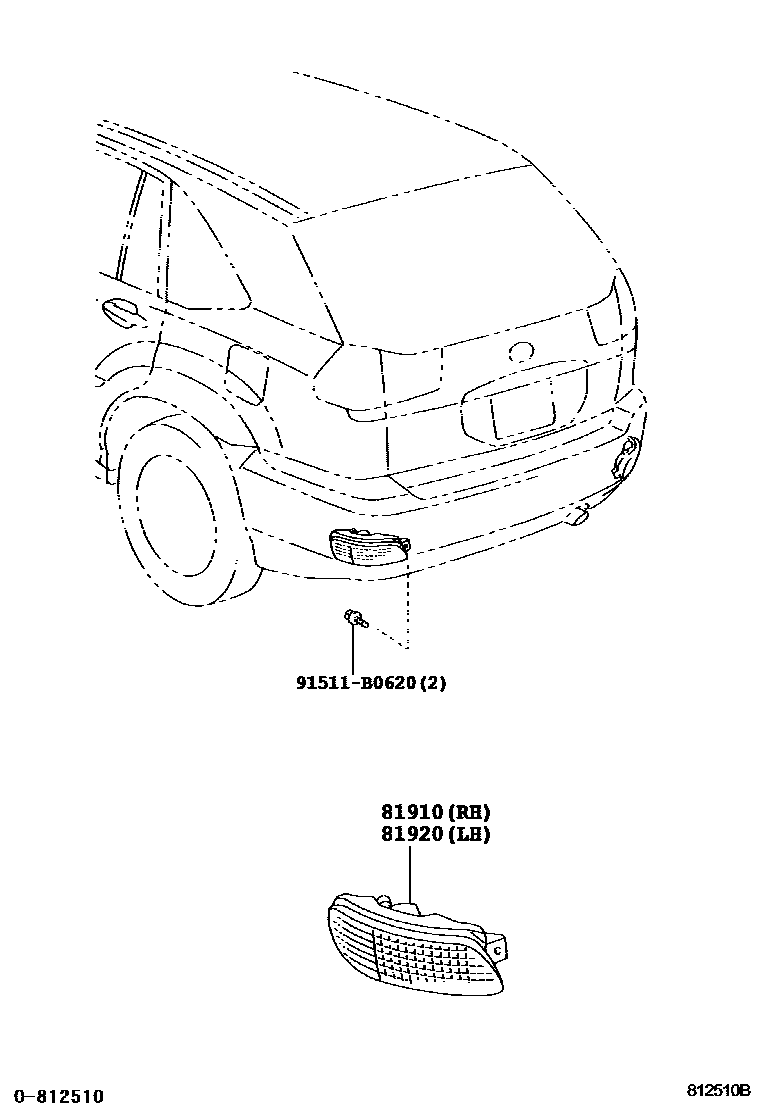

REFLEX REFLECTOR

0001 1 0002 1

81910REFLECTOR ASSY, REFLEX, RH

main81910-48020iMCU38..GCC200302-200812

main81910-48030iMCU3#..ARL,EUR200302-200610

sub81910-48031

main81910-48031iGSU35..ARL,EUR200611-200812

81920REFLECTOR ASSY, REFLEX, LH

main81920-48020iMCU38..GCC200302-200812

main81920-48030iMCU3#..ARL,EUR200302-200610

sub81920-48031

main81920-48031iGSU35..ARL,EUR200611-200812

91511B0620

main91511-B0620

3 parts on this diagram · 2 diagrams in section
