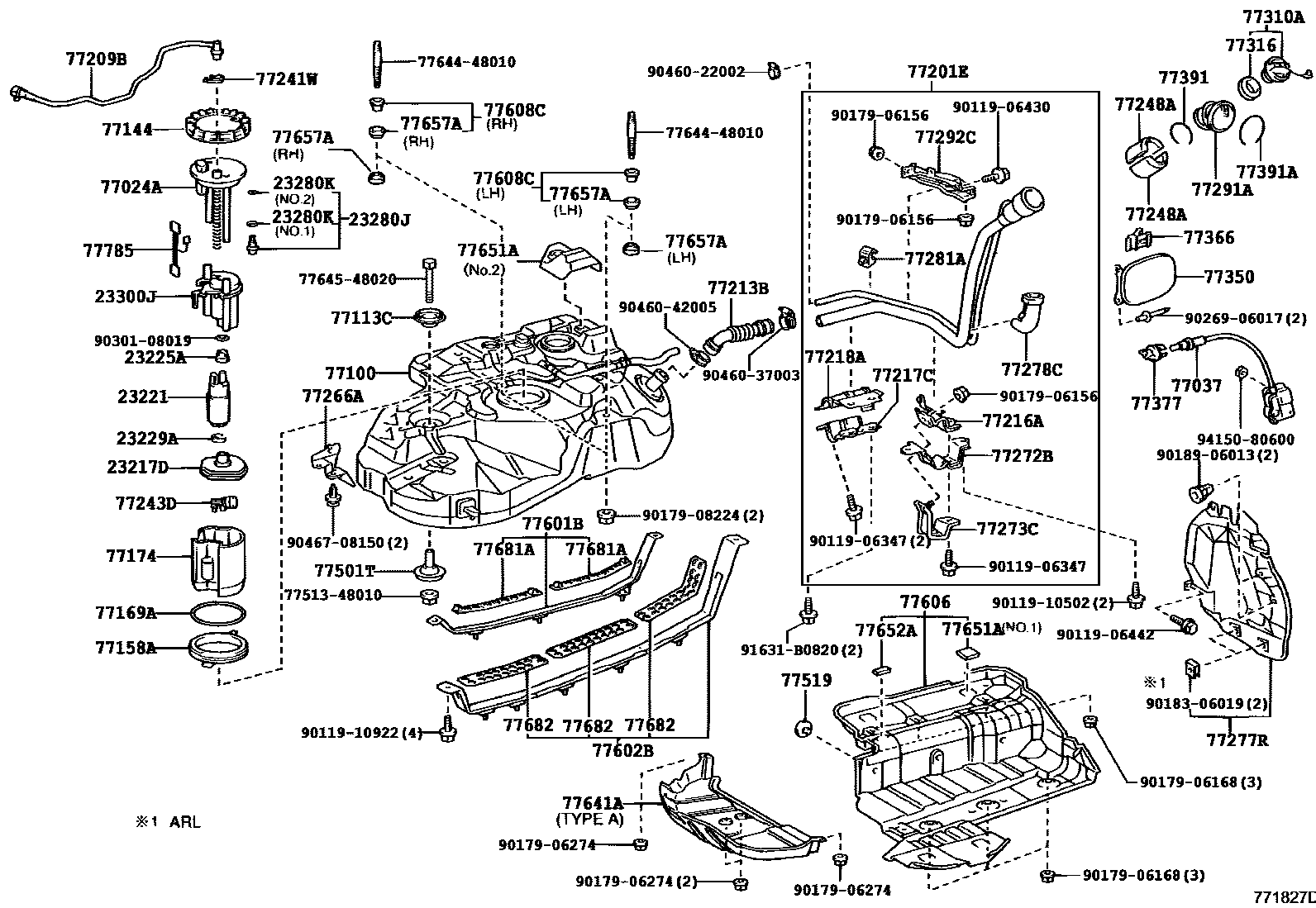

FUEL TANK & TUBE
23217DFILTER, FUEL PUMP
23221PUMP, FUEL
23225ASPACER, FUEL PUMP
23229ACLIP(FOR FUEL PUMP FILTER)
23280JREGULATOR ASSY, FUEL PRESSURE
23280KRING, O(FOR FUEL PRESSURE REGULATOR)
NO.1
NO.2
23300JFILTER ASSY, FUEL
77024APLATE SUB-ASSY, FUEL SUCTION
77037LOCK SUB-ASSY, FUEL FILLER OPENING LID
77144RETAINER, FUEL PUMP GAUGE
77158ASUPPORT, TANK SUCTION TUBE
77201EPIPE SUB-ASSY, FUEL TANK FILLER
77213BHOSE, FUEL TANK TO FILLER PIPE
CHINA SPEC
77216ASUPPORT, FUEL TANK FILLER PIPE, NO.1
77217CSUPPORT, FUEL TANK FILLER PIPE, NO.2
77218ASUPPORT, FUEL TANK FILLER PIPE, NO.3
77241WCLIP, TUBE JOINT
77243DJOINT, FUEL TUBE, NO.1
77248AHOLDER, FUEL TANK FILLER PIPE COVER
77266APROTECTOR, FUEL TUBE, NO.1
77272BSUPPORT, BREATHER TUBE, NO.1
77273CSUPPORT, BREATHER TUBE, NO.2
77277RPROTECTOR, FUEL TANK FILLER PIPE
77278CPROTECTOR, FUEL TANK FILLER PIPE, NO.2
77291ASHIELD, FUEL TANK FILLER PIPE
77292CSHIELD, FUEL TANK FILLER PIPE, NO.2
77366SPRING, FUEL FILLER OPENING LID HINGE
77377RETAINER, FUEL FILLER OPENING LID LOCK
77391RING, FUEL INLET BOX
77391ARING, FUEL INLET BOX
77519SPACER, FUEL TANK BRACKET
77601BBAND SUB-ASSY, FUEL TANK, NO.1 RH
77602BBAND SUB-ASSY, FUEL TANK, NO.1 LH
77606PROTECTOR SUB-ASSY, FUEL TANK, NO.1
77608CCUSHION SET, FUEL TANK
RH
LH
77641APROTECTOR, FUEL TANK, NO.1
BRUNEI SPEC&TIRE & DISK WHEEL-235/55R18 ALUMI M+S
TIRE & DISC WHEEL-225/60R17 ALUMI
CHINA SPEC&TIRE & DISC WHEEL-225/65R17 ALUMI
SOUTH AFRICA SPEC&TIRE & DISC WHEEL-235/55R18 ALUMI
HONG KONG SPEC&TIRE & DISC WHEEL-235/55R18 ALUMI
SINGAPORE SPEC&TIRE & DISC WHEEL-235/55R18 ALUMI
BRUNEI SPEC&TIRE & DISC WHEEL-235/55R18 ALUMI
CHINA SPEC&TIRE & DISK WHEEL-225/65R17 ALUMI M+S
SOUTH AFRICA SPEC&TIRE & DISK WHEEL-235/55R18 ALUMI M+S
HONG KONG SPEC&TIRE & DISK WHEEL-235/55R18 ALUMI M+S
PHILIPPINE SPEC
SINGAPORE SPEC&TIRE & DISK WHEEL-235/55R18 ALUMI M+S
TAIWAN SPEC&TIRE & DISK WHEEL-235/55R18 ALUMI M+S
THAILAND SPEC
TIRE & DISK WHEEL-225/60R17 ALUMI
77651ACUSHION, FUEL TANK, NO.1
NO.1
NO.2
77652CUSHION, FUEL TANK, NO.1
77652ACUSHION, FUEL TANK, NO.2
77657ACUSHION, FUEL TANK, NO.5
RH
LH
7751348010RETAINER, LPG TANK BRACKET, FRONT
main77513-48010
7764448010BOLT, FUEL TANK
main77644-48010
7764548020PACKING, FUEL TANK BRACKET UPPER, B
main77645-48020
9011906347
main90119-06347
9011906430
main90119-06430
9011906442
main90119-06442
9011910502
main90119-10502
9011910922
main90119-10922
9017906156
main90179-06156
9017906168
main90179-06168
9017906274
main90179-06274
9017908224
main90179-08224
9018306019
main90183-06019
9018906013
main90189-06013
9026906017
main90269-06017
9030108019
main90301-08019
9046022002
main90460-22002
9046037003
main90460-37003
9046042005
main90460-42005
9046708150
main90467-08150
91631B0820
main91631-B0820
9415080600
main94150-80600
75 parts on this diagram · 5 diagrams in section
