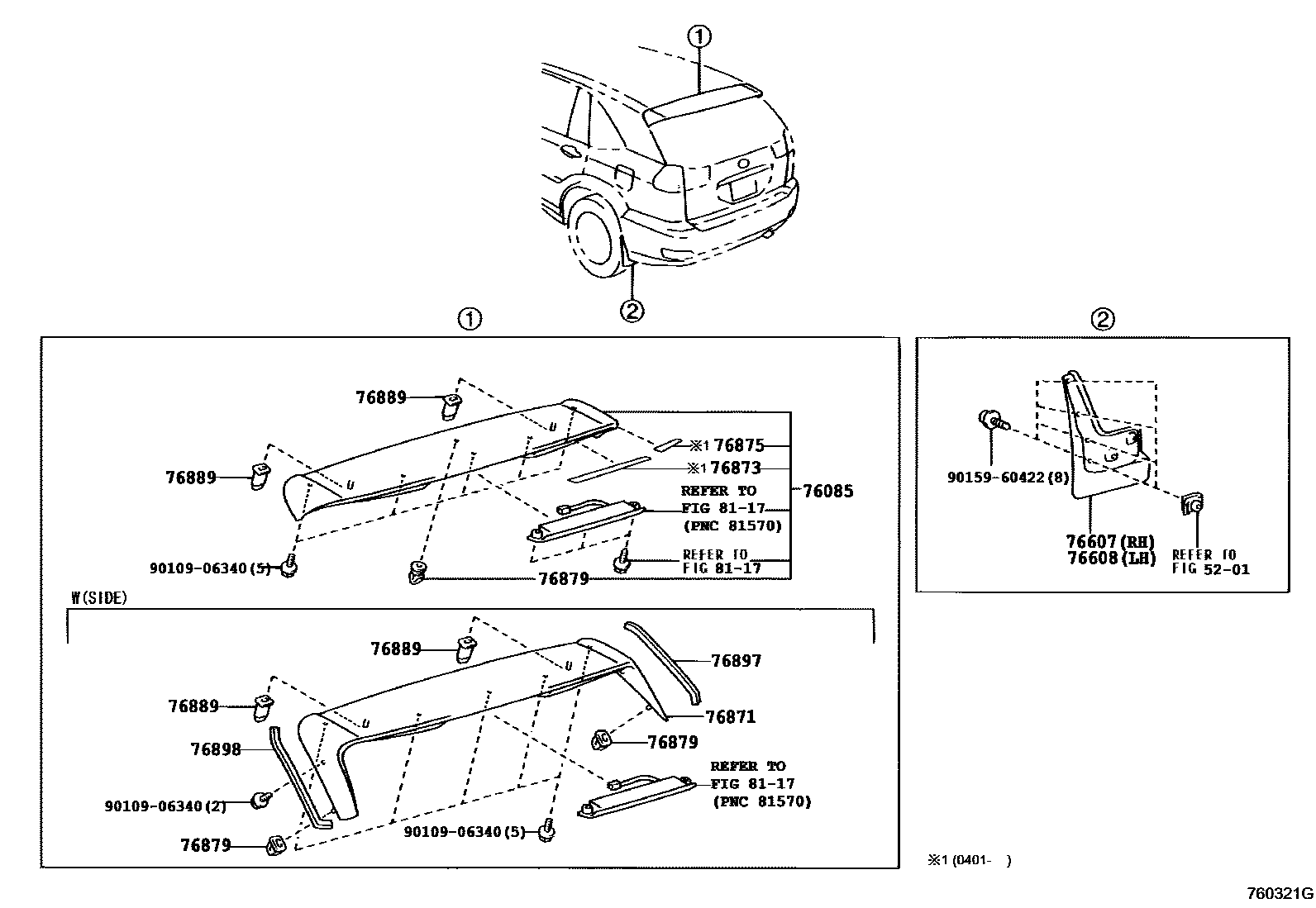

MUDGUARD & SPOILER

5201

76085SPOILER SUB-ASSY, REAR

main76085-48040iMCU3#200302-200401

sub76085-48041

main76085-48041iMCU3#200401-200608

sub76085-48042

main76085-48042iGSU35200609-200610

sub76085-48043

main76085-48043iGSU35200611-200812

76607MUDGUARD SUB-ASSY, QUARTER PANEL, REAR RH

main76625-48030iMCU38..ARL200302-200607

sub76625-48070

main76625-48070iGSU35..ARL200608-200812

76608MUDGUARD SUB-ASSY, QUARTER PANEL, REAR LH

main76626-48030iMCU38..ARL200302-200607

sub76626-48060

main76626-48060iGSU35..ARL200608-200812

76871SPOILER, REAR

main76871-48904

main76871-48906

main76871-48907

76873PROTECTOR, REAR SPOILER, NO.2

main76873-48010iMCU3#200401-200812

76875PROTECTOR, REAR SPOILER, NO.4

main76875-48010iMCU3#200401-200812

76879CLIP, REAR SPOILER, NO.1

main76879-48020iMCU3#200302-200812

76889CLIP, REAR SPOILER, NO.2

main76889-44020iMCU3#200302-200812

76897PROTECTOR, REAR SPOILER, SIDE RH

main76897-48030

76898PROTECTOR, REAR SPOILER, SIDE LH

main76898-48030

8117

9010906340

main90109-06340

9015960422

main90159-60422

14 parts on this diagram · 1 diagram in section
