BATTERY CARRIER

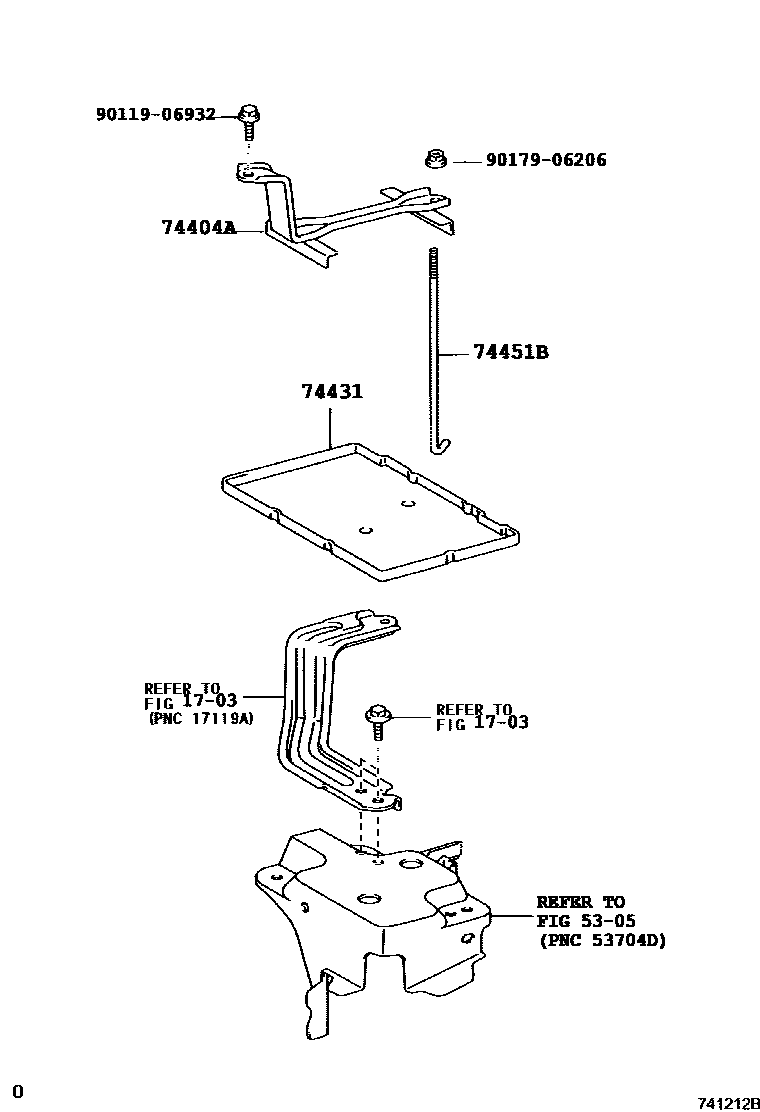

Parts diagram

1703

5305

74404ACLAMP SUB-ASSY, BATTERY

main74404-48040i200302-200601

74431TRAY, BATTERY

main74431-33011i200302-200601

74451BBOLT, BATTERY CLAMP

main74452-33010i200302-200601

9011906932

main90119-06932

9017906206

main90179-06206

7 parts on this diagram · 1 diagram in section
