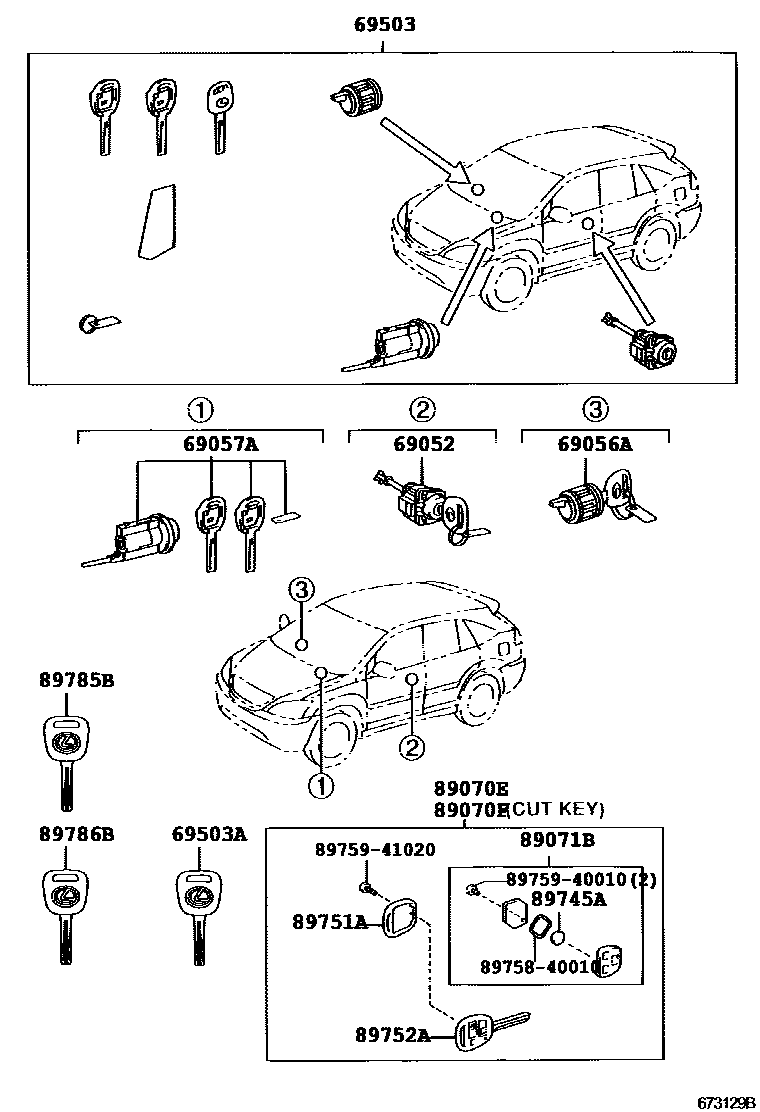

LOCK CYLINDER SET
69052CYLINDER & KEY SET, DOOR LOCK, LH
69056ACYLINDER & KEY SET, GLOVE COMPARTMENT LOCK
69057ACYLINDER & KEY SET, IGNITION SWITCH LOCK
sub69057-48111
POWER BACK DOOR-WITH
POWRE BACK DOOR-WITH
sub69057-48111
69503AKEY, BLANK
MASTER KEY,CARD TYPE
MASTER KEY,W(*68)
89070ETRANSMITTER ASSY, DOOR CONTROL
89070FTRANSMITTER ASSY, DOOR CONTROL (CUT KEY)
89071BMODULE SET, TRANSMITTER SUB-ASSY, DOOR CONTROL
89745ABATTERY, TRANSMITTER
89751ACOVER, TRANSMITTER HOUSING
89752ACASE, TRANSMITTER HOUSING
MASTER KEY(BLANK)
POWRE BACK DOOR-WITH,MASTER KEY(BLANK)
CHINA SPEC&POWRE BACK DOOR-WITH,MASTER KEY(BLANK)
HONG KONG SPEC&POWRE BACK DOOR-WITH,MASTER KEY(BLANK)
SINGAPORE SPEC&POWRE BACK DOOR-WITH,MASTER KEY(BLANK)
CHINA SPEC&POWER BACK DOOR-WITH,MASTER KEY(BLANK)
TAIWAN SPEC&POWER BACK DOOR-WITH,MASTER KEY(BLANK)
POWER BACK DOOR-WITH,MASTER KEY(BLANK)
CHINA SPEC&POWER BACK DOOR-WITH,MASTER KEY(CUT)
CHINA SPEC&POWRE BACK DOOR-WITH,MASTER KEY(CUT)
HONG KONG SPEC&POWRE BACK DOOR-WITH,MASTER KEY(CUT)
SINGAPORE SPEC&POWRE BACK DOOR-WITH,MASTER KEY(CUT)
MASTER KEY(CUT)
POWRE BACK DOOR-WITH,MASTER KEY(CUT)
TAIWAN SPEC&POWER BACK DOOR-WITH,MASTER KEY(CUT)
POWER BACK DOOR-WITH,MASTER KEY(CUT)
MASTER KEY(CUT)
SUB KEY(CUT)
MASTER KEY(BLANK)
SUB KEY(BLANK)
89785BTRANSMITTER, TRANSPONDER KEY MASTER
CUT KEY
BLANK KEY
89786BTRANSMITTER, TRANSPONDER KEY SUB
BLANK KEY
CUT KEY
8975840010PACKING, DOOR CONTROL TRANSMITTER
8975940010SCREW, DOOR CONTROL TRANSMITTER
8975941020SCREW, DOOR CONTROL TRANSMITTER
16 parts on this diagram · 4 diagrams in section
