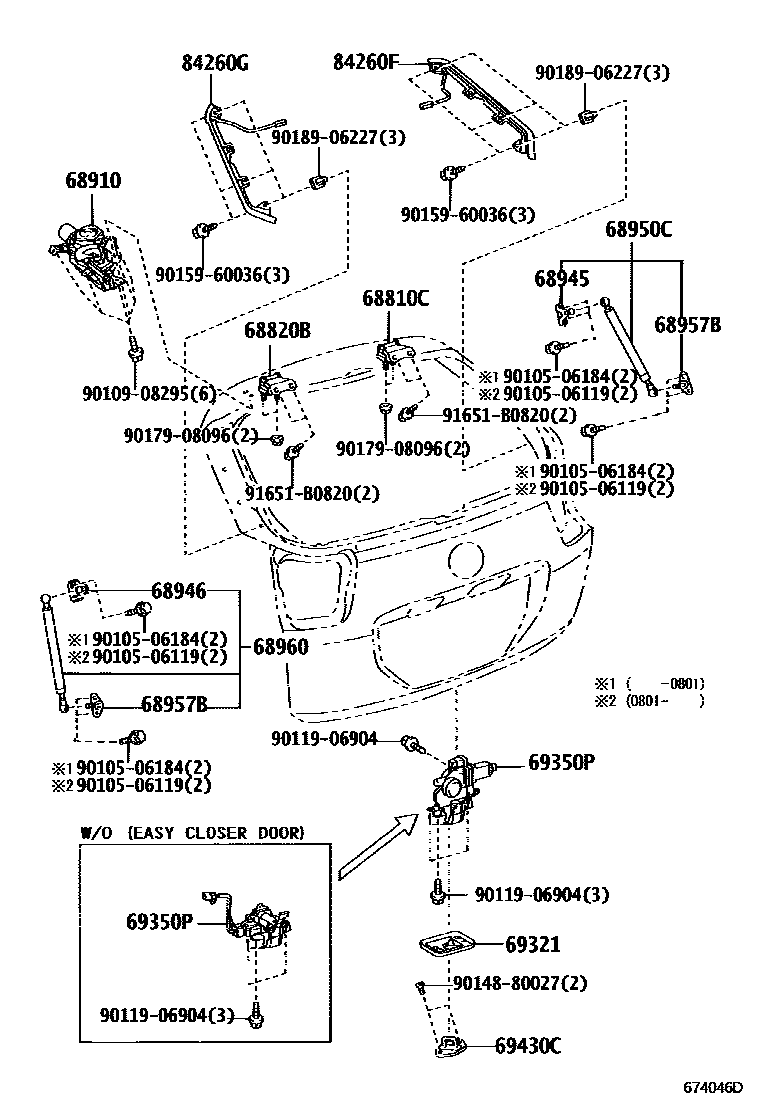

BACK DOOR LOCK & HANDLE
68810CHINGE ASSY, BACK DOOR, RH
sub68810-48011
68820BHINGE ASSY, BACK DOOR, LH
sub68810-48011
68910UNIT ASSY, POWER BACK DOOR
POWER BACK DOOR-WITH
POWER BACK DOOR-WITH
POWER BACK DOOR-WITH
68945BRACKET, BACK DOOR DAMPER STAY, UPPER RH
68946BRACKET, BACK DOOR DAMPER STAY, UPPER LH
68950CSTAY ASSY, BACK DOOR, RH
POWRE BACK DOOR-WITH
POWRE BACK DOOR-WITH
POWER BACK DOOR-WITH
68957BBRACKET, BACK DOOR STAY, LOWER
68960STAY ASSY, BACK DOOR, LH
POWRE BACK DOOR-WITH
POWRE BACK DOOR-WITH
POWER BACK DOOR-WITH
69321COVER, BACK DOOR LOCK
69350PLOCK ASSY, BACK DOOR, W/COURTESY LAMP SWITCH
TAIWAN SPEC&POWER BACK DOOR-WITH
sub69350-48031
69430CSTRIKER ASSY, BACK DOOR LOCK
84260FSENSOR ASSY, POWER BACK DOOR, RH
POWRE BACK DOOR-WITH
POWER BACK DOOR-WITH
84260GSENSOR ASSY, POWER BACK DOOR, LH
POWRE BACK DOOR-WITH
POWER BACK DOOR-WITH
9010506119
main90105-06119
9010506184
main90105-06184
9010908295
main90109-08295
9011906904
main90119-06904
9014880027
main90148-80027
9015960036
main90159-60036
9017908096
main90179-08096
9018906227
main90189-06227
91651B0820
main91651-B0820
22 parts on this diagram · 1 diagram in section
