REAR DOOR PANEL & GLASS
67003PANEL SUB-ASSY, REAR DOOR, RH
67004PANEL SUB-ASSY, REAR DOOR, LH
67113PANEL, REAR DOOR, OUTER RH
67114PANEL, REAR DOOR, OUTER LH
67407EBAR SUB-ASSY, REAR DOOR WINDOW DIVISION, RH
67408EBAR SUB-ASSY, REAR DOOR WINDOW DIVISION, LH
67673BGARNISH, REAR DOOR FRAME, RH
67674BGARNISH, REAR DOOR FRAME, LH
67814CPACKING, DOOR PROTECTOR
67836COVER, REAR DOOR LOCK CHILD PROTECTION, RH
67836HCOVER, REAR DOOR LOCK CHILD PROTECTION, LH
67841ECOVER, REAR DOOR SERVICE HOLE, RH
67842ECOVER, REAR DOOR SERVICE HOLE, LH
67867DRETAINER, REAR DOOR WEATHERSTRIP, RH
67868DRETAINER, REAR DOOR WEATHERSTRIP, LH
67871WEATHERSTRIP, REAR DOOR, RH
67871ARETAINER(FOR REAR DOOR WEATHERSTRIP)
67872WEATHERSTRIP, REAR DOOR, LH
68103GLASS SUB-ASSY, REAR DOOR, RH
*SERT,T=4.0,DK.GRAY
*SERT,T=4.0,DK.GRAY,REAR SIDE GLASS-PRIVACY
*UVCTT,T=4.0,GREEN
*UVCTT,T=4.0,GREEN,MOSCOW SPEC
*UVCTT,T=4.0,GREEN,HONG KONG SPEC
*UVCTT,T=4.0,GREEN,PHILIPPINE SPEC
*UVCTT,T=4.0,GREEN,SINGAPORE SPEC
*UVCTT,T=4.0,GREEN,BRUNEI SPEC
*UVCTT,T=4.0,GREEN,THAILAND SPEC
*UVCTT,T=4.0,GREEN,MALAYSIA SPEC
*UVCTT,T=4.0,GREEN,INDONESIA SPEC
68104GLASS SUB-ASSY, REAR DOOR, LH
*SERT,T=4.0,DK.GRAY
*SERT,T=4.0,DK.GRAY,REAR SIDE GLASS-PRIVACY
*UVCTT,T=4.0,GREEN,MOSCOW SPEC
*UVCTT,T=4.0,GREEN
*UVCTT,T=4.0,GREEN,HONG KONG SPEC
*UVCTT,T=4.0,GREEN,PHILIPPINE SPEC
*UVCTT,T=4.0,GREEN,SINGAPORE SPEC
*UVCTT,T=4.0,GREEN,BRUNEI SPEC
*UVCTT,T=4.0,GREEN,THAILAND SPEC
*UVCTT,T=4.0,GREEN,MALAYSIA SPEC
*UVCTT,T=4.0,GREEN,INDONESIA SPEC
68123BGLASS, REAR DOOR QUARTER WINDOW, RH
*SERT,T=4.0,DK.GRAY
*SERT,T=4.0,DK.GRAY,REAR SIDE GLASS-PRIVACY
*UVCTT,T=4.0,GREEN,SINGAPORE SPEC
*UVCTT,T=4.0,GREEN
*UVCTT,T=4.0,GREEN,MOSCOW SPEC
*UVCTT,T=4.0,GREEN,HONG KONG SPEC
*UVCTT,T=4.0,GREEN,PHILIPPINE SPEC
*UVCTT,T=4.0,GREEN,BRUNEI SPEC
*UVCTT,T=4.0,GREEN,THAILAND SPEC
*UVCTT,T=4.0,GREEN,MALAYSIA SPEC
*UVCTT,T=4.0,GREEN,INDONESIA SPEC
68124BGLASS, REAR DOOR QUARTER WINDOW, LH
*SERT,T=4.0,DK.GRAY
*SERT,T=4.0,DK.GRAY,REAR SIDE GLASS-PRIVACY
*UVCTT,T=4.0,GREEN
*UVCTT,T=4.0,GREEN,MOSCOW SPEC
*UVCTT,T=4.0,GREEN,HONG KONG SPEC
*UVCTT,T=4.0,GREEN,PHILIPPINE SPEC
*UVCTT,T=4.0,GREEN,SINGAPORE SPEC
*UVCTT,T=4.0,GREEN,BRUNEI SPEC
*UVCTT,T=4.0,GREEN,THAILAND SPEC
*UVCTT,T=4.0,GREEN,MALAYSIA SPEC
*UVCTT,T=4.0,GREEN,INDONESIA SPEC
68142CRUN, REAR DOOR GLASS, RH
68152CRUN, REAR DOOR GLASS, LH
68188WEATHERSTRIP, REAR DOOR QUARTER WINDOW, RH
68189WEATHERSTRIP, REAR DOOR QUARTER WINDOW, LH
68621CCOVER, REAR DOOR CHECK, RH
68622ACOVER, REAR DOOR CHECK, LH
68630DCHECK ASSY, REAR DOOR, RH
68640ACHECK ASSY, REAR DOOR, LH
7403
75923TAPE, BLACK OUT, NO.2 RH
75924TAPE, BLACK OUT, NO.2 LH
75937ATAPE, BLACK OUT, INNER UPPER RH
75938TAPE, BLACK OUT, INNER UPPER LH
75951CTAPE, BLACK OUT, INNER FRONT RH
75952ATAPE, BLACK OUT, INNER FRONT LH
75953ATAPE, BLACK OUT, INNER REAR RH
75954ATAPE, BLACK OUT, INNER REAR LH
9010908295
9015150016
9017906159
9033330004
9054109069
9095001841
91635B0614

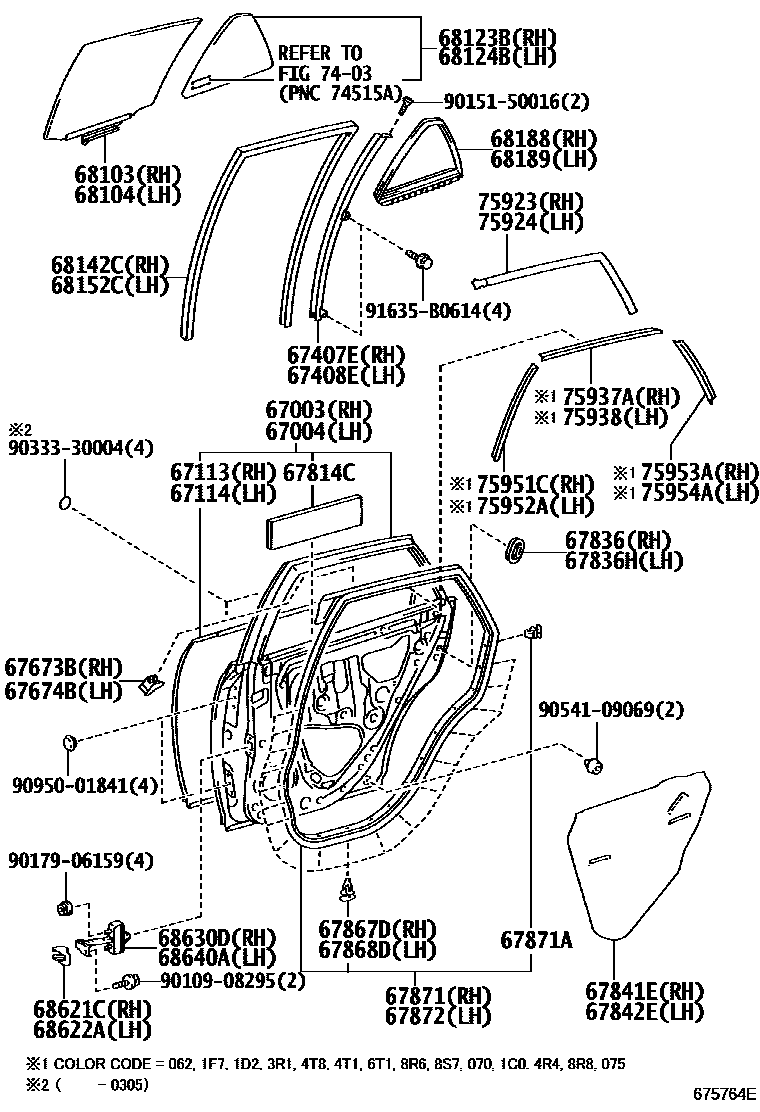

46 parts on this diagram · 2 diagrams in section
