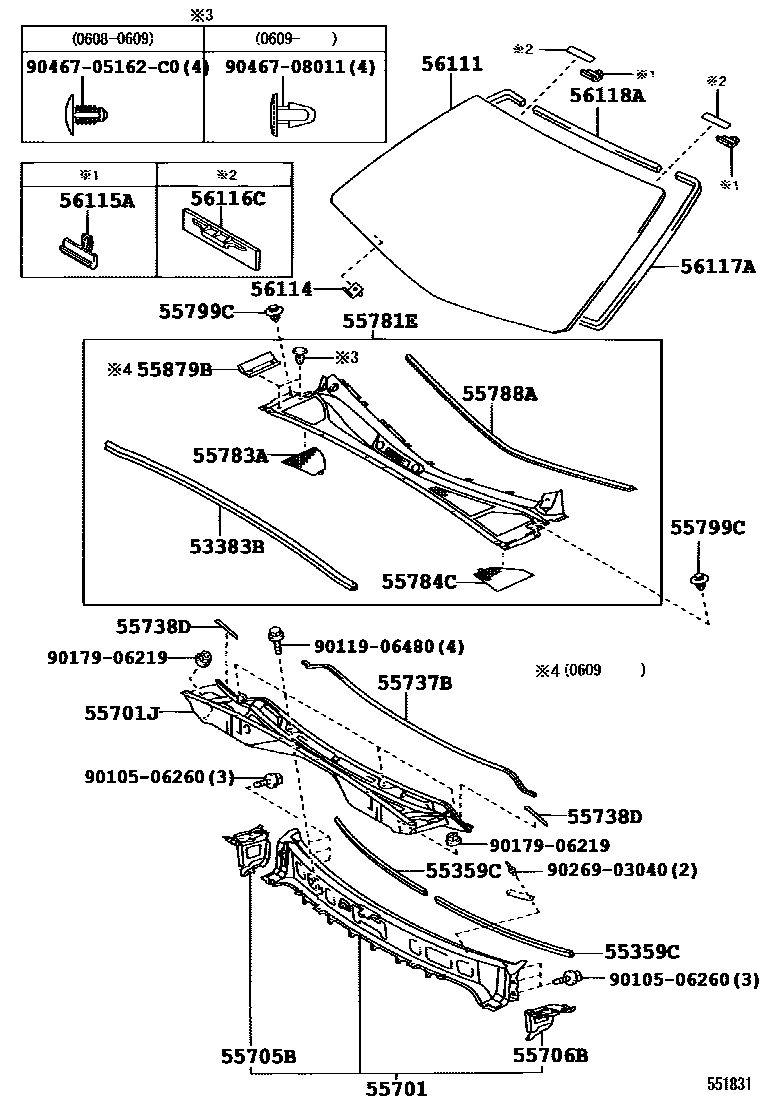

COWL PANEL & WINDSHIELD GLASS

53383BSEAL, HOOD TO COWL TOP

main53383-48030iMCU3#200302-200308

main53383-48031iMCU3#200308-200601

55359CCOSHION, INSTRUMENT PANEL, NO.5

main55359-48020×2iMCU3#200302-200601

55701PANEL SUB-ASSY, COWL

main55700-48050iGSU35..RHD200601-200812

main55700-48060iMCU3#..LHD200302-200601

55701JPANEL SUB-ASSY, COWL TOP, OUTER

main55701-48030iMCU3#..RHD200302-200601

main55701-48040iMCU3#..LHD200302-200601

main55701-48060iGSU35..LHD200601-200812

main55701-48070iGSU35..RHD200601-200812

55705BPANEL SUB-ASSY, COWL TOP SIDE, RH

main55705-48020iGSU35200601-200812

55706BPANEL SUB-ASSY, COWL TOP SIDE, LH

main55706-48020iMCU3#200302-200601

55737BSEAL, HEATER AIR DUCT SPLASH SHIELD, NO.1

main55737-48020iMCU3#200302-200601

55738DSEAL, HEATER AIR DUCT SPLASH SHIELD, NO.2

main55738-48020×2iMCU3#200302-200601

55781ELOUVER SUB-ASSY, COWL TOP VENTILATOR

main55708-48010iMCU3#..RHD200302-200308

main55708-48011iGSU35..RHD200601-200607

main55708-48012iGSU35..RHD200608-200812

main55708-48030iMCU3#..LHD200302-200308

main55708-48031iGSU35..LHD200601-200607

main55708-48032iGSU35..LHD200608-200812

main55708-48040iMCU35..LHD200302-200308

WINDSHIELD DEICER-WIPER DEICER

main55708-48041iGSU35..LHD..EUR200601-200607

WINDSHIELD DEICER-WITH(WIPER DEICER)

main55708-48042iGSU35..LHD..EUR200608-200812

WINDSHIELD DEICER-WITH(WIPER DEICER)

55783APAD, COWL TOP SILENCER

main55783-48010iGSU35200601-200812

main55783-48020iMCU35..LHD200302-200601

WINDSHIELD DEICER-WIPER DEICER

55784CPAD, COWL TOP SILENCER, LH

main55784-48010iGSU35200601-200812

main55784-48020iMCU35..LHD200302-200601

WINDSHIELD DEICER-WIPER DEICER

55788APROTECTOR, COWL TOP VENTILATOR LOUVER

main55788-48040iGSU35200601-200812

55799CCLIP, COWL TOP VENTILATOR LOUVER

main55799-48020×2iGSU35200601-200812

55879BSEAL, COWL VENT

main55879-48010×2iGSU35200609-200812

56111GLASS, WINDSHIELD

main56101-48060supersedes 56101-48050iMCU38..ARL200408-200601

*LAM,T=5.36,GREEN

main56101-48180iGSU35..ARL200601-200812

*LAM,T=5.48,GREEN

sub56101-48181

main56101-48070iMCU35..RHD200302-200408

*EHL,T=5.36,GREEN,WINDSHIELD DEICER-WIPER DEICER

main56101-48080iMCU35..RHD200408-200511

*EHL,T=5.36,GREEN,WINDSHIELD DEICER-WIPER DEICER

main56101-48081supersedes 56101-48050iMCU35..RHD200512-200601

*EHL,T=5.36,GREEN,LUXURY PACKAGE&WINDSHIELD DEICER-WIPER DEICER

main56101-48100supersedes 56101-48090iMCU3#..LHD200302-200601

*LAM,W/RAIN SENSOR,LUXURY PACKAGE

main56101-48110iMCU35..LHD200302-200408

*EHL,T=5.36,GREEN,WINDSHIELD DEICER-WIPER DEICER

main56101-48120iMCU35..LHD200302-200511

*EHL,T=5.36,GREEN,LUXURY PACKAGE&WINDSHIELD DEICER-WIPER DEICER

main56101-48121iMCU35..LHD200512-200601

*EHL,T=5.36,GREEN,WINDSHIELD DEICER-WIPER DEICER

main56101-48201supersedes 56101-48170iGSU35..RHD..EUR200601-200812

*LAM,T=5.48,GREEN,LUXURY PACKAGE&WINDSHIELD DEICER-WITH(WIPER DEICER)

sub56101-48202

main56101-48220supersedes 56101-48210iGSU35..LHD200601-200812

*LAM,T=5.48,GREEN,LUXURY PACKAGE

main56101-48241iGSU35..LHD..EUR200601-200812

*LAM,T=5.48,GREEN,LUXURY PACKAGE&WINDSHIELD DEICER-WITH(WIPER DEICER)

56114RETAINER, WINDSHIELD GLASS

main56114-22050iGSU35200601-200812

56115ASTOPPER, WINDSHIELD GLASS, NO.1

main56115-22010×2iMCU3#200302-200601

56116CSTOPPER, WINDSHIELD GLASS, NO.2

main56116-22050×2iMCU3#200302-200601

56117ADAM, WINDOW GLASS ADHESIVE

main56117-48030iMCU3#..EUR,GCC200302-200601

L=3487,LUXURY PACKAGE&WINDSHIELD DEICER-WIPER DEICER

sub56117-44030

56118ADAM, WINDOW GLASS ADHESIVE, NO.2

main56118-48030iMCU3#..EUR,GCC200302-200601

L=619,LUXURY PACKAGE&WINDSHIELD DEICER-WIPER DEICER

sub56117-74010

9010506260

main90105-06260

9011906480

main90119-06480

9017906219

main90179-06219

9026903040

main90269-03040

9046705162C0

main90467-05162C0

9046708011

main90467-08011

26 parts on this diagram · 1 diagram in section
