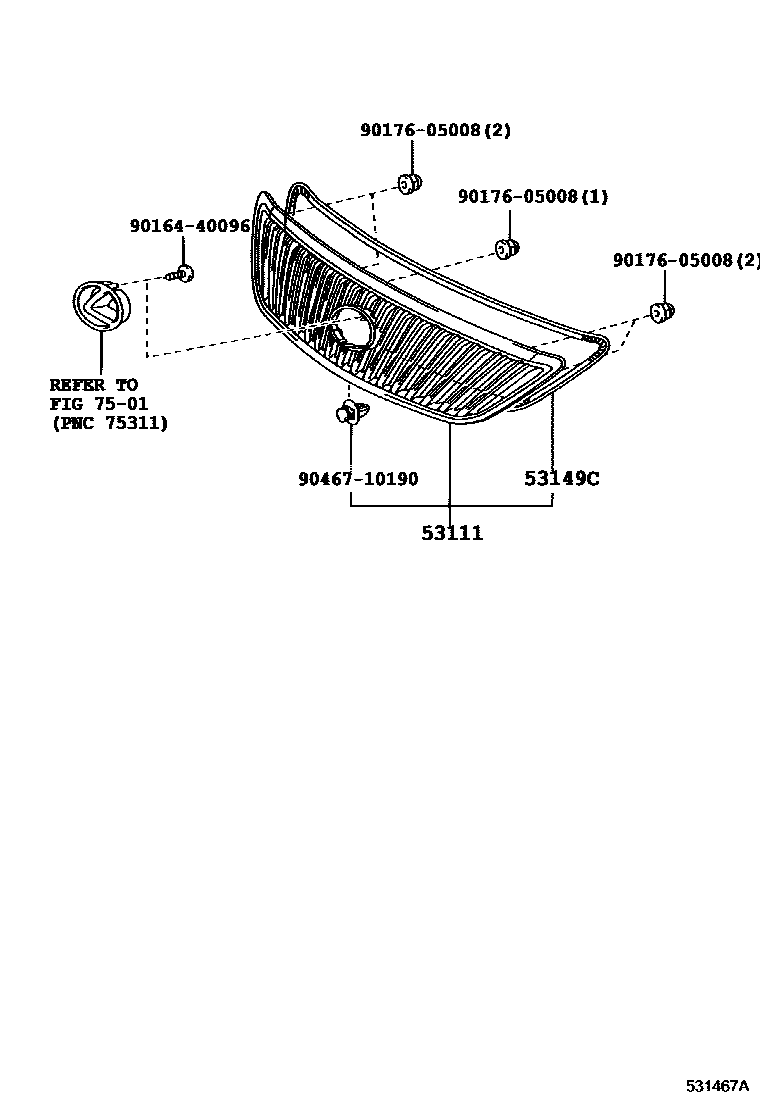

RADIATOR GRILLE

53111GRILLE, RADIATOR

main53101-48070iMCU3#200302-200304

sub53101-48071

main53101-48071iMCU3#200304-200701

main53101-48200iGSU35200701-200812

sub53101-48150

sub53101-48201

53149CPROTECTOR, RADIATOR GRILLE, NO.2

main53149-48010iMCU3#200302-200607

sub53149-48050

main53149-48040iGSU35200701-200812

main53149-48050iGSU35200608-200701

7501

9016440096

main90164-40096

9017605008

main90176-05008

9046710190

main90467-10190

6 parts on this diagram · 1 diagram in section
