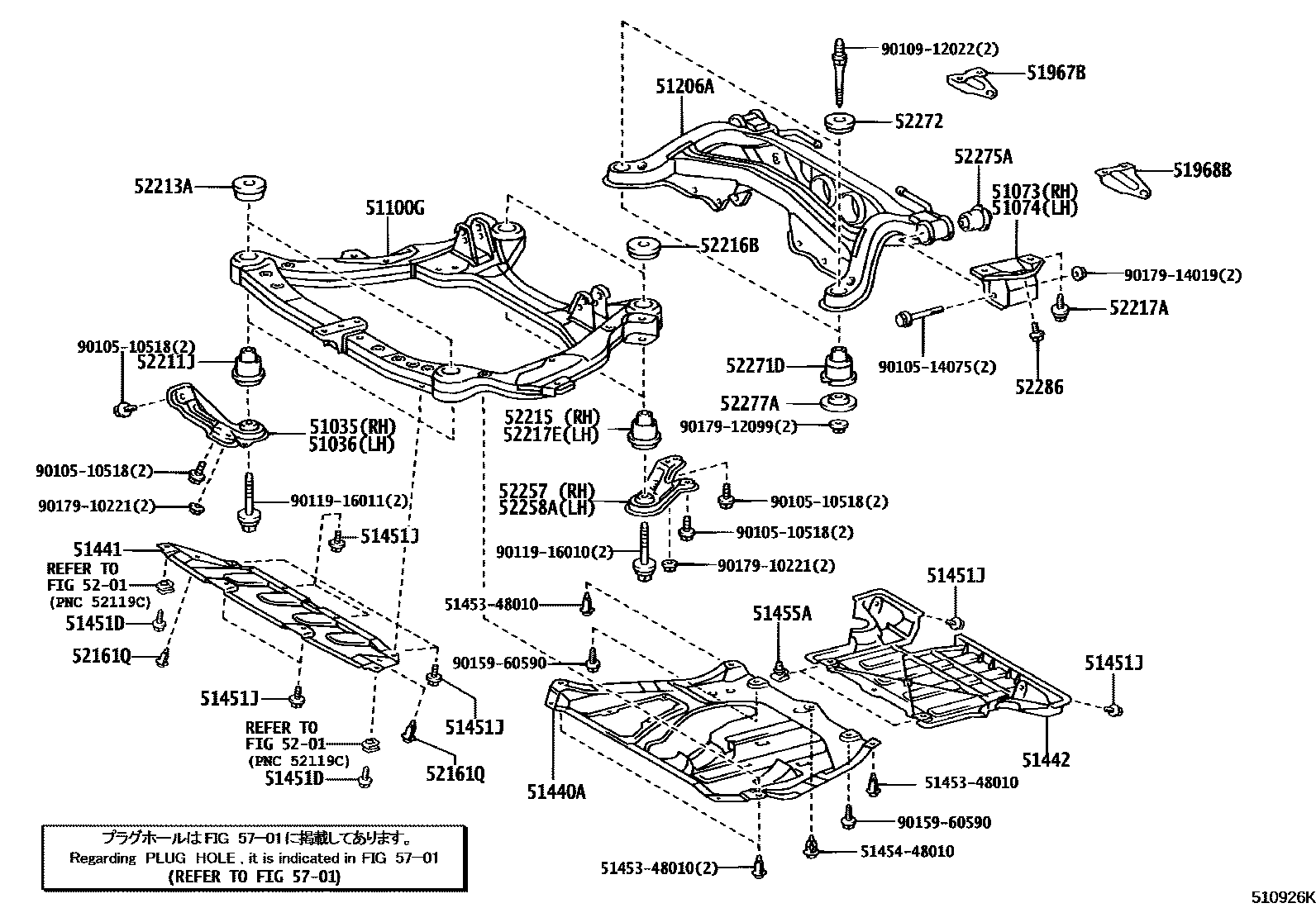

SUSPENSION CROSSMEMBER & UNDER COVER

0001 1 0002 1

51035PLATE SUB-ASSY, FRAME SIDE RAIL, RH

main51035-48020iMCU3#200302-200601

sub51035-48021

51036PLATE SUB-ASSY, FRAME SIDE RAIL, LH

main51036-48020iMCU3#200302-200601

sub51036-48021

51073BRACKET SUB-ASSY, REAR BODY MOUNTING, NO.2 RH

main51073-48010iMCU3#200302-200601

51074BRACKET SUB-ASSY, REAR BODY MOUNTING, NO.2 LH

main51074-48010iMCU3#200302-200601

51100GFRAME ASSY, FRONT

main51100-28031iMCU3#200302-200601

main51100-48070iGSU35200704-200806

main51100-48071iGSU35200807-200812

sub51100-48072

51206AMEMBER SUB-ASSY, REAR SUSPENSION

main51206-48040iMCU3#200302-200601

51440ACOVER ASSY, ENGINE UNDER

main51440-48010iMCU38..ARL200302-200601

main51440-48020iMCU3#..EUR,GCC200302-200601

main51440-48060iGSU35..ARL200601-200812

main51440-48070iGSU35..EUR,GCC200601-200812

sub51440-48071

main51440-48080iGSU35..LHD..EUR200701-200812

CHINA SPEC&TIRE & DISK WHEEL-225/65R17 ALUMI M+S

sub51440-48081

51441COVER, ENGINE UNDER, NO.1

main51441-48030iMCU3#200302-200601

51442COVER, ENGINE UNDER, NO.2

main51442-48010iMCU3#200302-200601

51451DSCREW, NO.1

main90159-60444×2iMCU3#200302-200601

51451JBOLT, NO.1

main90119-06699×12iMCU3#200302-200601

51455ASEAL, ENGINE UNDER COVER, NO.1

main51455-48010×2iMCU3#200302-200601

51967BHOOK, TRANSPORT, REAR RH

main51967-48020iMCU3#200302-200601

51968BHOOK, TRANSPORT, REAR LH

main51968-48010iMCU3#200302-200601

5201

52161QPIECE, FRONT BUMPER

main52161-16010×2iMCU3#200302-200601

sub52161-0K040

52211JCUSHION, FRONT SUSPENSION MEMBER BODY MOUNTING, FRONT

main52211-28020×2iMCU3#200302-200601

52213ASTOPPER, FRONT SUSPENSION MEMBER BODY MOUNTING, FRONT

main52213-28020×2iMCU3#200302-200601

52215CUSHION, FRONT SUSPENSION MEMBER BODY MOUNTING, REAR

main52215-28010iMCU3#200302-200601

52216BSTOPPER, FRONT SUSPENSION MEMBER BODY MOUNTING, REAR

main52216-28010×2iMCU3#200302-200601

52217ABOLT, BODY MOUNTING

main52217-48010×4iMCU3#200302-200601

52217ECUSHION, FRONT SUSPENSION MEMBER BODY MOUNTING, REAR LH

main52217-28010iMCU3#200302-200601

52257BRACE, FRONT SUSPENSION MEMBER, REAR RH

main51023-48030iMCU3#200302-200601

52258ABRACE, FRONT SUSPENSION MEMBER, REAR LH

main51024-48030iMCU3#200302-200601

main51024-48040iGSU35200705-200812

52271DCUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, FRONT

main52271-32010×2iMCU3#200302-200601

52272STOPPER, REAR SUSPENSION MEMBER, UPPER

main52272-32010×2iMCU3#200302-200601

52275ACUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, REAR

main52275-48010×2iMCU3#200302-200601

52277ARETAINER, REAR SUSPENSION MEMBER LOWER STOPPER, RH

main52277-32010×2iMCU3#200302-200601

52286BOLT, DIFFERENTIAL SUPPORT MEMBER MOUNTING, NO.2

main52286-48010×2iMCU3#200302-200601

5701

5145348010SILENCER, ENGINE UNDER COVER, FRONT

main51453-48010

5145448010CLIP

main51454-48010

9010510518

main90105-10518

9010514075

main90105-14075

9010912022

main90109-12022

9011916010

main90119-16010

9011916011

main90119-16011

9015960590

main90159-60590

9017910221

main90179-10221

9017912099

main90179-12099

9017914019

main90179-14019

41 parts on this diagram · 2 diagrams in section
