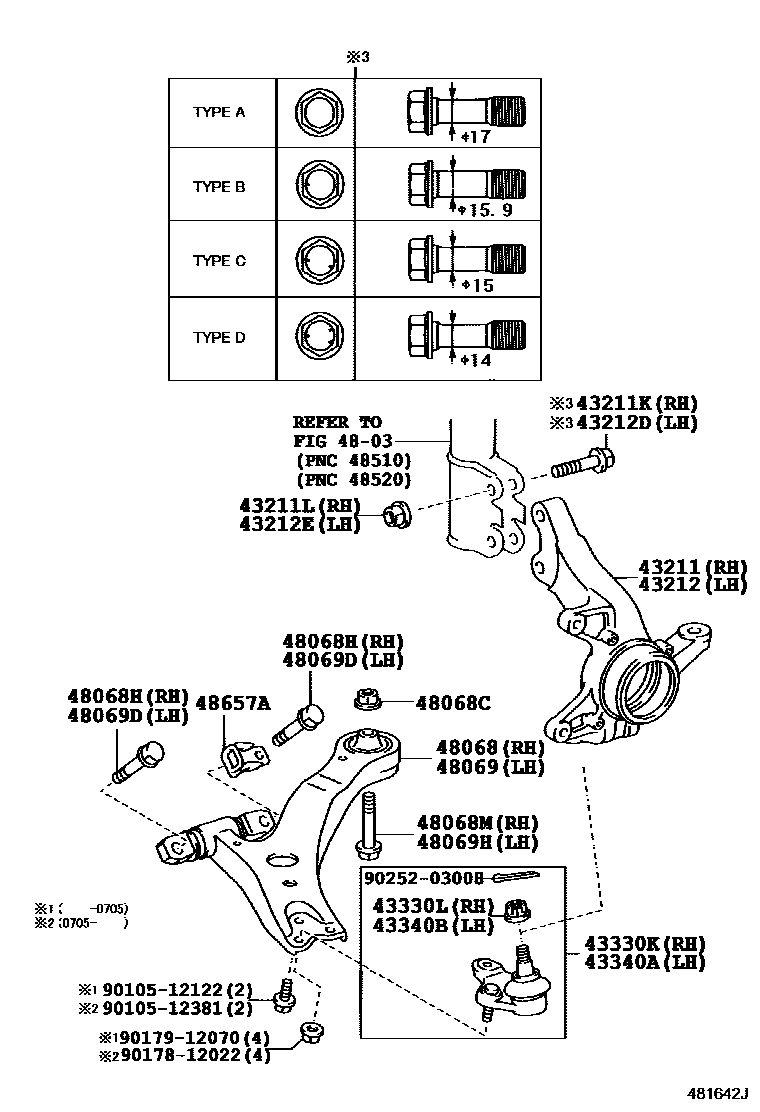

FRONT AXLE ARM & STEERING KNUCKLE

43211KNUCKLE, STEERING, RH

main43211-58020iMCU3#200302-200812

43211KBOLT (FOR STEERING KNUCKLE RH)

main90105-17012iGSU35200302-200812

OD=17,TYPE A:REFER ILLUST.

main90105-17013iMCU3#200302-200812

OD=15.9,TYPE B:REFER ILLUST.

main90105-17014iMCU3#200302-200812

OD=15,TYPE C:REFER ILLUST.

main90105-17015iGSU35200302-200812

OD=14,TYPE D:REFER ILLUST.

43211LNUT (FOR STEERING KNUCKLE RH)

main90178-17002iGSU35200302-200812

43212KNUCKLE, STEERING, LH

main43212-58020iGSU35200302-200812

43212DBOLT (FOR STEERING KNUCKLE LH)

main90105-17012iGSU35200302-200812

OD=17,TYPE A:REFER ILLUST.

main90105-17013iGSU35200302-200812

OD=15.9,TYPE B:REFER ILLUST.

main90105-17014iGSU35200302-200812

OD=15,TYPE C:REFER ILLUST.

main90105-17015iMCU3#200302-200812

OD=14,TYPE D:REFER ILLUST.

43212ENUT (FOR STEERING KNUCKLE LH)

main90178-17002iMCU3#200302-200812

43330KJOINT ASSY, LOWER BALL, FRONT RH

main43330-29405iMCU3#200302-200705

sub43330-29615

main43330-29615iGSU35200705-200812

43330LNUT, CASTLE (FOR FRONT LOWER BALL JOINT RH)

main90171-14003iMCU3#200302-200812

43340AJOINT ASSY, LOWER BALL, FRONT LH

main43340-29175iGSU35200302-200705

sub43340-29215

main43340-29215iGSU35200705-200812

43340BNUT, CASTLE (FOR FRONT LOWER BALL JOINT LH)

main90171-14003iMCU3#200302-200812

4803

48068ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH

main48068-48020iMCU3#200302-200812

sub48068-58010

main48068-48030iGSU35..EUR200302-200812

SUSPENSION-AIR SUSPENSION

48068CNUT(FOR FRONT SUSPENSION LOWER ARM)

main90179-14068iGSU35200302-200812

48068HBOLT(FOR FRONT SUSPENSION LOWER ARM NO.1 RH)

main90105-16082iGSU35200302-200812

48068MBOLT(FOR FRONT SUSPENSION LOWER ARM NO.2 RH)

main90119-14116iMCU3#200302-200601

sub90119-14142

main90119-14126iGSU35200601-200812

48069ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH

main48069-48020iMCU3#200302-200812

sub48069-58010

main48069-48030iMCU35200302-200812

SUSPENSION-AIR SUSPENSION

48069DBOLT(FOR FRONT SUSPENSION LOWER ARM NO.1 LH)

main90105-16082iMCU3#200302-200812

48069HBOLT(FOR FRONT SUSPENSION LOWER ARM NO.2 LH)

main90119-14116iMCU3#200302-200601

sub90119-14142

main90119-14126iGSU35200601-200812

48657ASTOPPER, FRONT LOWER ARM BUSH

main48657-28010iMCU3#200302-200812

9010512122

main90105-12122

9010512381

main90105-12381

9017812022

main90178-12022

9017912070

main90179-12070

9025203008

main90252-03008

24 parts on this diagram · 1 diagram in section
