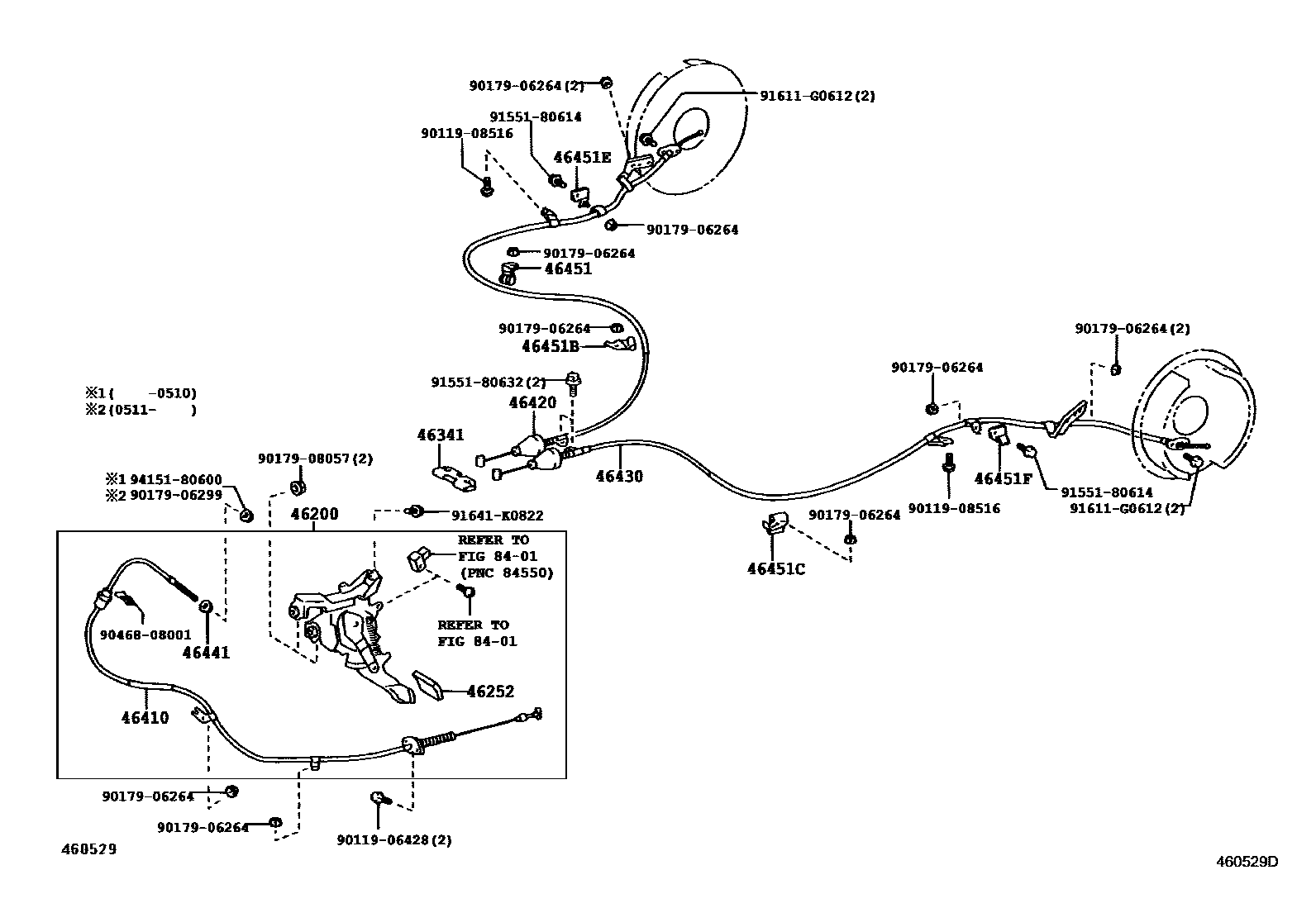

PARKING BRAKE & CABLE

0001 1 0002 1 0003 1

46200PEDAL ASSY, PARKING BRAKE CONTROL

main46200-48040iMCU3#..RHD200302-200812

main46200-48050iGSU35..LHD200302-200812

46252PAD, PARKING PEDAL

main46252-68010iGSU35200302-200812

46341EQUALIZER, PARKING BRAKE

main46341-48010iGSU35200302-200812

46410CABLE ASSY, PARKING BRAKE, NO.1

main46410-48040iMCU3#..RHD200302-200812

main46410-48050iGSU35..LHD200302-200812

46420CABLE ASSY, PARKING BRAKE, NO.2

main46420-48090iGSU35200302-200710

sub46420-48170

main46420-48170iGSU35200711-200812

sub46420-48171

46430CABLE ASSY, PARKING BRAKE, NO.3

main46430-48090iGSU35200302-200710

sub46430-48170

main46430-48170iGSU35200711-200812

sub46430-48171

46441NUT, WIRE ADJUSTING, NO.1

main46441-12010iMCU3#200302-200812

46451BRACKET, CABLE SUPPORT

main46451-48050iGSU35200302-200812

46451BBRACKET, PARKING BRAKE CABLE SUPPORT

main46451-48060iGSU35200302-200812

46451CBRACKET, PARKING BRAKE CABLE SUPPORT, NO.1

main46451-48070iMCU3#200302-200812

46451EBRACKET, CABLE GUIDE SUPPORT, NO.1

main46451-48080iMCU3#200302-200812

46451FBRACKET, CABLE SUPPORT

main46451-48090iGSU35200302-200812

8401

9011906428

main90119-06428

9011908516

main90119-08516

9017906264

main90179-06264

9017906299

main90179-06299

9017908057

main90179-08057

9046808001

main90468-08001

9155180614

main91551-80614

9155180632

main91551-80632

91611G0612

main91611-G0612

91641K0822

main91641-K0822

9415180600

main94151-80600

24 parts on this diagram · 3 diagrams in section
