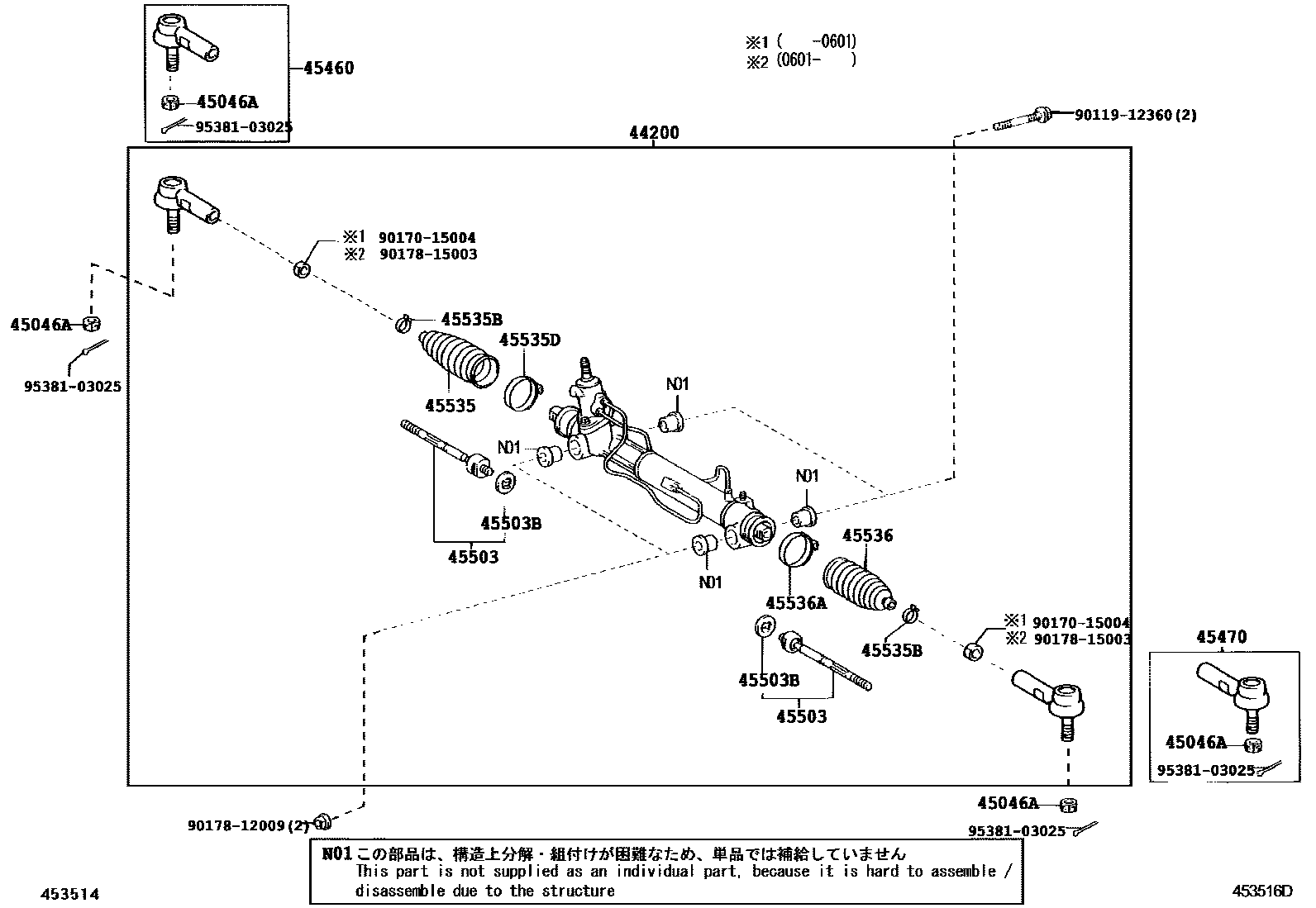

FRONT STEERING GEAR & LINK

0001 1 0002 1 0003 1 0004 1

44200LINK ASSY, POWER STEERING

main44200-48080iMCU3#..RHD200302-200601

main44200-48090iMCU3#..LHD200302-200601

sub44250-48090

sub45460-29435

sub90170-15004

main44200-48091iGSU35..LHD200601-200808

sub44200-48180

main44200-48150iGSU35..RHD200601-200812

sub44250-48110

sub45460-49075

sub90178-15003

main44200-48180iGSU35..LHD200809-200812

sub44250-48120

sub45460-49075

sub90178-15003

45046ANUT, CASTLE(FOR TIE ROD END)

main90171-12028iMCU3#200302-200812

45460ROD ASSY, TIE, RH

main45460-29435iMCU3#..RHD200302-200705

main45460-49075iGSU35200706-200812

45470ROD ASSY, TIE, LH

main45460-29435iMCU3#..RHD200302-200705

main45460-49075iGSU35200706-200812

45503END SUB-ASSY, STEERING RACK

main45503-49125iGSU35200302-200812

45503BWASHER, CLAW(FOR STEERING RACK END)

main90214-14007iMCU3#200302-200812

OD=38

45535BOOT, STEERING RACK, NO.1

main45535-08010iMCU3#200302-200308

(L)

main45535-0E010iGSU35200308-200812

(L)

main45535-48020iMCU3#200302-200812

(J)

45535BCLIP(FOR STEERING RACK BOOT)

main90080-46153iMCU3#200302-200812

(L)

main90467-19017iMCU3#200302-200601

sub90467-19021

main90467-19021iGSU35200601-200812

(J)

45535DCLAMP(FOR STEERING RACK BOOT NO.1)

main90460-60007iMCU3#200302-200812

45536BOOT, STEERING RACK, NO.2

main45535-08010iMCU3#200302-200308

(L)

main45535-0E010iGSU35200308-200812

(L)

main45535-48020iGSU35200302-200812

(J)

45536ACLAMP(FOR STEERING RACK BOOT NO.2)

main90460-60007iMCU3#200302-200812

9011912360

main90119-12360

9017015004

main90170-15004

9017812009

main90178-12009

9017815003

main90178-15003

9538103025

main95381-03025

16 parts on this diagram · 4 diagrams in section
