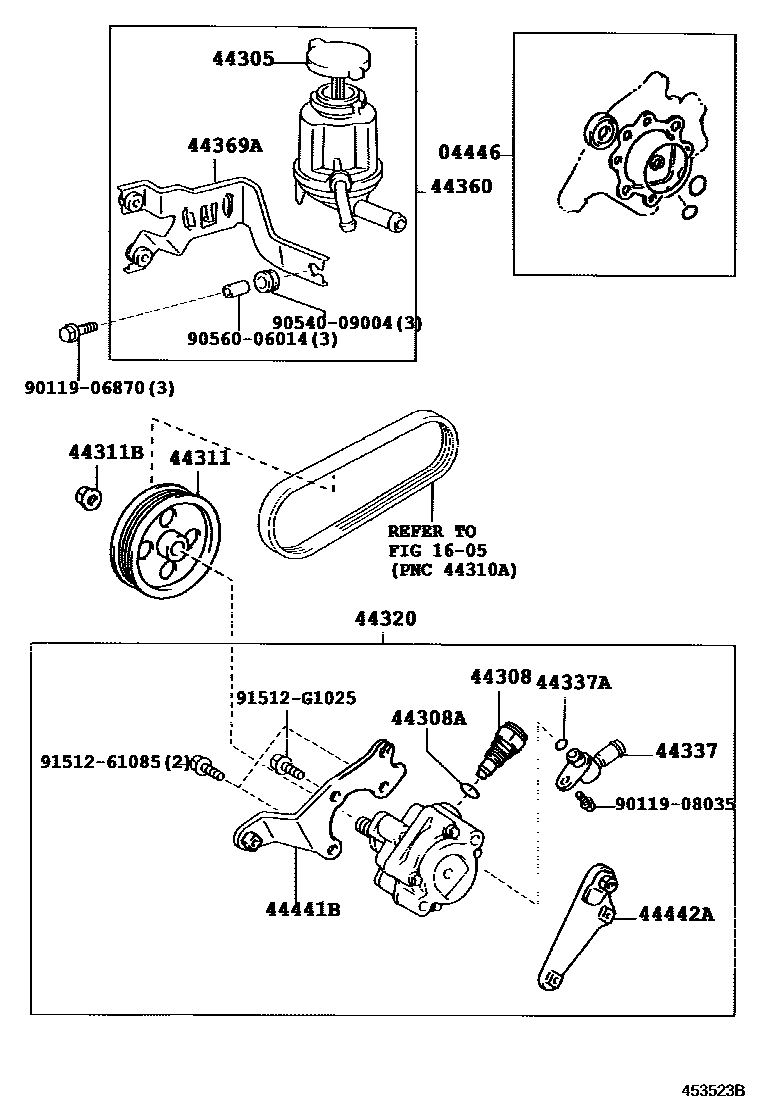

VANE PUMP & RESERVOIR (POWER STEERING)

0001 1 0002 1

04446GASKET KIT, POWER STEERING PUMP

main04446-32050iGSU35¥970200601-200812

main04446-53030iMCU3#¥1,360200302-200601

1605

44305CAP SUB-ASSY, VANE PUMP OIL RESERVOIR

main44305-28030iMCU3#¥1,590200302-200801

sub44305-28060¥1,590

main44305-28060iGSU35¥1,590200802-200812

sub44305-28061¥1,090

44308UNION SUB-ASSY, PRESSURE PORT

main44308-32150iMCU3#¥1,690200302-200601

44308ARING, O(FOR PRESSURE PORT UNION)

main90301-19018iMCU3#¥240200302-200601

44311PULLEY, VANE PUMP

main44311-28110iMCU3#¥6,700200302-200601

44311BNUT(FOR VANE PUMP PULLEY)

main90178-12003iMCU3#¥160200302-200601

44320PUMP ASSY, VANE

main44320-48040iMCU3#¥81,700200302-200601

44337UNION, POWER STEERING SUCTION PORT

main44337-48020iMCU3#¥1,870200302-200601

main44337-48030iGSU35¥1,870200601-200812

44337ARING, O(FOR POWER STEERING SUCTION PORT)

main90301-11016iMCU3#¥140200302-200601

main90301-11020iGSU35¥140200601-200812

44360RESERVOIR ASSY, VANE PUMP OIL

main44360-48040iMCU3#¥10,200200302-200812

44369ABRACKET, OIL RESERVOIR, NO.1

main44369-48040iMCU3#¥2,620200302-200812

44441BBRACKET, PUMP, FRONT

main44441-28020iMCU3#¥1,330200302-200601

44442ABRACKET, VANE PUMP, REAR

main44442-33021iMCU3#¥1,070200302-200601

9011906870

main90119-06870¥90

9011908035

main90119-08035¥110

9054009004

main90540-09004¥160

9056006014

main90560-06014¥350

9151261085

main91512-61085¥310

91512G1025

main91512-G1025¥100

20 parts on this diagram · 2 diagrams in section
