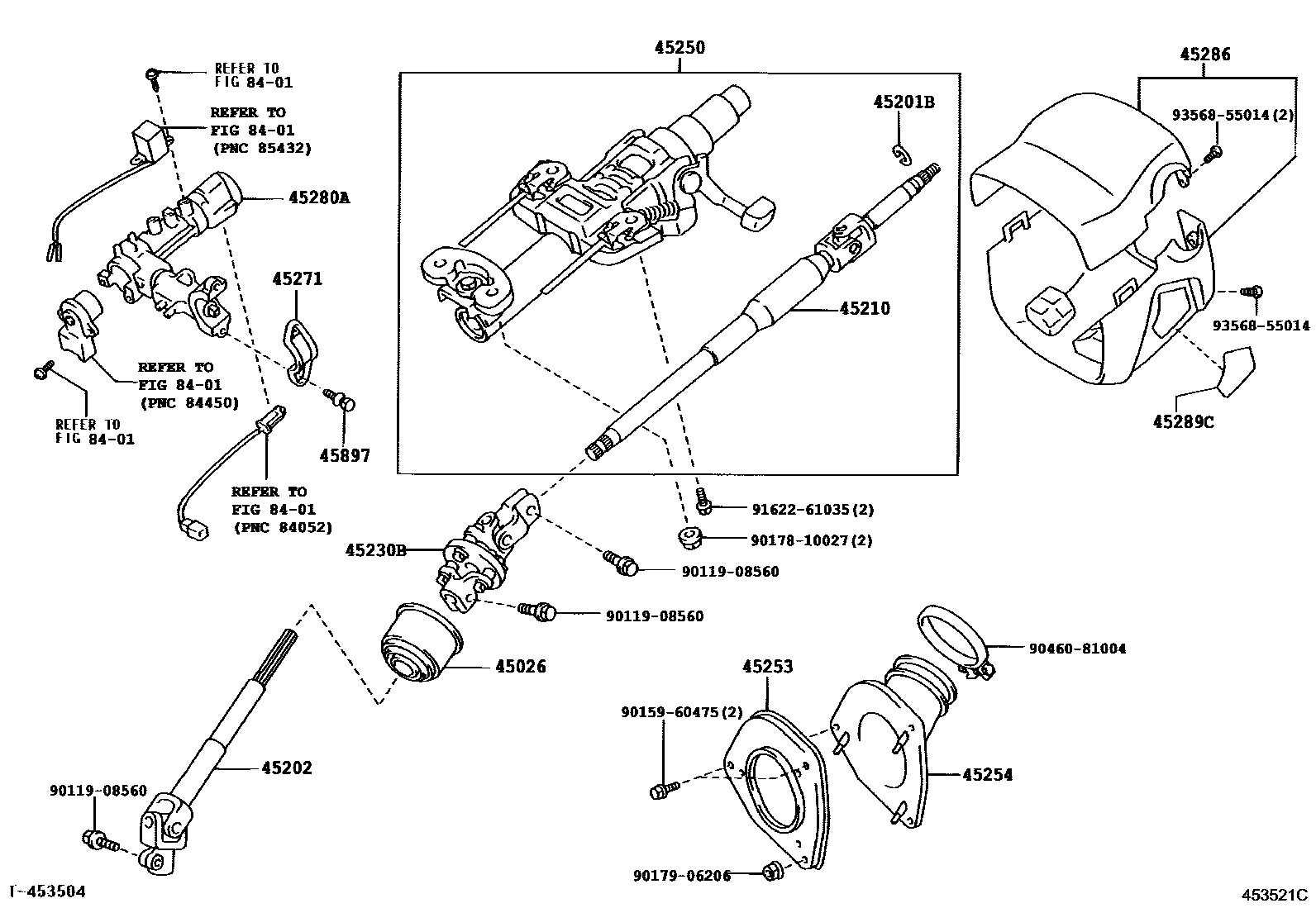

STEERING COLUMN & SHAFT
45026COVER SUB-ASSY, STEERING COLUMN HOLE, NO.2
45201BRING, SHAFT SNAP(FOR STEERING MAIN SHAFT)
T=1.20
45202SHAFT SUB-ASSY, STEERING INTERMEDIATE
45210SHAFT ASSY, STEERING MAIN
45230BJOINT ASSY, STEERING SHAFT UNIVERSAL
45250COLUMN ASSY, STEERING
45253COVER, STEERING COLUMN HOLE
45254SHIELD, STEERING COLUMN HOLE
45271CLAMP, STEERING COLUMN, UPPER
45280ABRACKET ASSY, STEERING COLUMN, UPPER
45286COVER, STEERING COLUMN
45289CCOVER, STEERING COLUMN, LWR NO.2
BLACK,TRIM1#,2#
SANDAL WOOD,TRIM0#
45897BOLT, STEERING LOCK SET
8401
9011908560
main90119-08560
9015960475
main90159-60475
9017810027
main90178-10027
9017906206
main90179-06206
9046081004
main90460-81004
9162261035
main91622-61035
9356855014
main93568-55014
21 parts on this diagram · 2 diagrams in section
