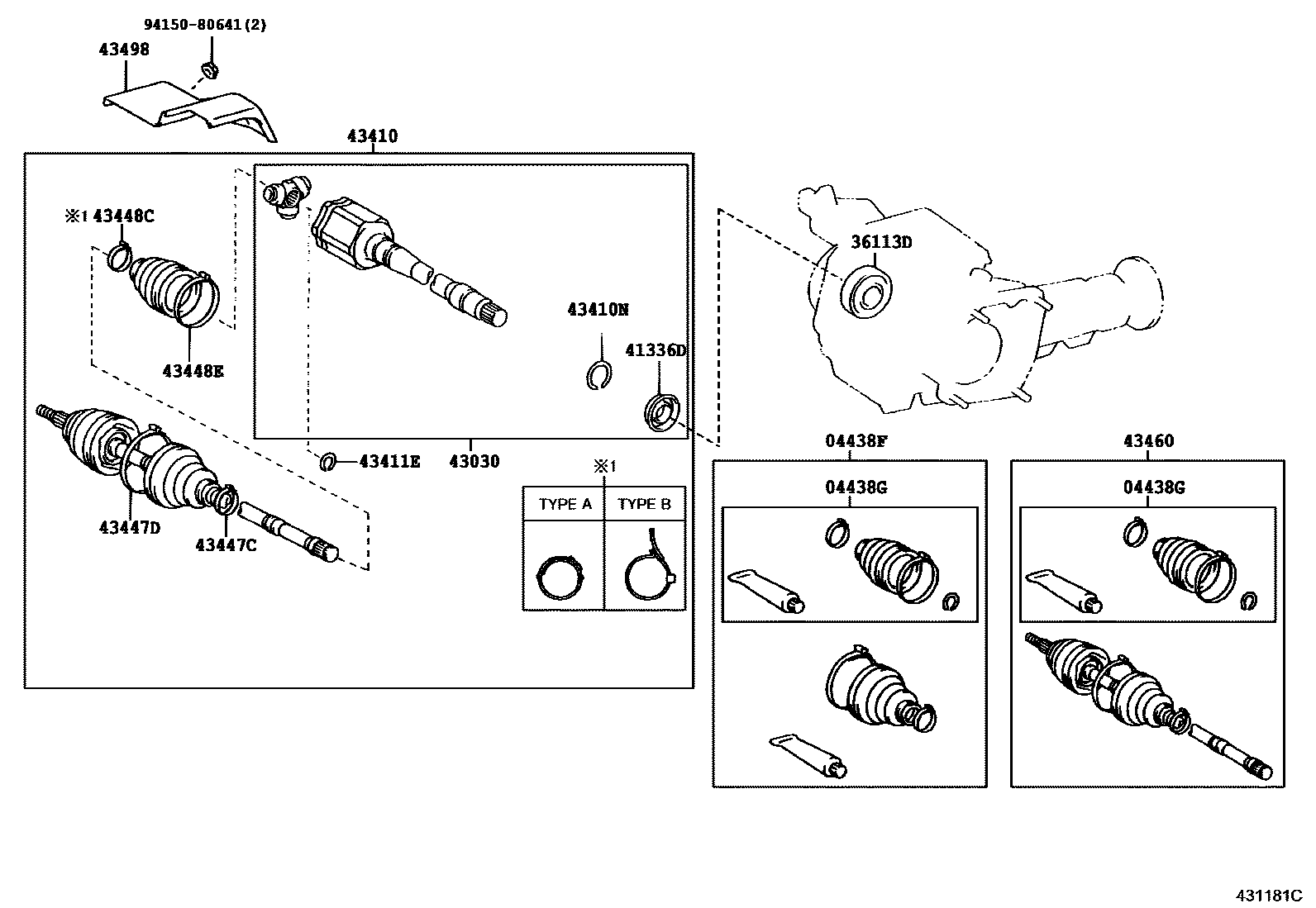

FRONT DRIVE SHAFT

0001 1RH 0002 1LH 0003 1RH 0004 1LH

04438FBOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, RH

main04428-58030iMCU35¥10,800200411-200601

sub04428-42070¥10,800

main04438-0E040iMCU38¥10,800200302-200812

main04438-28052iMCU35¥10,800200302-200411

sub04428-42070¥10,800

04438GBOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, RH

main04438-08030iGSU35¥6,700200302-200812

main04438-28041iMCU35¥6,700200302-200411

sub04438-42180¥5,500

main04438-58020iMCU35¥6,700200411-200601

sub04438-42180¥5,500

36113DSEAL, OIL (FOR TRANSFER CASE RH)

main90311-34021iMCU3#¥230200302-200812

41336DCOVER, FRONT DRIVE SHAFT DUST, RH

main41336-21010iMCU35¥430200302-200601

43030JOINT ASSY, FRONT DRIVE INBOARD, RH

main43030-0E010iGSU35¥41,800200302-200812

main43030-42021iMCU35¥32,700200302-200601

43410SHAFT ASSY, FRONT DRIVE, RH

main43410-0E011iGSU35¥82,800200302-200812

main43410-48050iMCU35¥82,800200302-200601

43410NRING, HOLE SNAP (FOR FRONT DRIVE SHAFT RH)

main43425-08060iMCU38¥70200302-200812

main90521-26004iMCU35¥100200302-200601

43411ERING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER RH)

main43425-28010iMCU35¥40200302-200601

main90080-52118iMCU38¥160200302-200812

43447CCLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)

main42345-04030iGSU35¥190200302-200812

main42345-20020iMCU35¥330200302-200601

sub42345-20040¥320

43447DCLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)

main42345-06080iMCU38¥440200302-200812

main42345-28010iMCU35¥320200302-200601

43448CCLAMP (FOR FRONT AXLE INBOARD JOINT BOOT RH)

main42345-07020iGSU35¥320200302-200812

main42345-42010iMCU35¥200200302-200601

TYPE A:REFER ILLUST.

main90949-01559iMCU35¥320200302-200601

TYPE B:REFER ILLUST.

43448ECLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)

main42345-07010iGSU35¥480200302-200812

main42345-12160iMCU35¥300200302-200601

43460SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, RH

main43460-09A40iMCU38¥46,700200302-200812

main43470-29626iMCU35¥49,500200302-200311

sub43470-29885¥52,400

main43470-29895iMCU35¥52,400200311-200601

43498INSULATOR, DRIVE SHAFT HEAT

main43498-48010iMCU3#¥1,960200302-200305

sub43498-48011¥1,970

main43498-48011iMCU3#¥1,970200305-200601

9415080641

main94150-80641¥110

15 parts on this diagram · 4 diagrams in section
