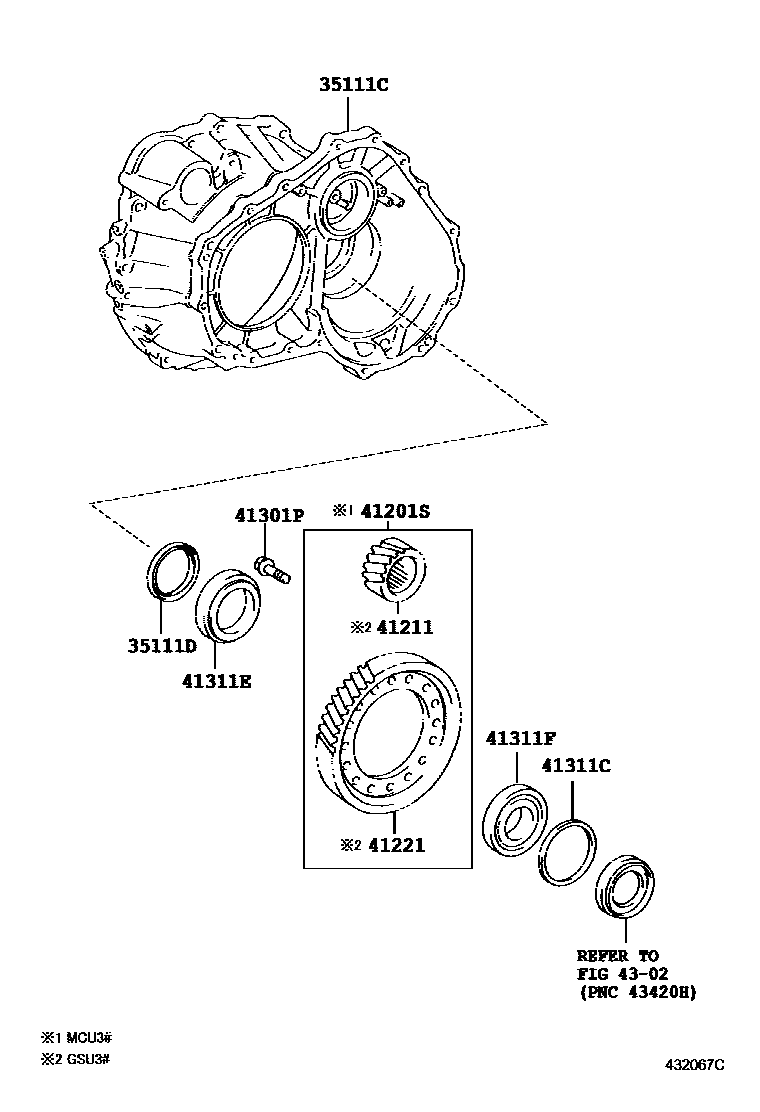

FRONT AXLE HOUSING & DIFFERENTIAL
41201SFINAL GEAR KIT, DIFFERENTIAL, FRONT
*FGR=80:23=3.478
41211PINION, DIFFERENTIAL DRIVE
41221GEAR, FRONT DIFFERENTIAL RING
41301PSCREW(FOR FRONT DIFFERENTIAL CASE)
41311CSHIM (FOR FRONT DIFFERENTIAL CASE REAR)
T=2.00,MARK 0
T=2.05,MARK 1
T=2.10,MARK 2
T=2.15,MARK 3
T=2.20,MARK 4
T=2.25,MARK 5
T=2.30,MARK 6
T=2.35,MARK 7
T=2.40,MARK 8
T=2.45,MARK 9
T=2.50,MARK A
T=2.55,MARK B
T=2.60,MARK C
T=2.65,MARK D
T=2.70,MARK E
T=2.75,MARK F
T=2.80,MARK G
T=2.85,MARK H
T=2.025,MARK J
T=2.075,MARK K
T=2.125,MARK L
T=2.175,MARK M
T=2.225,MARK N
T=2.275,MARK P
T=2.325,MARK Q
T=2.375,MARK R
T=2.425,MARK S
T=2.475,MARK T
T=2.525,MARK U
T=2.575,MARK V
T=2.625,MARK W
T=2.675,MARK X
T=2.725,MARK Y
T=2.775,MARK AA
T=2.825,MARK AB
41311EBEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE FRONT)
41311FBEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE REAR)
4302
10 parts on this diagram · 1 diagram in section
