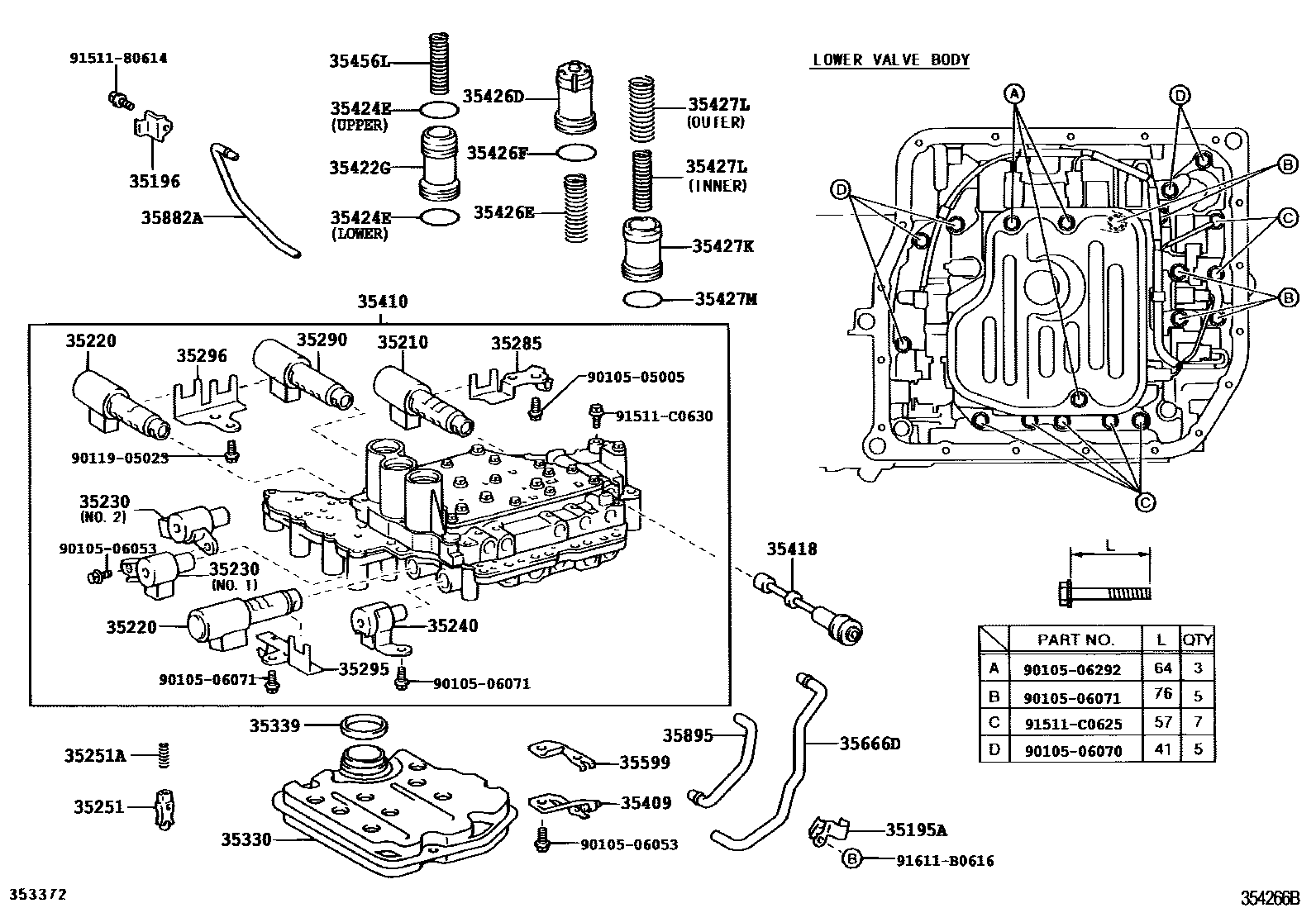

VALVE BODY & OIL STRAINER (ATM)
35195ACLAMP, TRANSAXLE APPLY TUBE, NO.1
35196CLAMP, TRANSAXLE APPLY TUBE, NO.2
35210SOLENOID ASSY, CLUTCH CONTROL, NO.1
35220SOLENOID ASSY, CLUTCH CONTROL, NO.2
35230SOLENOID ASSY, TRANSMISSION 3WAY, NO.2
NO.1
NO.2
35240SOLENOID ASSY, AUTOMATIC TRANSMISSION 3WAY
35251BODY, CHECK BALL
35251ASPRING, COMPRESSION (FOR CHECK BALL BODY)
35285PLATE, SOLENOID LOCK
35290SOLENOID ASSY, LINE PRESSURE CONTROL
35295PLATE, SOLENOID LOCK, NO.2
35296PLATE, SOLENOID LOCK, NO.3
35330STRAINER ASSY, VALVE BODY OIL
35339GASKET, OIL STRAINER
YELLOW PAINTED
35409SPRING SUB-ASSY, MANUAL DETENT
35418VALVE, MANUAL
35422GPISTON, REVERSE CLUTCH ACCUMULATOR
35424ERING, O (FOR C-1 ACCUMULATOR PISTON)
UPPER
LOWER
35426DPISTON, C-3 ACCUMULATOR
35426ESPRING, COMPRESSION (FOR C-3 ACCUMULATOR PISTON)
35426FRING, O (FOR C-3 ACCUMULATOR PISTON)
35427KPISTON, B-3 ACCUMULATOR
35427LSPRING, COMPRESSION (FOR B-3 ACCUMULATOR PISTON)
INNER
OUTER
35427MRING, O (FOR B-3 ACCUMULATOR PISTON)
35456LSPRING, COMPRESSION (FOR C-2 CONTROL VALVE)
35599COVER, MANUAL DETENT SPRING
35666DTUBE, BRAKE APPLY
35882ATUBE, DIFFERENTIAL GEAR LUBE APPLY
35895TUBE, FRONT CLUTCH APPLY
9010505005
main90105-05005
9010506053
main90105-06053
9010506070
main90105-06070
9010506071
main90105-06071
9010506292
main90105-06292
9011905023
main90119-05023
9151180614
main91511-80614
91511C0625
main91511-C0625
91511C0630
main91511-C0630
91611B0616
main91611-B0616
40 parts on this diagram · 2 diagrams in section
