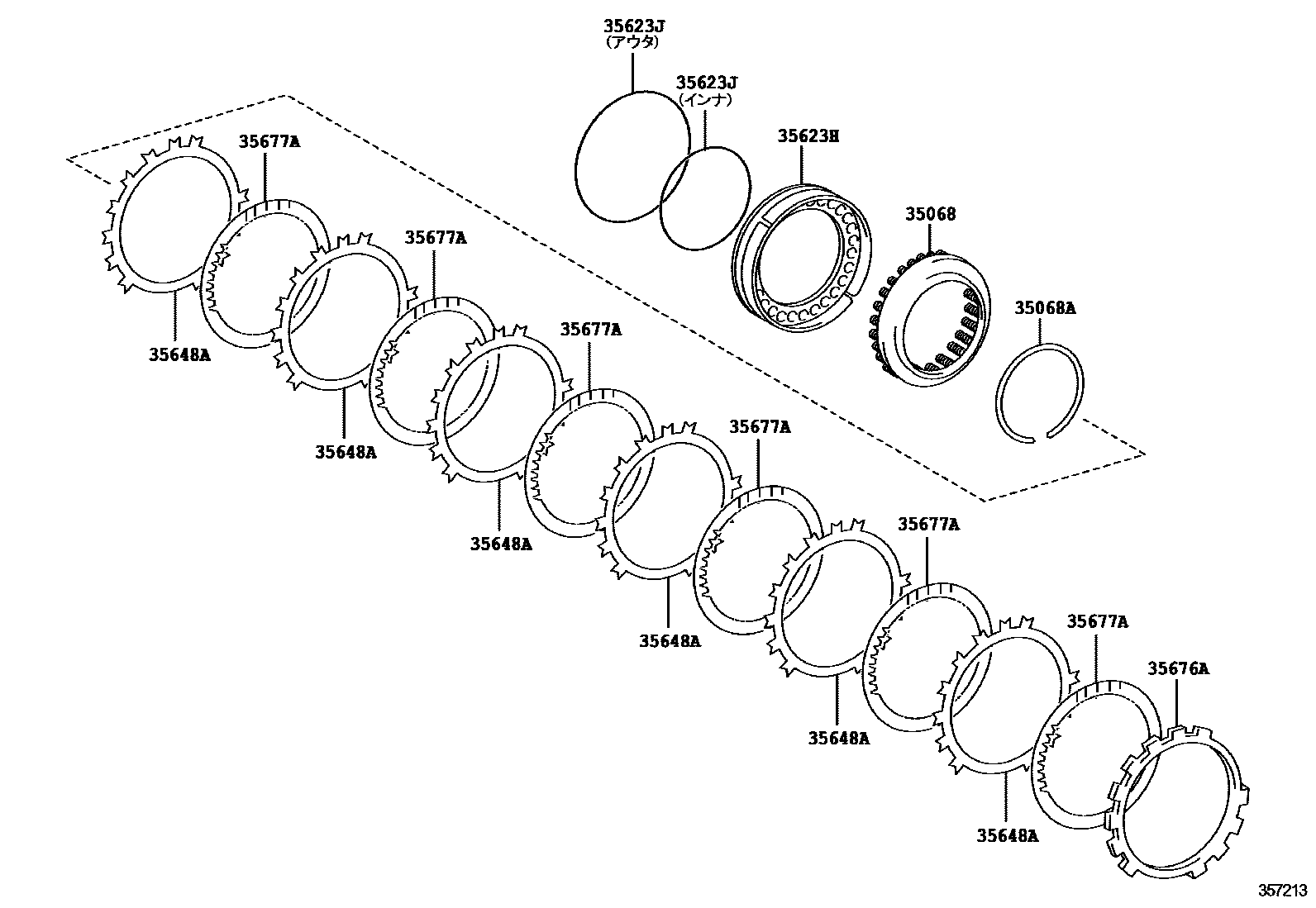

BRAKE NO.3, 1ST & REVERSE BRAKE (ATM)
35068SPRING SUB-ASSY, 1ST & REVERSE BRAKE RETURN
35068ARING, SHAFT SNAP (FOR 1ST & REVERSE BRAKE RETURN SPRING)
35623HPISTON, 1ST & REVERSE BRAKE
35623JRING, O (FOR 1ST & REVERSE BRAKE)
INNER
35648APLATE, CLUTCH (FOR 1ST & REVERSE BRAKE)
35676AFLANGE, BRAKE (FOR 1ST & REVERSE BRAKE)
T=1.8,MARK 1
T=1.9,MARK 2
T=2.0,MARK 3
T=2.1,MARK 4
T=2.2,MARK 5
T=2.3,MARK 6
T=2.4,MARK 7
T=2.5,MARK 8
35677ADISC, CLUTCH (FOR 1ST & REVERSE BRAKE)
7 parts on this diagram · 1 diagram in section
