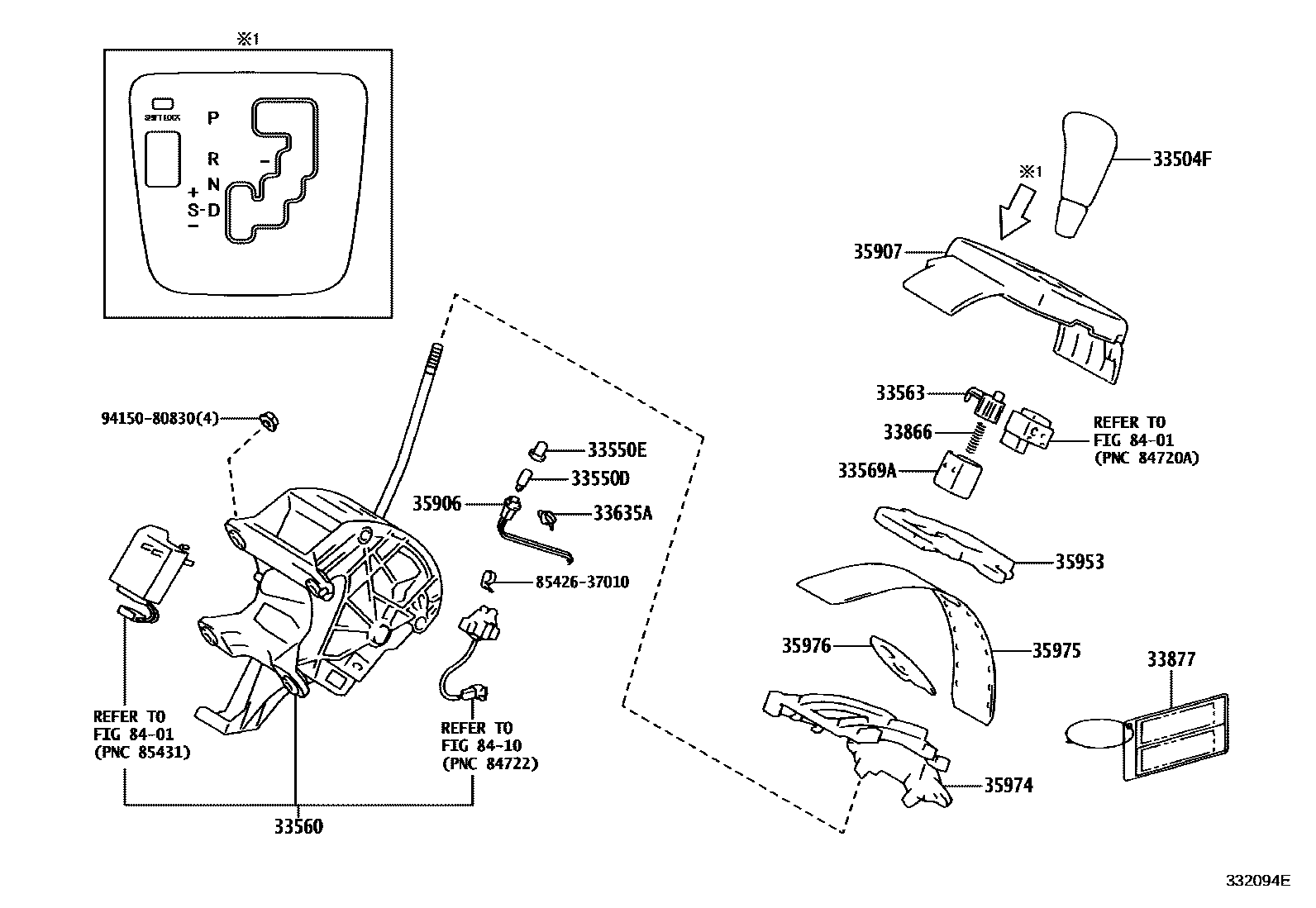

SHIFT LEVER & RETAINER

0001 1 0002 1 0003 1 0004 1

33504FKNOB SUB-ASSY, SHIFT LEVER

main33504-48010-C0iMCU3#200302-200812

BLACK,TRIM1#,2#

main33504-48010-E0iMCU3#200302-200812

SANDAL WOOD,TRIM0#

33550DBULB, POSITION INDICATOR LAMP

main90981-11014iMCU3#200302-200812

14V 1.4W

33550ECAP, POSITION INDICATOR LAMP

main90339-04055iGSU35200302-200812

sub35956-75010

33560UNIT ASSY, SHIFT LOCK CONTROL

main33560-48110iMCU3#..RHD200302-200812

main33560-48120iMCU3#..LHD200302-200812

33563BUTTON, SHIFT LOCK RELEASE

main33563-48050iMCU3#..RHD200302-200812

main33563-48060iMCU3#..LHD200302-200812

33569AGUIDE, SHIFT LOCK RELEASE BUTTON

main33569-48010iMCU3#..RHD200302-200812

main33569-48020iMCU3#..LHD200302-200812

33635AGUIDE, WIRE, NO.1 (FOR SHIFT LEVER)

main33635-48030iGSU35200302-200812

33866SPRING, SHIFT LOCK RELEASE

main33866-48010iMCU3#200302-200812

33877LABEL, SHIFT LOCK INFORMATION, NO.1

main33877-50030iMCU3#200302-200812

35906WIRE SUB-ASSY, INDICATOR LAMP

main35906-48020iMCU3#200302-200812

35907HOUSING SUB-ASSY, POSITION INDICATOR (FOR FLOOR SHIFT)

main35907-48010iGSU35..RHD200302-200812

main35907-48020iMCU35..LHD200302-200812

main35907-48030iGSU35..GCC200302-200812

35953GUIDE, POSITION INDICATOR LIGHT

main35953-48010iMCU3#..RHD200302-200812

main35953-48020iMCU3#..LHD200302-200812

35974HOUSING, POSITION INDICATOR, LOWER

main35974-48040iGSU35..RHD200302-200812

main35974-48050iMCU3#..LHD200302-200812

35975COVER, SLIDE (FOR POSITION INDICATOR)

main35975-48040iMCU3#200302-200812

35976COVER, SLIDE, NO.2 (FOR POSITION INDICATOR)

main35976-48020iMCU3#200302-200812

8401

8410

8542637010CLAMP, OVER DRIVE SOLENOID

main85426-37010

9415080830

main94150-80830

19 parts on this diagram · 4 diagrams in section
