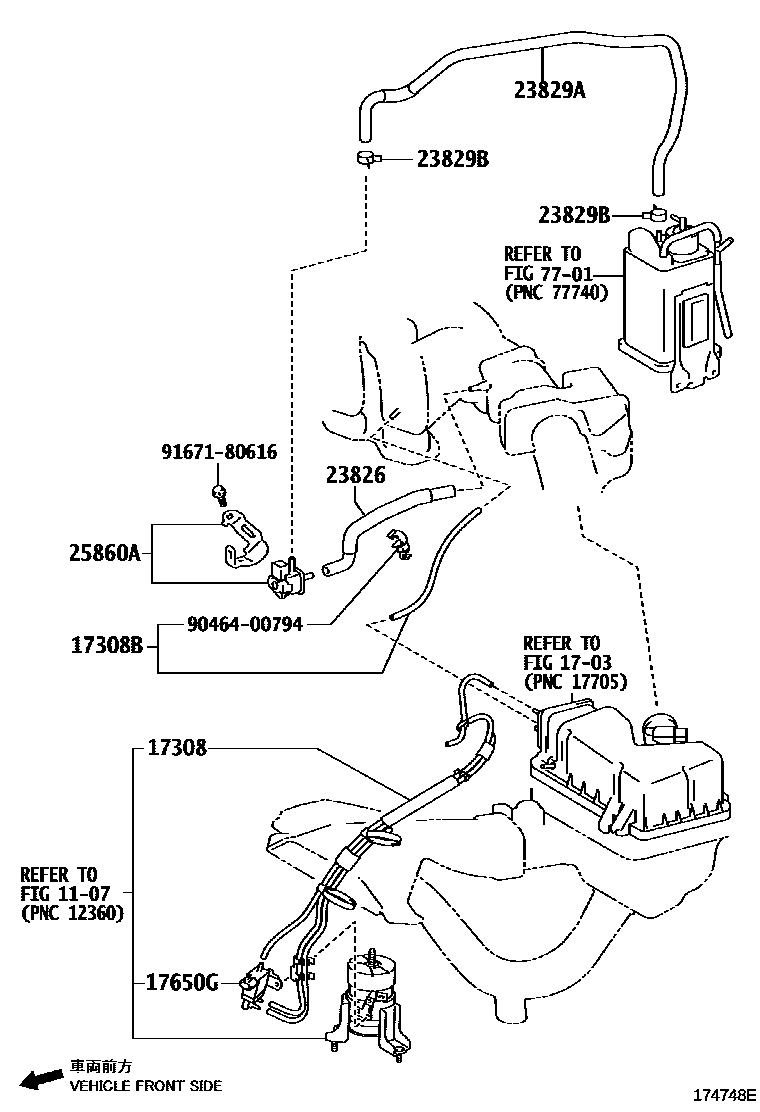

VACUUM PIPING

0001 1 0002 1 0003 1

1107

1703

17308HOSE SUB-ASSY, VACUUM(FOR IDLE-UP)

main17308-20210i2GRFE..GSU35200601-200812

17308BHOSE SUB-ASSY, VACUUM

main17308-20170i1MZFE,3MZFE..MCU3#200302-200601

NO.1

main17308-20210i1MZFE,3MZFE..MCU3#200302-200601

NO.2

main17308-31020i2GRFE..GSU35200601-200812

17650GVALVE, DUTY VACUUM SWITCHING

main90910-12204i1MZFE,3MZFE..MCU3#200302-200601

NO.2

main90910-12204i2GRFE..GSU35200601-200812

main90910-12241i1MZFE..MCU35200302-200601

NO.1

main90910-12259i3MZFE..MCU38200302-200601

NO.1 90910-12259

main90910-12272i3MZFE..MCU38200310-200601

NO.1 90910-12272

sub90910-12259

23826HOSE, FUEL VAPOR FEED, NO.1

main23826-31110i2GRFE..GSU35200601-200812

23829AHOSE, FUEL VAPOR FEED

main23829-20120i1MZFE,3MZFE..MCU3#200302

main23829-31020i2GRFE..GSU35200601-200812

23829BCLIP(FOR FUEL VAPOR FEED HOSE)

main90466-11003i1MZFE,3MZFE..MCU3#200302-200812

25860VALVE ASSY, VACUUM SWITCHING, NO.1

main25860-62010i3MZFE..MCU38200302

25860AVALVE, VACUUM SWITCHING, NO.1

main25860-31070i2GRFE..GSU35200601-200812

7701

9046400794

main90464-00794

9167180616

main91671-80616

13 parts on this diagram · 3 diagrams in section
