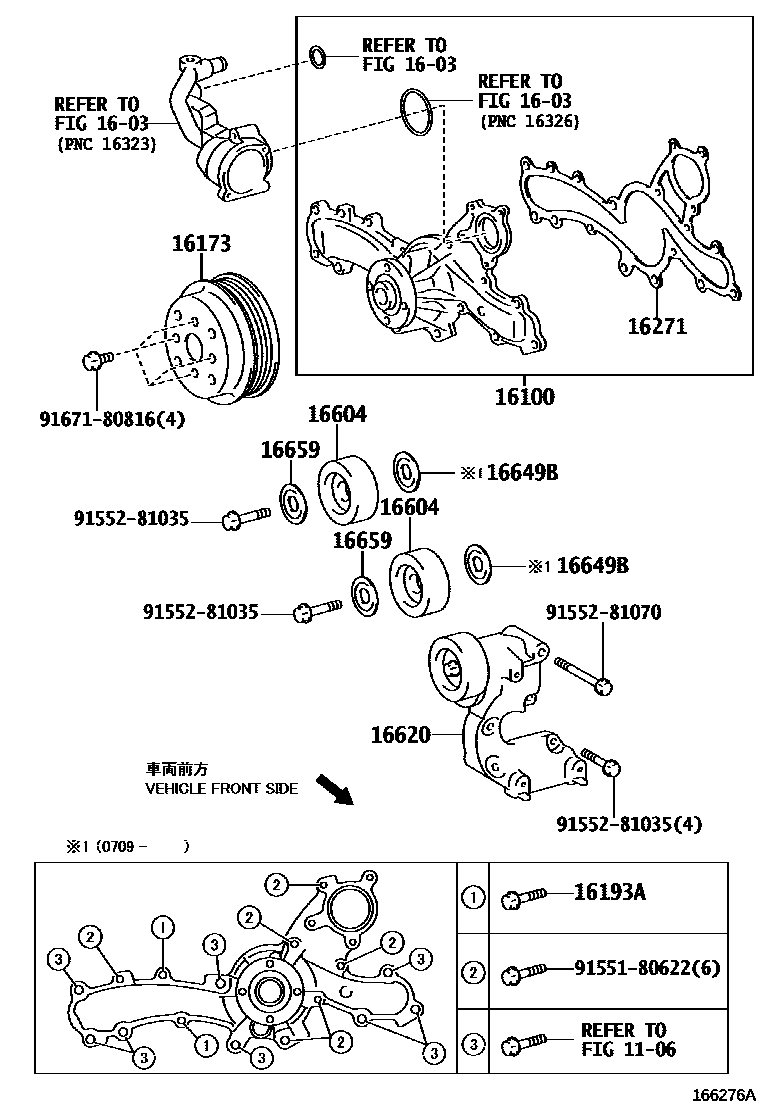

WATER PUMP

0001 1 0002 1

1106

1603

16100PUMP ASSY, ENGINE WATER

main16100-09070i1MZFE,3MZFE..MCU3#¥17,200200302-200312

(L)

main16100-29085i1MZFE,3MZFE..MCU3#¥14,900200302

(J)

main16100-39455i2GRFE..GSU35¥17,600200601-200812

sub16100-39456¥13,800

16173PULLEY, WATER PUMP

main16173-31010i2GRFE..GSU35¥3,300200601-200812

16193ABOLT(FOR WATER PUMP COVER)

main16193-31080i2GRFE..GSU35¥210200601-200812

16271GASKET, WATER PUMP

main16271-20020i1MZFE,3MZFE..MCU3#¥1,320200302

main16271-31030i2GRFE..GSU35¥1,360200601-200812

16604PULLEY SUB-ASSY, IDLER, NO.2

main16604-31010i2GRFE..GSU35¥5,600200601-200709

main16604-31020i2GRFE..GSU35¥4,600200709-200812

16620TENSIONER ASSY, V-RIBBED BELT

main16620-31040i2GRFE..GSU35¥16,700200601-200812

16649BPLATE, IDLER PULLEY COVER

main16649-31020i2GRFE..GSU35¥220200709-200812

16659PLATE, IDLER PULLEY COVER, NO.2

main16659-31011i2GRFE..GSU35¥220200601-200812

9155180622

main91551-80622¥60

9155281035

main91552-81035¥120

9155281070

main91552-81070¥160

9167180816

main91671-80816¥80

14 parts on this diagram · 2 diagrams in section
