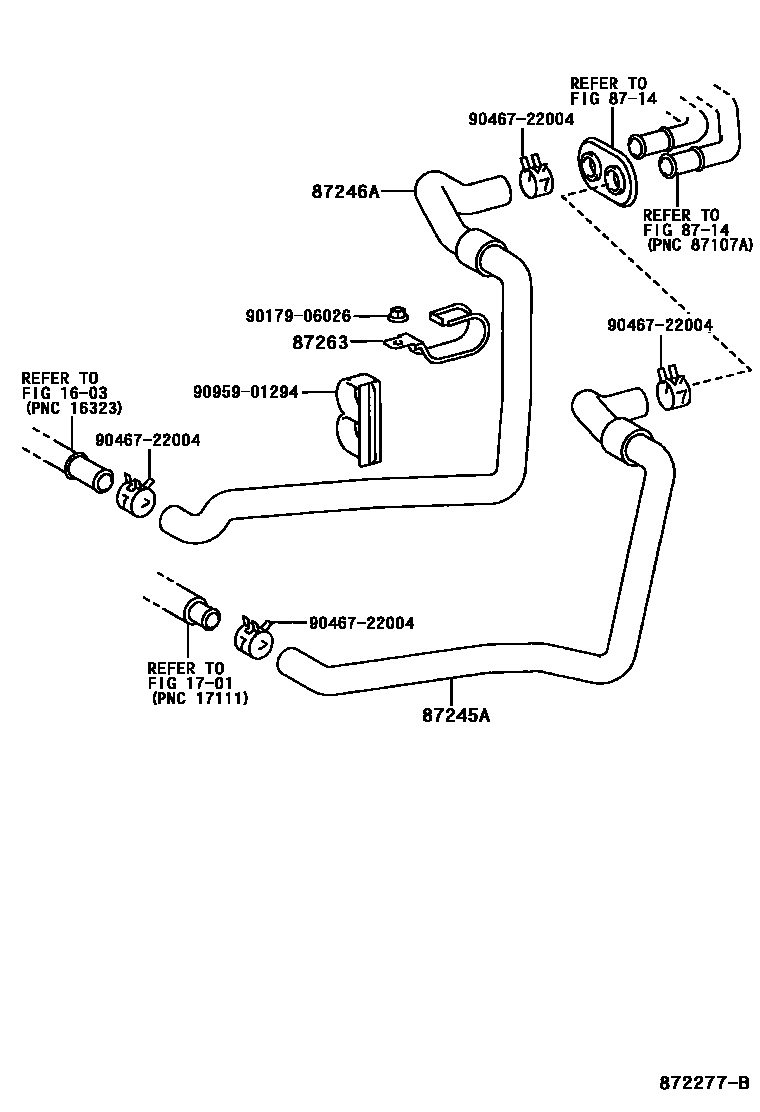

HEATING & AIR CONDITIONING - WATER PIPING

1603

1701

8714

87245AHOSE, HEATER WATER, INLET A

main87245-48060iMCU15200007

87246AHOSE, HEATER WATER, OUTLET A

main87245-48070iMCU15200007

87263BRACKET, HEATER WATER PIPE, NO.1

main87263-48010iMCU15200007

9017906026

main90179-06026

9046722004

main90467-22004

9095901294

main90959-01294

9 parts on this diagram · 1 diagram in section
