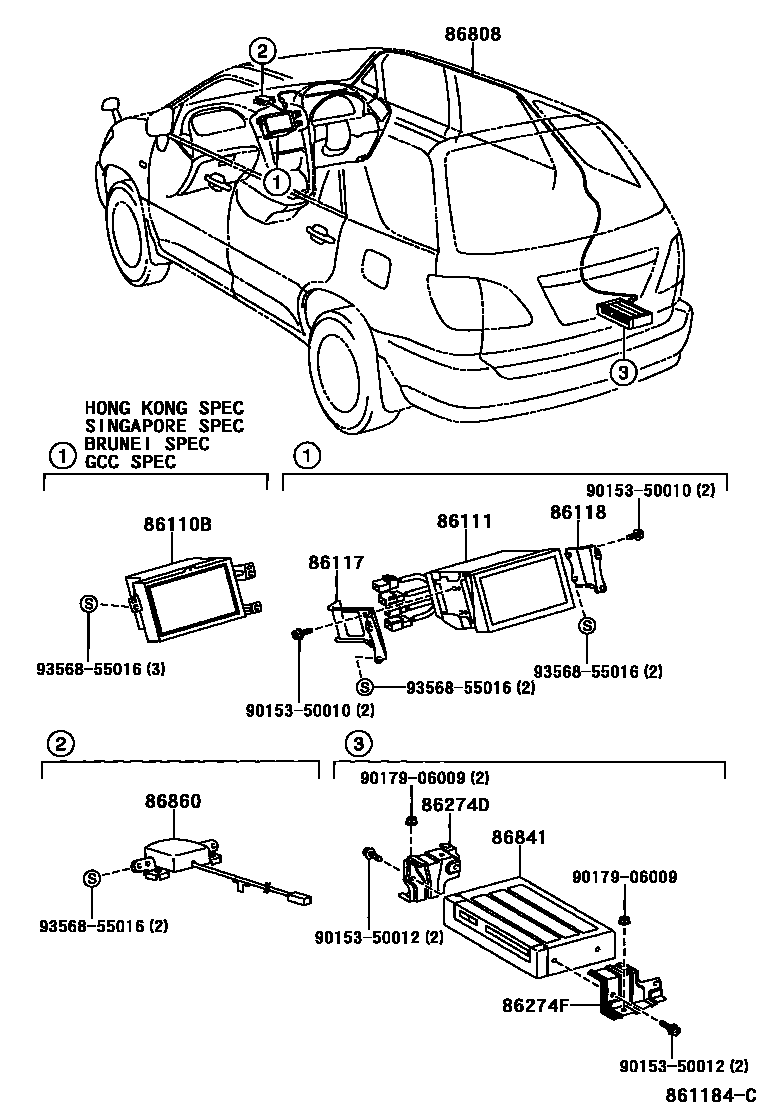

NAVIGATION & FRONT MONITOR DISPLAY
86110BMULTI-DISPLAY ASSY
FUJITSU TEN,HONG KONG OR SINGAPORE OR BRUNEI SPEC
FUJITSU TEN,GCC SPEC
86111MULTI-DISPLAY
FUJITSU TEN
86117BRACKET, MULTI-DISPLAY CONTROLLER, A
86118BRACKET, MULTI-DISPLAY CONTROLER, B
86274DBRACKET, DISC PLAYER
86274FBRACKET, DISC PLAYER, NO.2
86808CORD SUB-ASSY, NAVIGATION ANTENNA, NO.1
W(MOON ROOF)
86841COMPUTER, NAVIGATION
86860ANTENNA ASSY, NAVIGATION
9015350010
main90153-50010
9015350012
main90153-50012
9017906009
main90179-06009
9356855016
main93568-55016
13 parts on this diagram · 1 diagram in section
