ABS & VSC

86652ABUZZER ASSY, SKID CONTROL

main86652-51010iMCU15200007

88263ARELAY, SKID CONTROL

main88263-24020iMCU15200007

88263ERELAY, SKID CONTROL NO.2

main88263-24030iMCU15200007

89183ASENSOR, YAWRATE

main89183-50010iMCU15200007

89189BBRACKET, YAWRATE SENSOR

main89189-48010iMCU15200007

89245ASENSOR, STEERING

main89245-60010iMCU15200007

89246ADISC, SENSOR STEERING

main89246-50010iMCU15200007

89441ASENSOR, DECELERATION

main89441-30050iMCU15200007

89540COMPUTER ASSY, SKID CONTROL

main89540-48130iMCU15..RHD200007-200105

sub89540-48131

main89540-48131iMCU15..RHD200105

main89540-48140iMCU15..LHD200007-200105

sub89540-48141

main89540-48141iMCU15..LHD200105

main89540-48150iMCU15..RHD200007-200105

HONG KONG OR SINGAPORE OR BRUNEI SPEC

sub89540-48151

main89540-48151iMCU15..RHD200105

HONG KONG OR SINGAPORE OR BRUNEI SPEC

89542SENSOR, SPEED, FRONT RH

main89542-48010iMCU15200007

89543SENSOR, SPEED, FRONT LH

main89543-48010iMCU15200007

89545SENSOR, SPEED, REAR RH

main89545-48020iMCU15200007

89546SENSOR, SPEED, REAR LH

main89546-48020iMCU15200007

9017906070

main90179-06070

91611B0610

main91611-B0610

91611B0816

main91611-B0816

91621J0814

main91621-J0814

91626B0616

main91626-B0616

91631B0616

main91631-B0616

91651B0618

main91651-B0618

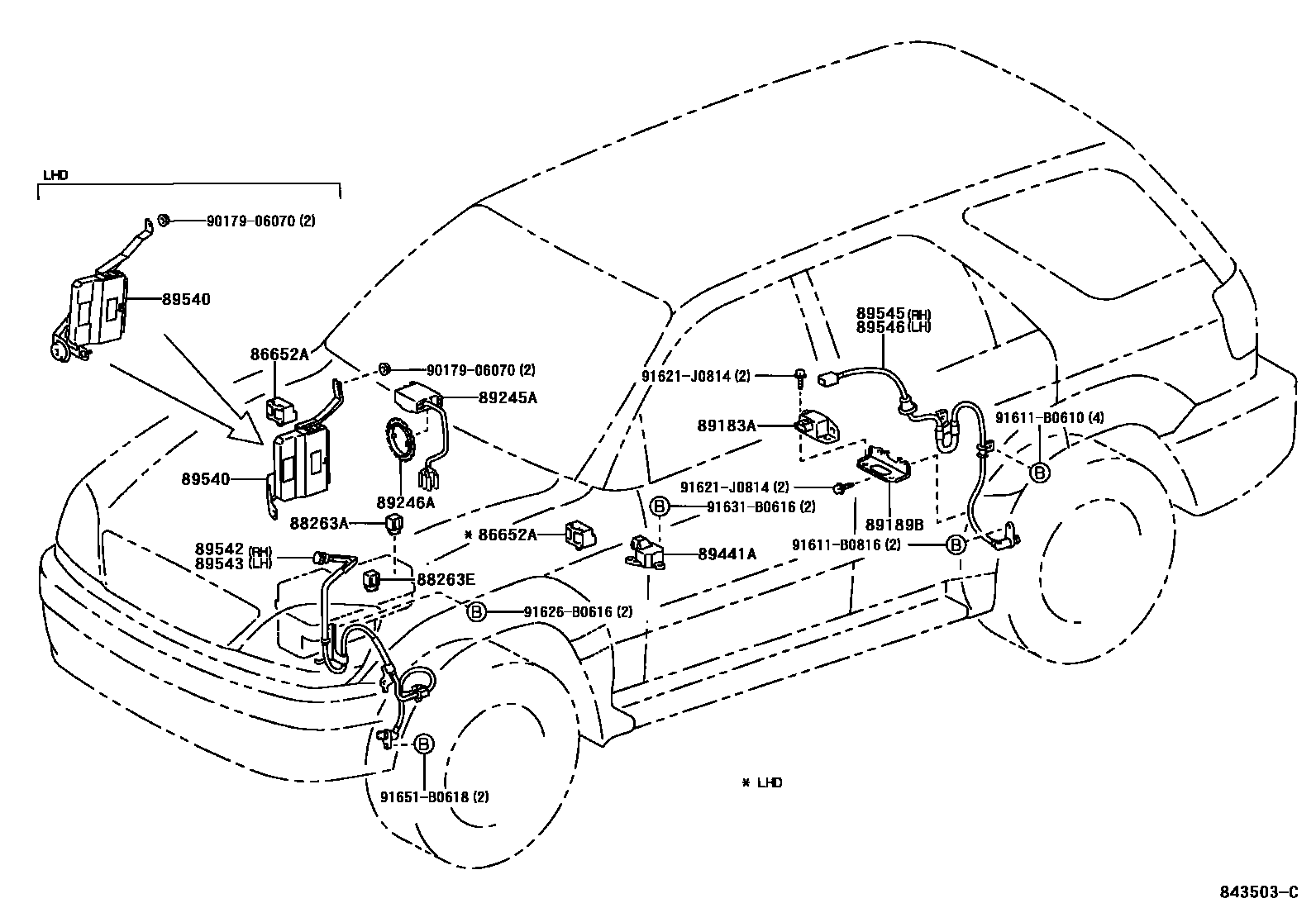

20 parts on this diagram · 1 diagram in section
