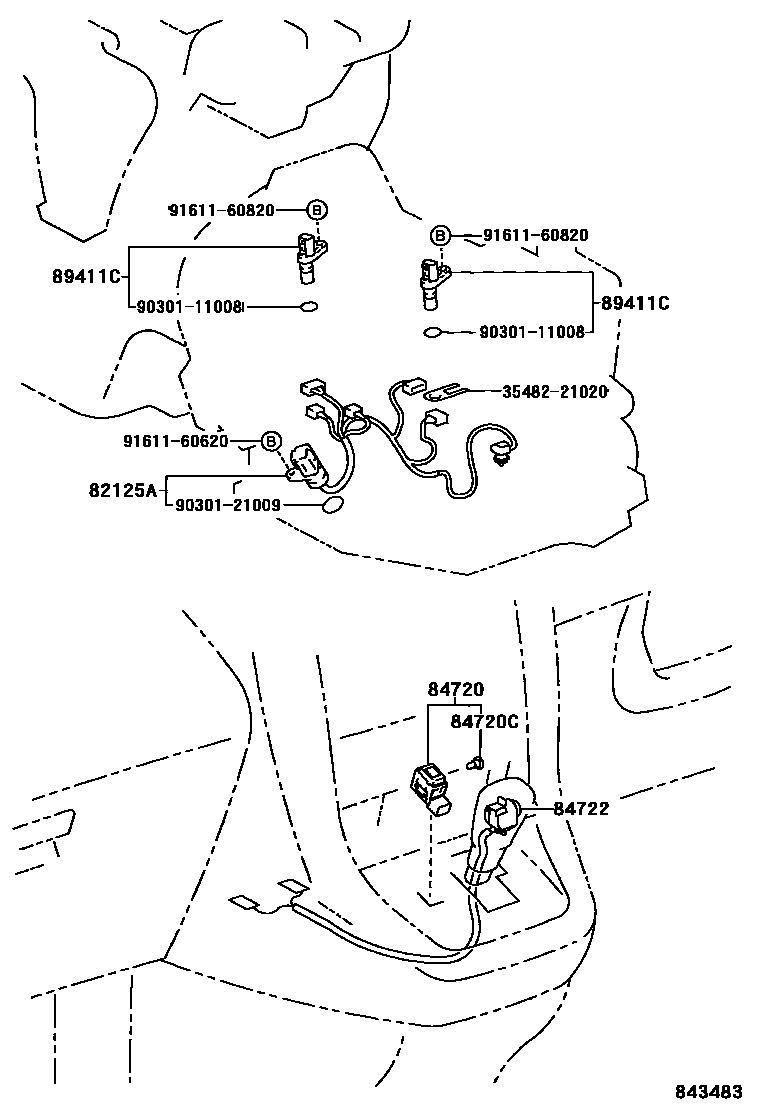

OVERDRIVE & ELECTRONIC CONTROLLED TRANSMISSION

0001 1 0002 1

82125AWIRE, TRANSMISSION

main82125-21030iMCU15200007-200111

sub82125-28180

main82125-28180iMCU15200111

84720SWITCH ASSY, PATTERN SELECT

main84720-48010iMCU15200007

84720CBULB(FOR PATTERN SELECT SWITCH)

main90010-01039iMCU15200007

14V0.91W,W(GREEN CAP

84722SWITCH, TRANSMISSION CONTROL

main84722-48030-C0iMCU15..LHD200007

BLACK,TRIM2#

sub84722-48030

main84722-48030-E0iMCU15..LHD200007

SANDAL WOOD,TRIM0#

sub84722-48030

main84722-48040-C0iMCU15..RHD200007

BLACK,TRIM2#

sub84722-48040

main84722-48040-E0iMCU15..RHD200007

SANDAL WOOD,TRIM0#

sub84722-48040

89411CSENSOR, SPEED

main89411-33010iMCU15200007

TOYOTA

sub89413-24010

main89413-24010iMCU15200007

AISIN SEIKI

3548221020VALVE, GOVERNOR

main35482-21020

9030111008

main90301-11008

9030121009

main90301-21009

9161160620

main91611-60620

9161160820

main91611-60820

10 parts on this diagram · 2 diagrams in section
