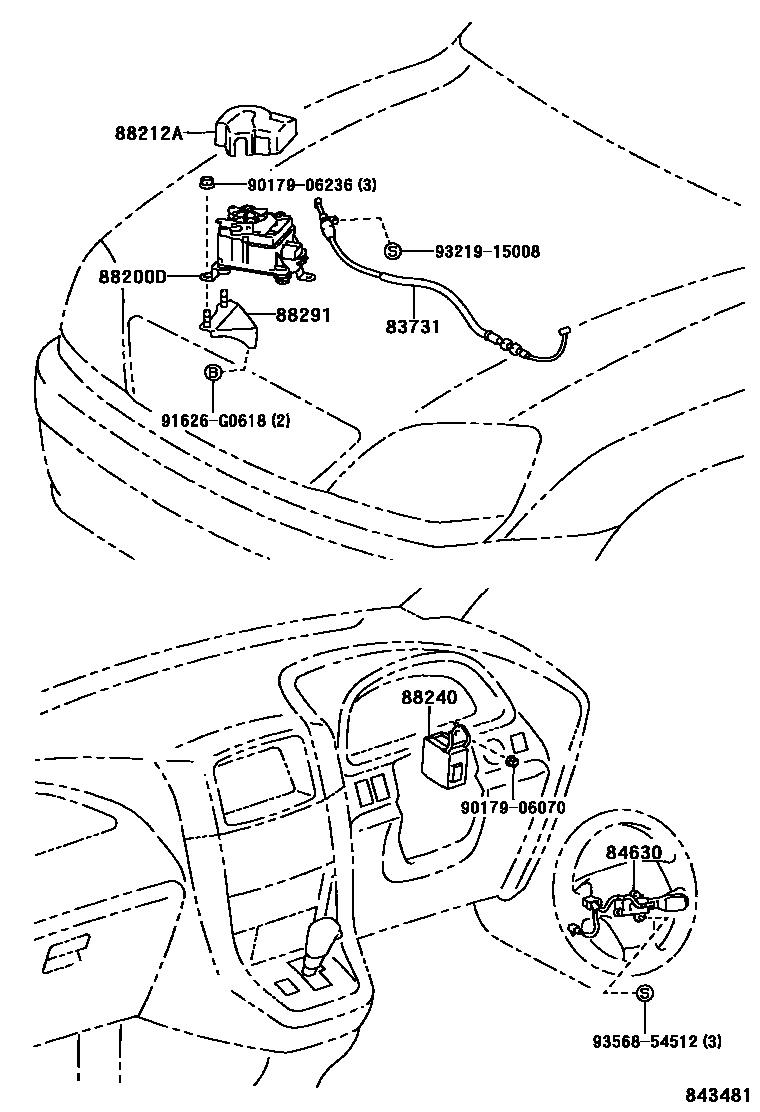

CRUISE CONTROL (AUTO DRIVE)

0001 1 0002 1

83731CABLE, CRUISE CONTROL

main83731-48010iMCU15200007

84630SWITCH ASSY, CRUISE CONTROL MAIN

main84630-30220iMCU15200007

sub84630-30221

88200DACTUATOR ASSY, CRUISE CONTROL

main88200-48010iMCU15200007

88212ACOVER, CRUISE CONTROL ACTUATOR

main88212-24050iMCU15200007

88240COMPUTER ASSY, CRUISE CONTROL

main88240-48020iMCU15..LHD200007

main88240-48030iMCU15..RHD200007

88291BRACKET, CRUISE CONTROL(AUTO DRIVE), NO.1

main88291-48010iMCU15200007

9017906070

main90179-06070

9017906236

main90179-06236

91626G0618

main91626-G0618

9321915008

main93219-15008

9356854512

main93568-54512

11 parts on this diagram · 2 diagrams in section
