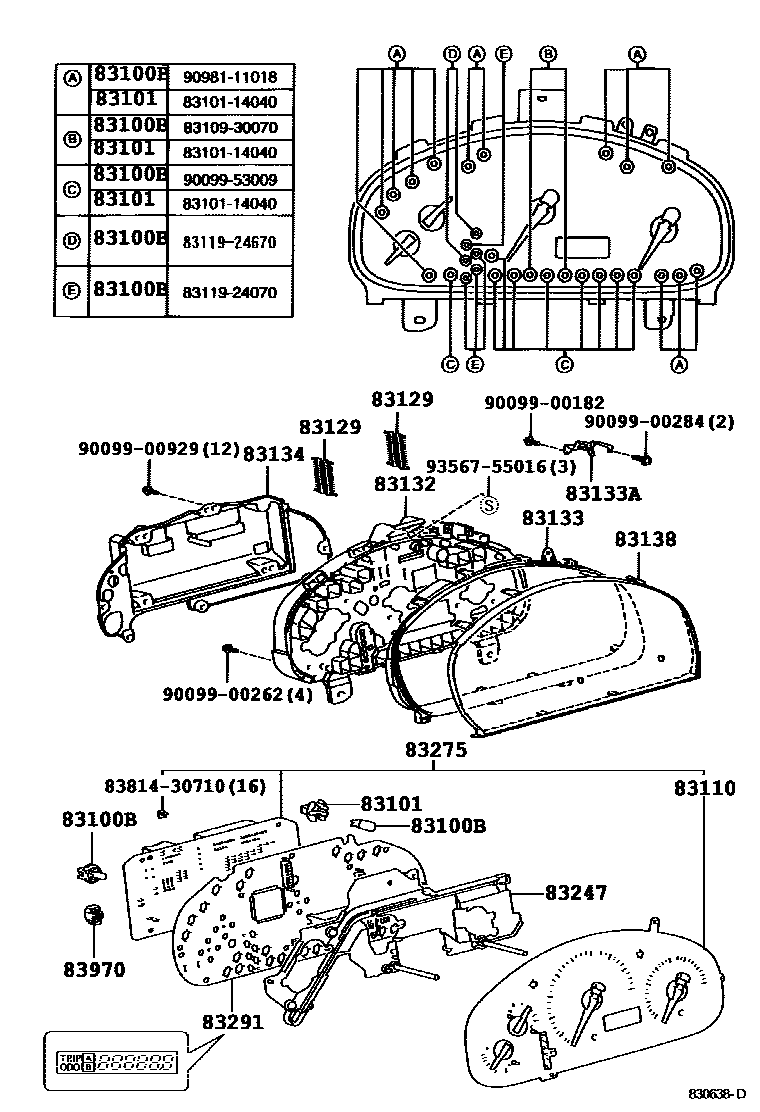

METER

83100BBULB, COMBINATION METER, NO.1

main83109-30070iMCU15200007

14V 2.0W,W/O SOCKET,TYPE B:REFER TO ILLUSTRATION

main83119-24070iMCU15200007

12V 1.4W W(SOCKET),TYPE E:REFER TO ILLUSTRATION

main83119-24670iMCU15200007

14V 1.12W W(SOCKET),TYPE D:REFER TO ILLUSTRATION

main90099-53009iMCU15200007

14V0.84W W/O(SOCKET),TYPE C:REFER TO ILLUSTRATION

main90981-11018iMCU15200007

12V 1.2W W/O SOCKET,TYPE A:REFER TO ILLUSTRATION

83101SOCKET SUB-ASSY, COMBINATION METER BULB

main83101-14040iMCU15200007

TYPE A & TYPE B & TYPE C:REFER TO ILLUSTRATION

83110SPEEDOMETER ASSY

main83220-48050iMCU15..RHD200007

main83220-48060iMCU15..LHD200007

main83220-48070iMCU15..RHD200007

HONG KONG OR SINGAPORE OR BLUNEI SPEC

83129WIRE, METER

main83875-48010×2iMCU15200007

83132CASE, COMBINATION METER

main83841-48020iMCU15200007

83133PLATE, COMBINATION METER, NO.1

main83811-48010iMCU15200007

83133APLATE, COMBINATION METER, NO.2

main83812-48010iMCU15200007

83134COVER, COMBINATION METER, NO.1

main83821-48040iMCU15200007

83138GLASS, SPEEDOMETER

main83852-48010iMCU15..RHD200007

main83852-48020iMCU15..LHD200007

83247PLATE, METER CIRCUIT

main83864-48011iMCU15..RHD200007

main83864-48021iMCU15..LHD200007

83275PLATE,COMPUTER METER CIRCUIT NO.1

main83801-48050iMCU15..RHD200007

main83801-48060iMCU15..LHD200007

main83801-48070iMCU15..RHD200007

HONG KONG OR SINGAPORE OR BLUNEI SPEC

main83801-48120iMCU15..LHD200108

SAUDI ARABIA,GULF SPEC

83291COMPUTER, COMBINATION METER

main83291-48030iMCU15..LHD200108-200302

SAUDI ARABIA,GULF SPEC

main83291-48050iMCU15..RHD200007-200302

main83291-48060iMCU15..LHD200007-200302

main83291-48070iMCU15..RHD200007-200302

HONG KONG OR SINGAPORE OR BLUNEI SPEC

83970BUZZER ASSY, REVERSE WARNING

main83248-20010iMCU15..LHD200108

8381430710

main83814-30710

9009900182

main90099-00182

9009900262

main90099-00262

9009900284

main90099-00284

9009900929

main90099-00929

9356755016

main93567-55016

19 parts on this diagram · 1 diagram in section
