WIRING & CLAMP

0001 1ENGINE ROOM 0002 1ENGINE ROOM 0003 1ENGINE 0004 1ENGINE 0005 1COWL 0006 1COWL 0007 1INSTRUMENT PANEL 0008 1INSTRUMENT PANEL 0009 1FLOOR & ROOF 0010 1DOOR & BACK DOOR GLASS 0011 1SEAT 0012 1CLAMP & BRACKET 0013 1CABLE BOND 0014 1CONNECTOR

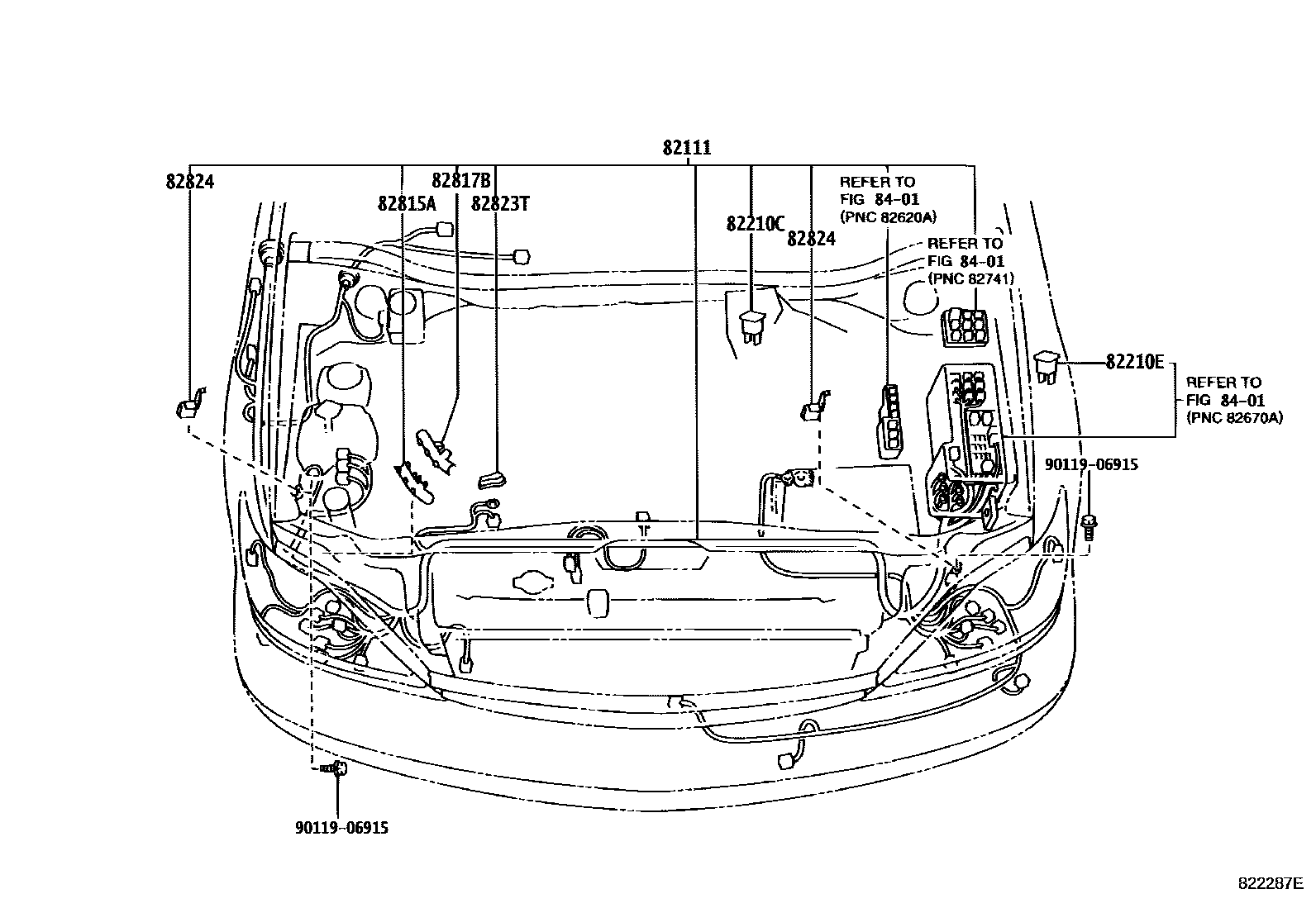

82111WIRE, ENGINE ROOM MAIN

main82111-48180iMCU15..LHD200007

W(CRUISE CONTROL)

main82111-48190iMCU15..LHD200007

main82111-48200iMCU15..RHD200007

W(CRUISE CONTROL)

main82111-48210iMCU15..RHD200007

82210CFUSIBLE LINK

main90982-08202iMCU15200007

60A,TERM.:MALE,YEL

main90982-08283iMCU15200007

30A,TERM.:FEMALE,PNK

main90982-08284iMCU15200007

40A,TERM.:FEMALE,GRN

main90982-08285iMCU15200007

50A,FEMALE,RED,32VDC

main90982-08286iMCU15200007

140A,TERM.:MALE,RBR

82210EFUSIBLE LINK

main90982-08285iMCU15200007

50A,FEMALE,RED,32VDC

82815ACOVER, WIRING HARNESS PROTECTOR

main82815-48010iMCU15200007

82817PROTECTOR, WIRING HARNESS, NO.1

main82817-2A450iMCU15200007

82817BPROTECTOR, WIRING HARNESS, NO.3

main82817-48010iMCU15200007

82823TCAP, ALTERNATOR TERMINAL

main82823-22080iMCU15200007

82824CONNECTOR, WIRING HARNESS

main82824-48020×2iMCU15200007

8401

9011906915

main90119-06915

10 parts on this diagram · 14 diagrams in section
