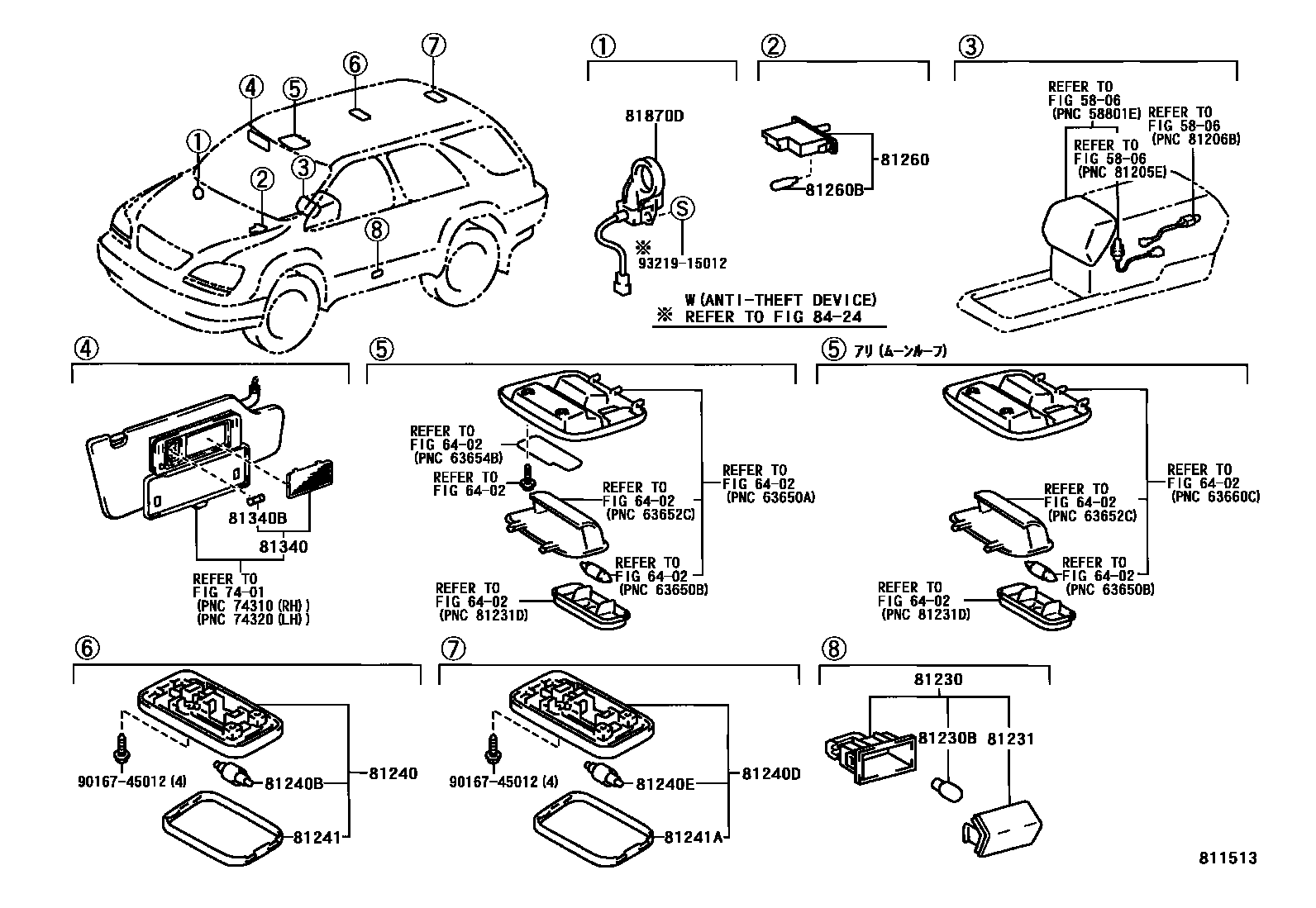

INTERIOR LAMP

5806

6402

7401

81230LAMP ASSY, COURTESY

main81230-30170×4iMCU15200007-200009

81230BBULB(FOR COURTESY LAMP)

main90981-11020×4iMCU15200007-200009

12V 3.8W

81231LENS, COURTESY LAMP

main81231-50060×4iMCU15200007-200009

81240LAMP ASSY, ROOM, NO.1

main81240-22120-A1iMCU15200007

IVORY,TRIM0#

sub81240-51010

main81240-22120-B2iMCU15200007

LT.GRAY,TRIM2#

sub81240-51010

81240BBULB, ROOM LAMP, NO.1

main90981-14004iMCU15200007

12V 8W

81240DLAMP ASSY, ROOM, NO.2

main81240-22120-A1iMCU15200007

IVORY,TRIM0#

sub81240-51010

main81240-22120-C0iMCU15200007

BLACK,TRIM2#

sub81240-51010

81240EBULB, ROOM LAMP, NO.2

main90981-14004iMCU15200007

12V 8W

81241LENS, ROOM LAMP, NO.1

main81241-32031iMCU15200007

81241ALENS, ROOM LAMP, NO.2

main81241-32031iMCU15200007

81260LAMP ASSY, GLOVE BOX

main81260-22160iMCU15200007-200208

main81260-33030iMCU15200208

81260BBULB(FOR GLOVE BOX)

main90981-11018iMCU15200007

12V 1.2W W/O SOCKET

81340LAMP ASSY, VANITY

main81340-33090-A1iMCU15200007

IVORY,TRIM0#,RH

main81340-33090-B0iMCU15200007

LT.GRAY,TRIM2#,RH

main81350-33040-A1iMCU15200007

IVORY,TRIM0#,LH

main81350-33040-B0iMCU15200007

LT.GRAY,TRIM2#,LH

81340BBULB (FOR VANITY LAMP)

main90981-14003×2iMCU15200007

12V 1.5W

81870DLAMP ASSY, KEY CYLINDER

main81870-48010iMCU15200007

W(ANTI-THEFT DEVICE)

main81870-48020iMCU15..RHD200007

9016745012

main90167-45012

9321915012

main93219-15012

19 parts on this diagram · 1 diagram in section
