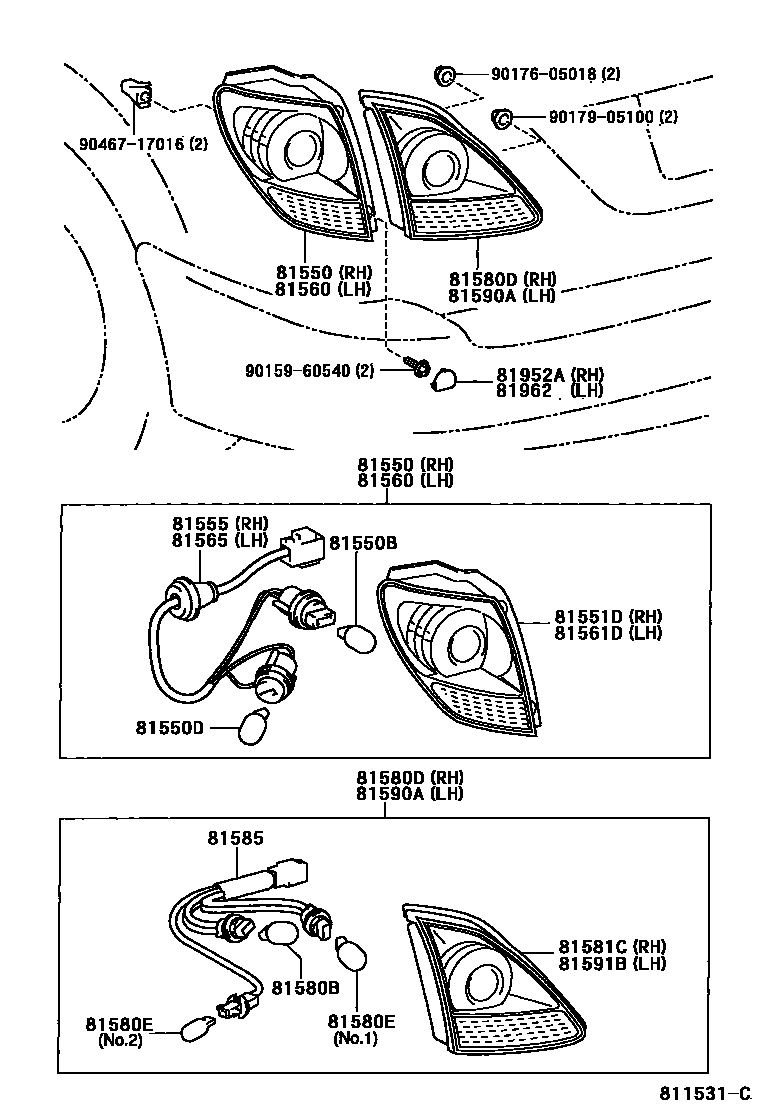

REAR COMBINATION LAMP

81550LAMP ASSY, REAR COMBINATION, RH

main81550-48020iMCU15200007

81550BBULB(FOR REAR COMBINATION LAMP)

main90981-13044iMCU15200007

12V 21/5W

81550DBULB(FOR REAR COMBINATION LAMP)

main90981-15009iMCU15200007

12V 21W,AMBER

81551DLENS & BODY, REAR COMBINATION LAMP, RH

main81551-48020iMCU15200007

81555SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH

main81555-48020iMCU15200007

81560LAMP ASSY, REAR COMBINATION, LH

main81560-48020iMCU15200007

81561DLENS & BODY, REAR COMBINATION LAMP, LH

main81561-48020iMCU15200007

81565SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH

main81555-48020iMCU15200007

81580BBULB (FOR REAR LAMP)

main90981-13044×2iMCU15200007

12V 21/5W

81580DLAMP ASSY, REAR, RH

main81580-48040iMCU15200007

81580EBULB

main90981-11059×2iMCU15200007

NO.2

main90981-13043×2iMCU15200007

NO.1

81581CLENS AND BODY, REAR LAMP, RH

main81581-48040iMCU15200007

81585SOCKET & WIRE, REAR LAMP

main81585-48040×2iMCU15200007

81590ALAMP ASSY, REAR, LH

main81590-48040iMCU15200007

81591BLENS AND BODY, REAR LAMP, LH

main81591-48040iMCU15200007

81952ACOVER, REAR LAMP, RH

main81952-22010×2iMCU15200007

81962COVER, REAR LAMP, LH

main81952-22010×2iMCU15200007

9015960540

main90159-60540

9017605018

main90176-05018

9017905100

main90179-05100

9046717016

main90467-17016

21 parts on this diagram · 1 diagram in section
