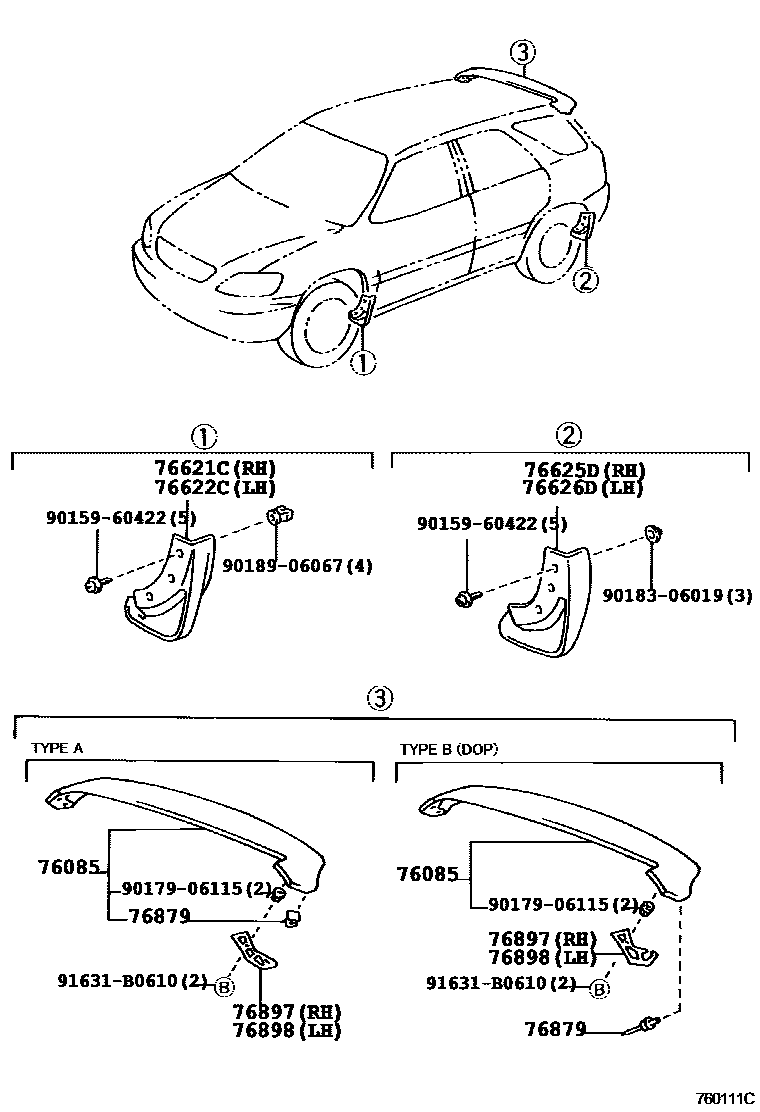

MUDGUARD & SPOILER

76085SPOILER SUB-ASSY, REAR

main76871-48900i¥39,400200007

TYPE A:REFER TO ILLUSTRATION

main76871-48901i¥39,400200007

DOP;TYPE B:REFER TO ILLUSTRATION

76621CMUDGUAD, FRONT FENDER, RH

main76621-48010-A3i200108

LT.GRAY M.M.,065

sub76621-48010¥6,100

main76621-48010-B0i200007

LT.GRAIGE ME.,4P2

sub76621-48010¥6,100

main76621-48010-B4i200007

GRAY M.M.,1C6

sub76621-48010¥6,100

main76621-48010-B5i200007

*104,SILVER ME.,1C0

sub76621-48010¥6,100

main76621-48010-C2i200007

*104,BLACK,202

sub76621-48010¥6,100

main76621-48010-D3i200007

*106,DK. GRAY M.,202

sub76621-48010¥6,100

main76621-48010-D4i200007

GRAYISH BLUE M.M.,8P6

sub76621-48010¥6,100

main76621-48010-E1i200007

*104,DK.BLUE ME,8P4

sub76621-48010¥6,100

main76621-48010-H1i200007

GRAY ME.,6R1 ,6R6

sub76621-48010¥6,100

main76621-48010-J2i200007

*106,GRAY ME.,1C0

sub76621-48010¥6,100

main76621-48010-J3i200007

*106,DK.BLUE M.M.,8P4

sub76621-48010¥6,100

76622CMUDGUARD, FRONT FENDER, LH

main76622-48010-A3i200108

LT.GRAY M.M.,065

sub76622-48010¥6,100

main76622-48010-B0i200007

LT.GRAIGE ME.,4P2

sub76622-48010¥6,100

main76622-48010-B4i200007

GRAY M.M.,1C6

sub76622-48010¥6,100

main76622-48010-B5i200007

*104,SILVER ME.,1C0

sub76622-48010¥6,100

main76622-48010-C2i200007

*104,BLACK,202

sub76622-48010¥6,100

main76622-48010-D3i200007

*106,DK. GRAY M.,202

sub76622-48010¥6,100

main76622-48010-D4i200007

GRAYISH BLUE M.M.,8P6

sub76622-48010¥6,100

main76622-48010-E1i200007

*104,DK.BLUE ME,8P4

sub76622-48010¥6,100

main76622-48010-H1i200007

GRAY ME.,6R1 ,6R6

sub76622-48010¥6,100

main76622-48010-J2i200007

*106,GRAY ME.,1C0

sub76622-48010¥6,100

main76622-48010-J3i200007

*106,DK.BLUE M.M.,8P4

sub76622-48010¥6,100

76625DMUDGUARD, QUARTER PANEL, REAR RH

main76625-48010-A3i200108

LT.GRAY M.M.,065

sub76625-48010¥6,100

main76625-48010-B0i200007

LT.GRAIGE ME.,4P2

sub76625-48010¥6,100

main76625-48010-B4i200007

GRAY M.M.,1C6

sub76625-48010¥6,100

main76625-48010-B5i200007

*104,SILVER ME.,1C0

sub76625-48010¥6,100

main76625-48010-C2i200007

*104,BLACK,202

sub76625-48010¥6,100

main76625-48010-D3i200007

*106,DK. GRAY M.,202

sub76625-48010¥6,100

main76625-48010-D4i200007

GRAYISH BLUE M.M.,8P6

sub76625-48010¥6,100

main76625-48010-E1i200007

*104,DK.BLUE ME,8P4

sub76625-48010¥6,100

main76625-48010-H1i200007

GRAY ME.,6R1 ,6R6

sub76625-48010¥6,100

main76625-48010-J2i200007

*106,GRAY ME.,1C0

sub76625-48010¥6,100

main76625-48010-J3i200007

*106,DK.BLUE M.M.,8P4

sub76625-48010¥6,100

76626DMUDGUARD, QUARTER PANEL, REAR LH

main76626-48010-A3i200108

LT.GRAY M.M.,065

sub76626-48010¥6,100

main76626-48010-B0i200007

LT.GRAIGE ME.,4P2

sub76626-48010¥6,100

main76626-48010-B4i200007

GRAY M.M.,1C6

sub76626-48010¥6,100

main76626-48010-B5i200007

*104,SILVER ME.,1C0

sub76626-48010¥6,100

main76626-48010-C2i200007

*104,BLACK,202

sub76626-48010¥6,100

main76626-48010-D3i200007

*106,DK. GRAY M.,202

sub76626-48010¥6,100

main76626-48010-D4i200007

GRAYISH BLUE M.M.,8P6

sub76626-48010¥6,100

main76626-48010-E1i200007

*104,DK.BLUE ME,8P4

sub76626-48010¥6,100

main76626-48010-H1i200007

GRAY ME.,6R1 ,6R6

sub76626-48010¥6,100

main76626-48010-J2i200007

*106,GRAY ME.,1C0

sub76626-48010¥6,100

main76626-48010-J3i200007

*106,DK.BLUE M.M.,8P4

sub76626-48010¥6,100

76879CLIP, REAR SPOILER, NO.1

main76879-10030i¥440200007

TYPE B:REFER TO ILLUSTRATION

main76879-22020i¥130200007

TYPE A:REFER TO ILLUSTRATION

76897PROTECTOR, REAR SPOILER, SIDE RH

main76897-48010i¥930200007

TYPE A:REFER TO ILLUSTRATION

main76897-48020i¥930200007

TYPE B:REFER TO ILLUSTRATION

76898PROTECTOR, REAR SPOILER, SIDE LH

main76898-48010i¥930200007

TYPE A:REFER TO ILLUSTRATION

main76898-48020i¥930200007

TYPE B:REFER TO ILLUSTRATION

9015960422

main90159-60422¥70

9017906115

main90179-06115¥120

9018306019

main90183-06019¥80

9018906067

main90189-06067¥70

91631B0610

main91631-B0610¥110

13 parts on this diagram · 1 diagram in section
