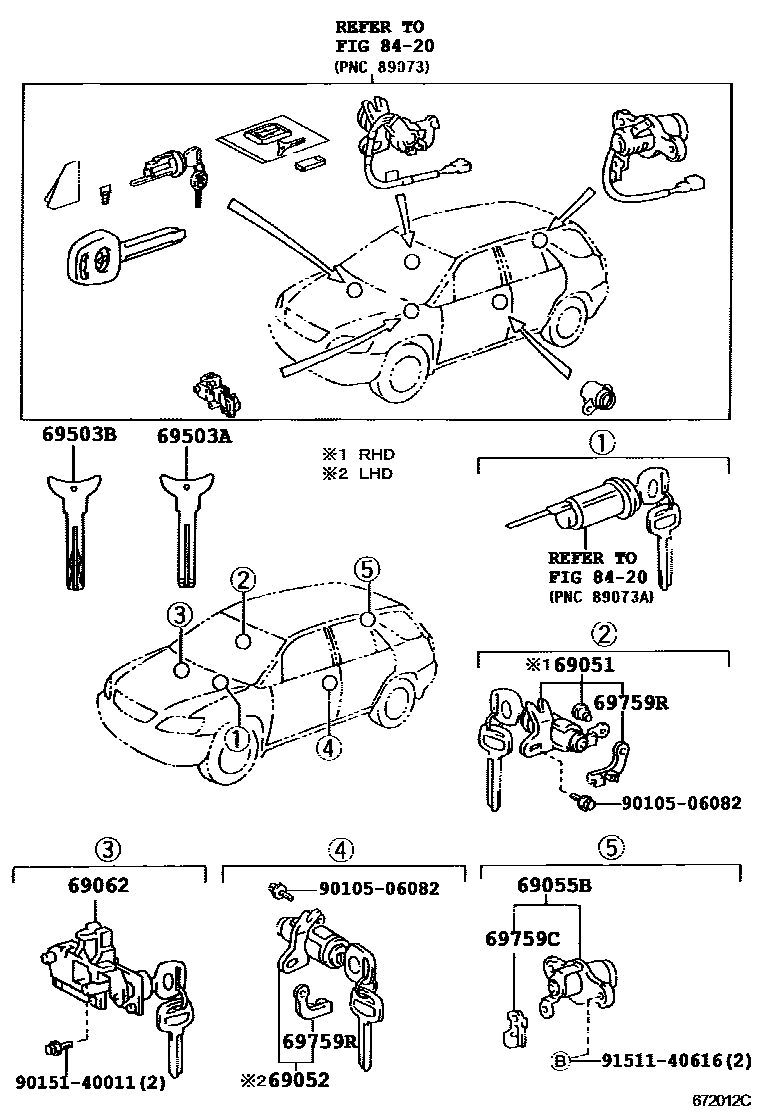

LOCK CYLINDER SET

69051CYLINDER & KEY SET, DOOR LOCK, RH

main69051-48030iMCU15..RHD200007

69052CYLINDER & KEY SET, DOOR LOCK, LH

main69052-48030iMCU15..LHD200007

69055BCYLINDER & KEY SET, BACK DOOR LOCK

main69055-48030iMCU15200007

69062CYLINDER & KEY SET, GLOVE COMPARTMENT LOCK

main69056-48020iMCU15200007

69503AKEY, BLANK

main90999-00233iMCU15200007

MASTER KEY,CARD TYPE

69503BKEY, CUT

main69515-50130iMCU15200007

MASTER KEY

69759CSNAP, BACK DOOR LOCK CYLINDER

main69759-24080iMCU15200007

69759RSNAP, FRONT DOOR LOCK CYLINDER

main69759-53010iMCU15..RHD200007

main69759-53020iMCU15..LHD200007

8420

9010506082

main90105-06082

9015140011

main90151-40011

9151140616

main91511-40616

12 parts on this diagram · 1 diagram in section
