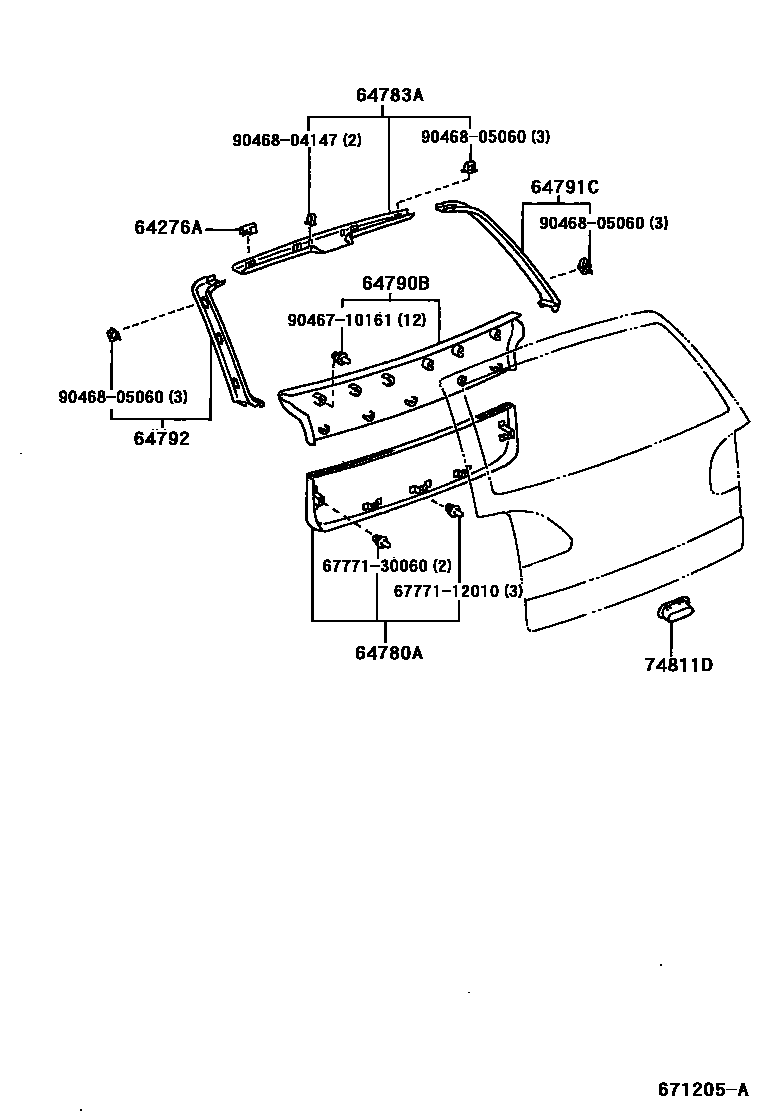

BACK DOOR PANEL & GLASS

0001 1 0002 1

64276ABRACKET, BACK PANEL TRIM, UPPER

main64276-42010iMCU15200007

64780APANEL ASSY, BACK DOOR TRIM

main64780-48030-A0iMCU15200007

IVORY,TRIM0#

main64780-48030-C0iMCU15200007

BLACK,TRIM2#

64783ATRIM, BACK WINDOW PANEL, UPPER

main64783-48020-A0iMCU15200007

IVORY,TRIM0#

sub64783-48020

main64783-48020-C0iMCU15200007

BLACK,TRIM2#

sub64783-48020

64790BPANEL ASSY, BACK DOOR TRIM, UPPER

main64790-48020-A0iMCU15200007

IVORY,TRIM0#

main64790-48020-C0iMCU15200007

BLACK,TRIM2#

64791CCOVER, BACK DOOR TRIM, RH

main64791-48010-A0iMCU15200007

IVORY,TRIM0#

sub64791-48010

main64791-48010-C0iMCU15200007

BLACK,TRIM2#

sub64791-48010

64792COVER, BACK DOOR TRIM, LH

main64792-48010-A0iMCU15200007

IVORY,TRIM0#

sub64792-48010

main64792-48010-C0iMCU15200007

BLACK,TRIM2#

sub64792-48010

74811DHANDLE, DOOR PULL

main74811-13010-C0iMCU15200007

BLACK,TRIM0#,2#

sub74811-13010

6777112010WEATHERSTRIP, BACK DOOR TRIM, RH

main67771-12010

6777130060WEATHERSTRIP, BACK DOOR TRIM, RH

main67771-30060

9046710161

main90467-10161

9046804147

main90468-04147

9046805060

main90468-05060

12 parts on this diagram · 2 diagrams in section
