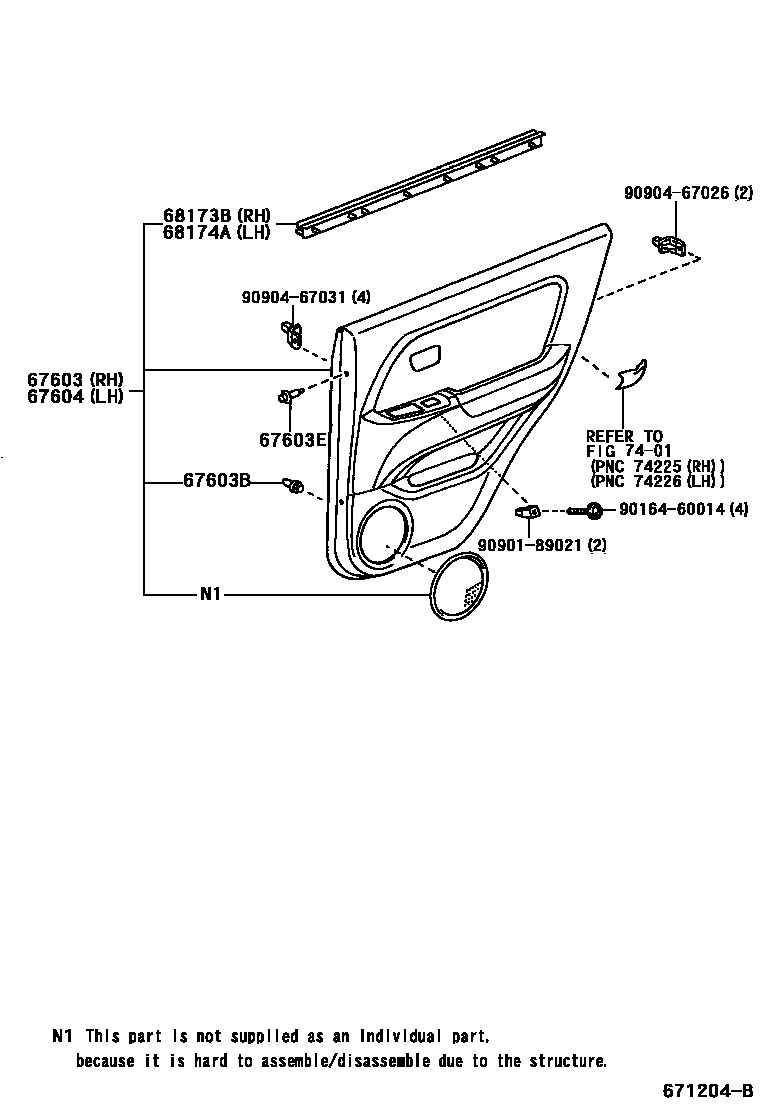

REAR DOOR PANEL & GLASS

0001 1 0002 1

67603BOARD SUB-ASSY, REAR DOOR TRIM, RH

main67630-48080-A0iMCU15200007

DOOR TRIM=TYPE C-*104,IVORY,TRIM0#

sub67630-48080¥59,000

main67630-48080-C2iMCU15200007

DOOR TRIM=TYPE C-*104,BLACK,TRIM2#

sub67630-48080¥59,000

main67630-48190-C0iMCU15200007

DOOR TRIM=TYPE B-*104,BLACK,TRIM2#

67603BCLIP(FOR REAR DOOR TRIM BOARD)

main67771-33020iMCU15¥90200007

67603ECLIP(FOR REAR DOOR TRIM BOARD)

main90467-07066-22iMCU15200007

BLACK,TRIM2#

sub90467-07066¥120

main90467-07066-A0iMCU15200007

IVORY,TRIM0#

sub90467-07066¥120

67604BOARD SUB-ASSY, REAR DOOR TRIM, LH

main67640-48080-A0iMCU15200007

DOOR TRIM=TYPE C-*104,IVORY,TRIM0#

sub67640-48080¥59,000

main67640-48080-C2iMCU15200007

DOOR TRIM=TYPE C-*104,BLACK,TRIM2#

sub67640-48080¥59,000

main67640-48190-C0iMCU15200007

DOOR TRIM=TYPE B-*104,BLACK,TRIM2#

68173BWEATHERSTRIP, REAR DOOR GLASS, INNER RH

main68173-48010iMCU15¥3,950200007

68174AWEATHERSTRIP, REAR DOOR GLASS, INNER LH

main68174-48010iMCU15¥3,950200007

7401

9016460014

main90164-60014¥100

9090189021

main90901-89021¥200

9090467026

main90904-67026¥120

9090467031

main90904-67031¥320

11 parts on this diagram · 2 diagrams in section
