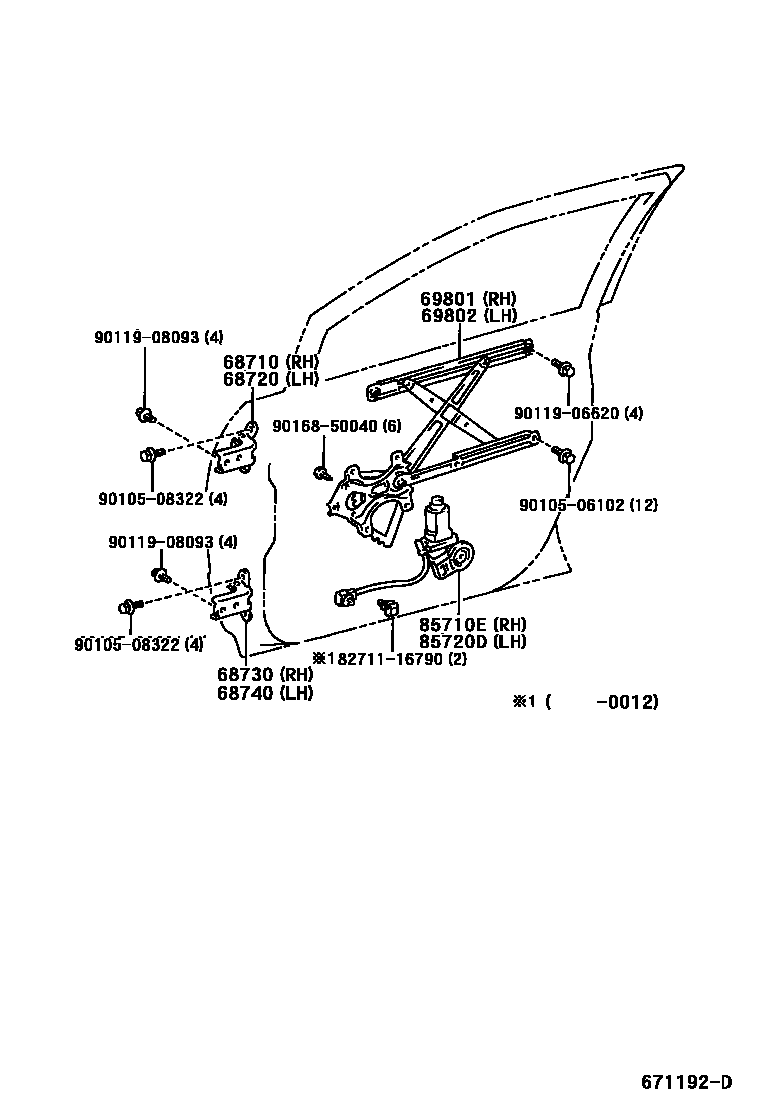

FRONT DOOR WINDOW REGULATOR & HINGE

68710HINGE ASSY, FRONT DOOR, UPPER RH

main68710-12150iMCU15200007

sub68710-12151

68720HINGE ASSY, FRONT DOOR, UPPER LH

main68720-12150iMCU15200007

sub68720-12151

68730HINGE ASSY, FRONT DOOR, LOWER RH

main68720-12150iMCU15200007

sub68720-12151

68740HINGE ASSY, FRONT DOOR, LOWER LH

main68710-12150iMCU15200007

sub68710-12151

69801REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH

main69801-48010iMCU15200007

69802REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH

main69802-48010iMCU15200007

85710EMOTOR ASSY, POWER WINDOW REGULATOR, RH

main85710-48010iMCU15200007-200205

sub85710-48011

main85710-48011iMCU15200205

85720DMOTOR ASSY, POWER WINDOW REGULATOR, LH

main85720-48020iMCU15200007-200205

sub85720-48021

main85720-48021iMCU15200205

8271116790WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-16790

9010506102

main90105-06102

9010508322

main90105-08322

9011906620

main90119-06620

9011908093

main90119-08093

9016850040

main90168-50040

14 parts on this diagram · 1 diagram in section
