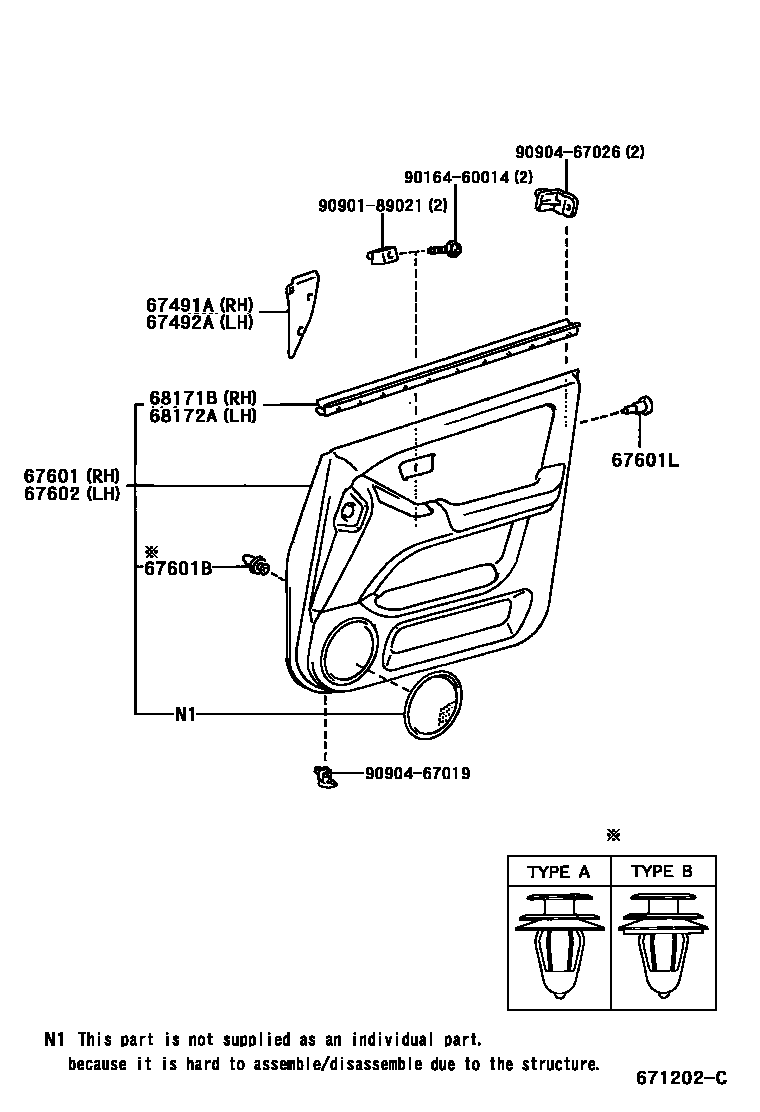

FRONT DOOR PANEL & GLASS
67491AGARNISH, FRONT DOOR LOWER FRAME BRACKET, RH
67492AGARNISH, FRONT DOOR LOWER FRAME BRACKET, LH
67601BOARD SUB-ASSY, FRONT DOOR TRIM, RH
DOOR TRIM=TYPE C-*104,IVORY,TRIM0#
DOOR TRIM=TYPE C-*104,BLACK,TRIM2#
DOOR TRIM=TYPE B-*104,BLACK,TRIM2#
DOOR TRIM=TYPE B-*104,BLACK,TRIM2#
67601BCLIP(FOR FRONT DOOR TRIM BOARD)
TYPE A:REFER TO ILLUSTRATION
TYPE B:REFER TO ILLUSTRATION
67601LCLIP(FOR FRONT DOOR TRIM BOARD)
67602BOARD SUB-ASSY, FRONT DOOR TRIM, LH
DOOR TRIM=TYPE C-*104,IVORY,TRIM0#
DOOR TRIM=TYPE C-*104,BLACK,TRIM2#
DOOR TRIM=TYPE B-*104,BLACK,TRIM2#
DOOR TRIM=TYPE B-*104,BLACK,TRIM2#
68171BWEATHERSTRIP, FRONT DOOR GLASS, INNER RH
68172AWEATHERSTRIP, FRONT DOOR GLASS, INNER LH
9016460014
main90164-60014
9090189021
main90901-89021
9090467019
main90904-67019
9090467026
main90904-67026
12 parts on this diagram · 3 diagrams in section
