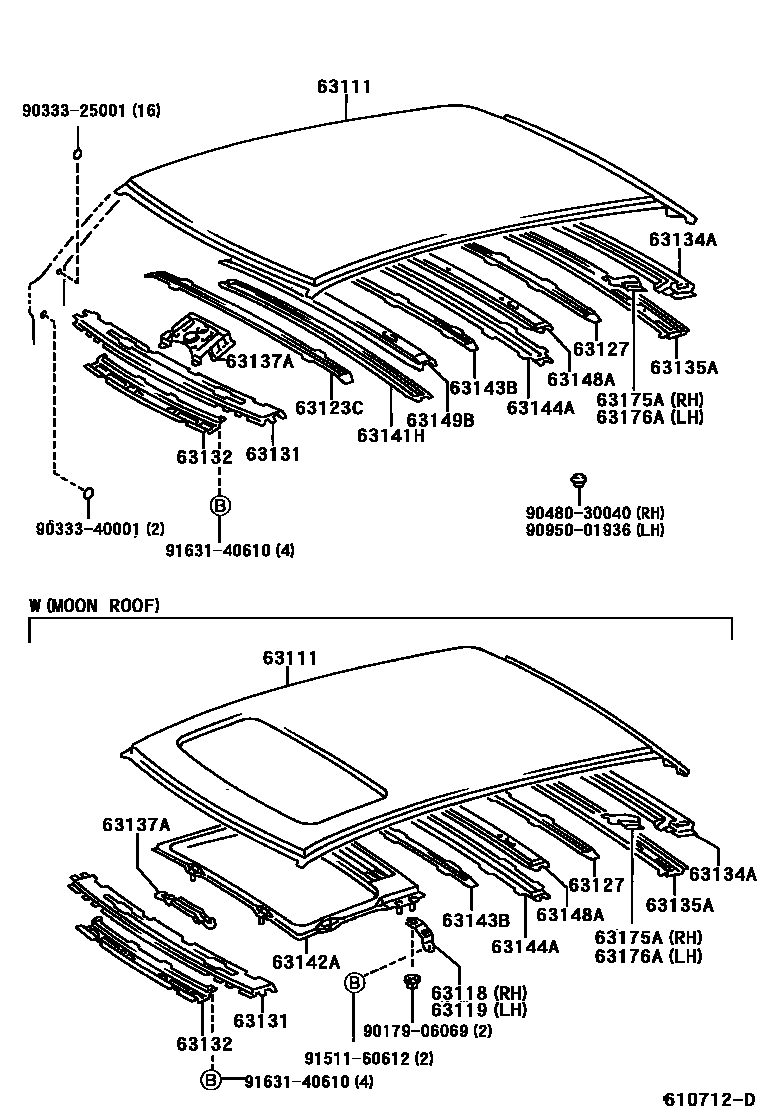

ROOF PANEL & BACK WINDOW GLASS

0001 1 0002 1

63111PANEL, ROOF

main63111-48030iMCU15200007

main63111-48041iMCU15200007

W(MOON ROOF)

63118SUPPORT, ROOF PANEL, RH

main63118-48030iMCU15200007

63119SUPPORT, ROOF PANEL, LH

main63118-48030iMCU15200007

63123CREINFORCEMENT, ROOF PANEL

main63123-48010iMCU15200007

63127REINFORCEMENT, ROOF PANEL, NO.5

main63127-48010iMCU15200007

63131PANEL, WINDSHIELD HEADER, OUTER

main63131-48010iMCU15200007

63132PANEL, WINDSHIELD HEADER, INNER

main63132-48010iMCU15200007

63134AFRAME, BACK DOOR OPENING, UPPER

main63134-48010iMCU15200007

63135AFRAME, BACK DOOR OPENING, LOWER

main63135-48010iMCU15200007

63137ABRACKET, DOME LAMP, NO.1

main63137-48010iMCU15200007

main63137-48020iMCU15200007

W(MOON ROOF)

63141HREINFORCEMENT, ROOF PANEL, CENTER

main63141-48010iMCU15200007

63142AREINFORCEMENT, ROOF PANEL, NO.2

main63142-48010iMCU15200007

63143BREINFORCEMENT, ROOF PANEL, NO.3

main63143-48010iMCU15200007

main63143-48020iMCU15200007

W(MOON ROOF)

63144AREINFORCEMENT, ROOF PANEL, NO.4

main63144-48010iMCU15200007

63148AREINFORCEMENT, ROOF PANEL, NO.7

main63148-48010iMCU15200007

63149BREINFORCEMENT, ROOF PANEL, NO.1 REAR

main63149-48010iMCU15200007

63175AREINFORCEMENT, BACK DOOR HINGE FEMALE, RH

main63175-48010iMCU15200007

63176AREINFORCEMENT, BACK DOOR HINGE FEMALE, LH

main63176-48010iMCU15200007

9017906069

main90179-06069

9033325001

main90333-25001

9033340001

main90333-40001

9048030040

main90480-30040

9095001936

main90950-01936

9151160612

main91511-60612

9163140610

main91631-40610

25 parts on this diagram · 2 diagrams in section
