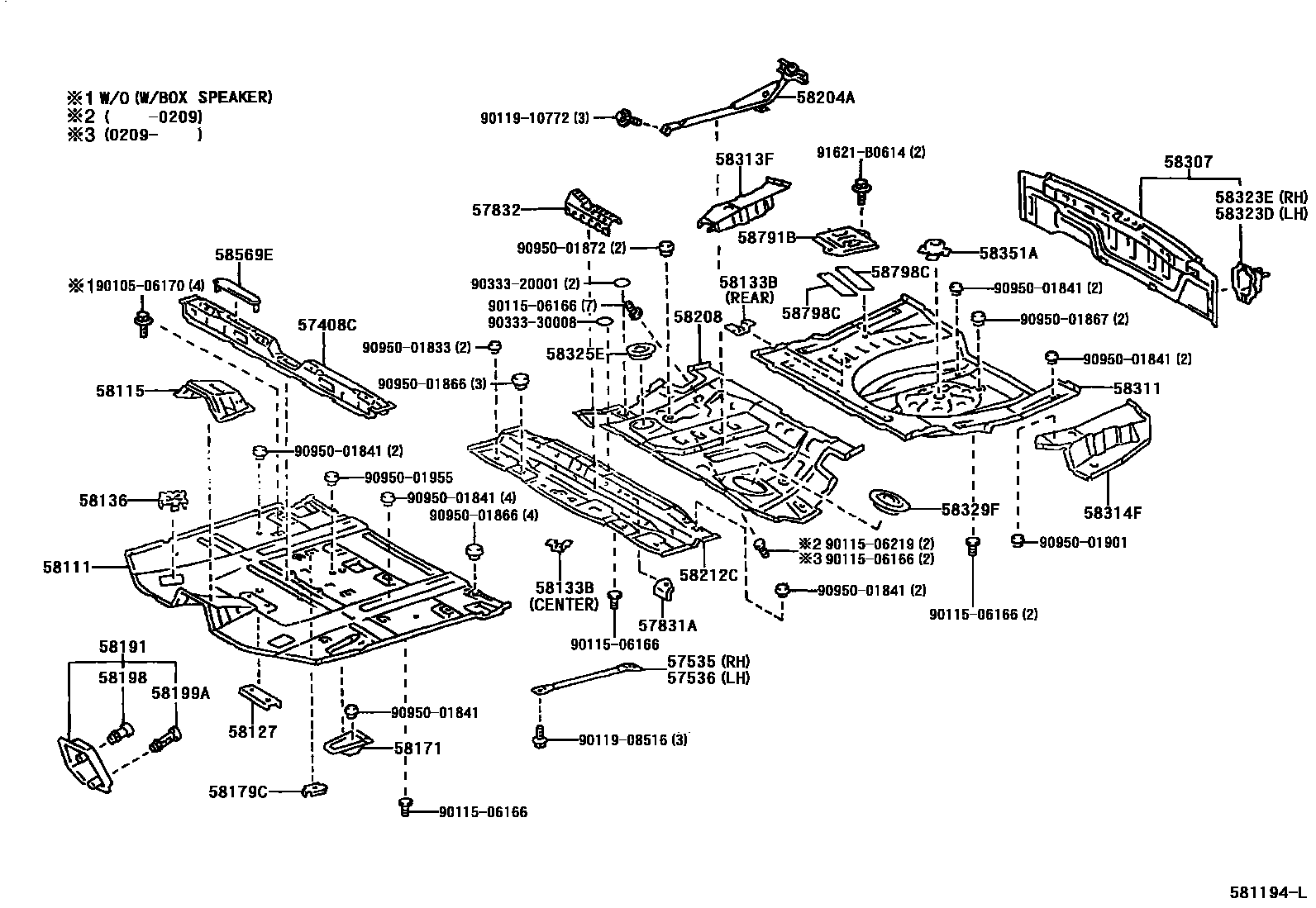

FLOOR PAN & LOWER BACK PANEL
57408CMEMBER SUB-ASSY, FRONT FLOOR CROSS
57535BRACE, FRONT FLOOR, RH
57536BRACE, FRONT FLOOR, LH
57831AREINFORCEMENT, REAR NO.1 SEAT LEG, FRONT NO.1
57832REINFORCEMENT, REAR NO.1 SEAT LEG, FRONT NO.2
58111PAN, FRONT FLOOR
58115REINFORCEMENT, FRONT FLOOR PANEL, FRONT
58127PATCH, FRONT FLOOR PANEL
58133BBRACKET, FRONT FLOOR HEAT INSULATOR, NO.3
CENTER
REAR
58136COVER, FRONT FLOOR HOLE
58171REINFORCEMENT, PARKING BRAKE BASE
58179CBRACKET, CLAMP FLOOR
58191FOOTREST, FRONT FLOOR
58204AREINFORCEMENT SUB-ASSY, CENTER FLOOR PANEL, LH
58208PAN, CENTER FLOOR
58212CPAN, CENTER FLOOR, FRONT
58307PANEL SUB-ASSY, BODY LOWER BACK
58311PAN, REAR FLOOR
58313FEXTENSION, REAR FLOOR PAN TO QUARTER PANEL, RH
W(NAVIGATION SYSTEM)
58314FEXTENSION, REAR FLOOR PAN TO QUARTER PANEL, LH
58323DREINFORCEMENT, REAR BUMPER ARM SUPPORT
58323EREINFORCEMENT, REAR BUMPER ARM SUPPORT, RH
58325ECOVER, REAR FLOOR SERVICE HOLE
58329FCOVER, REAR FLOOR SERVICE HOLE, NO.2
58351ABRACKET, SPARE WHEEL CARRIER
58569ECOVER, FRONT FLOOR CAUTION PLATE
58791BCARRIER, JACK
58798CCUSHION, JACK CARRIER
9010506170
9011506166
9011506219
9011908516
9011910772
9033320001
9033330008
9095001833
9095001841
9095001866
9095001867
9095001872
9095001901
9095001955
91621B0614
45 parts on this diagram · 1 diagram in section
