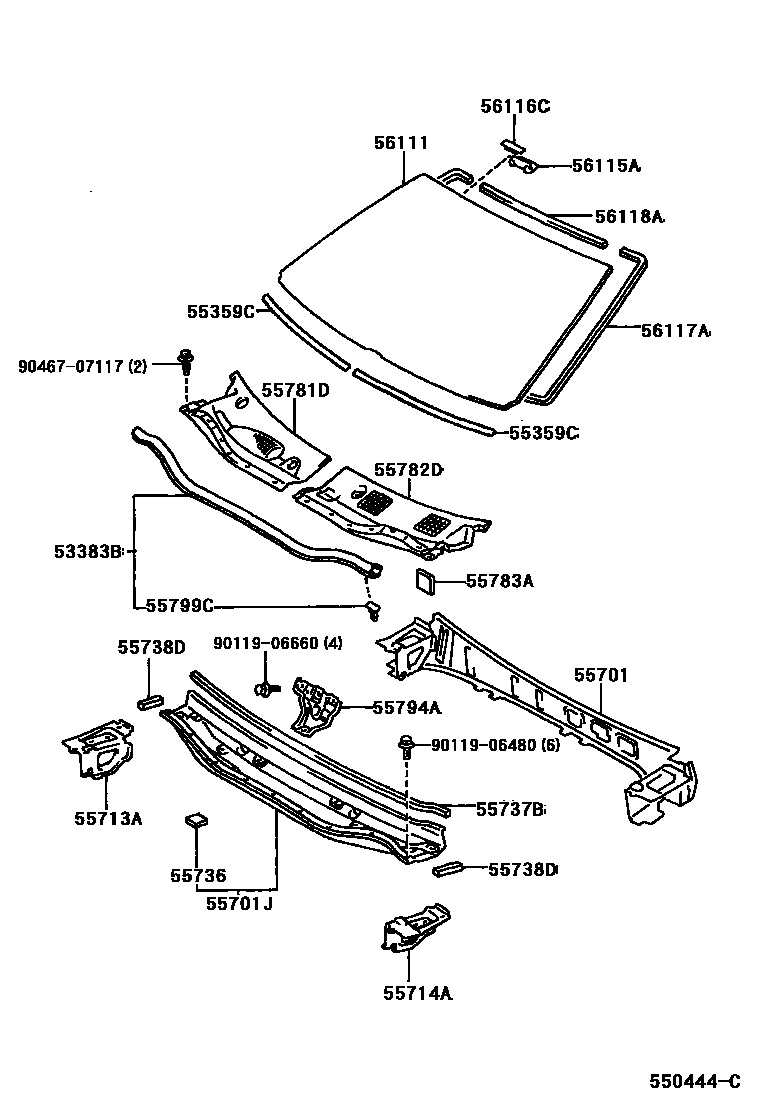

COWL PANEL & WINDSHIELD GLASS

53383BSEAL, HOOD TO COWL TOP

main53383-48010iMCU15200007

55359CCOSHION, INSTRUMENT PANEL, NO.5

main55359-22040×2iMCU15200007

55701PANEL SUB-ASSY, COWL

main55700-48010iMCU15..RHD200007

main55700-48020iMCU15..LHD200007

55701JPANEL SUB-ASSY, COWL TOP, OUTER

main55701-48900iMCU15..RHD200007

main55701-48901iMCU15..LHD200007

55713APANEL, COWL TOP SIDE, RH

main55705-48010iMCU15200007

55714APANEL, COWL TOP SIDE, LH

main55706-48010iMCU15200007

55736SEAL, WATER GUARD PLATE

main55736-48010iMCU15200007

55737BSEAL, HEATER AIR DUCT SPLASH SHIELD, NO.1

main55737-48010iMCU15200007

55738DSEAL, HEATER AIR DUCT SPLASH SHIELD, NO.2

main55738-48010×2iMCU15200007

sub55738-44010

55781DLOUVER, COWL TOP VENTILATOR, RH

main55781-48010iMCU15..RHD200007

main55781-48030iMCU15..LHD200007

55782DLOUVER, COWL TOP VENTILATOR, LH

main55782-48020iMCU15..LHD200007

main55782-48030iMCU15..RHD200007

55783APAD, COWL TOP SILENCER

main55783-22110×2iMCU15200007

55794ABRACKET, WEATHERSTRIP WIPER PIVOT GUIDE, NO.2

main55794-48010iMCU15..RHD200007

main55794-48020iMCU15..LHD200007

55799CCLIP, COWL TOP VENTILATOR LOUVER

main90467-10146×4iMCU15200007

56111GLASS, WINDSHIELD

main56111-48060iMCU15..LHD200007

*TL,T=4.76,GREEN

main56111-48070iMCU15..LHD200007

*EHTL,T=4.76,GREEN

main56111-48090iMCU15..RHD200007

*TL,T=4.76,GREEN

main56111-48100iMCU15..RHD200007

*EHTL,T=4.76,GREEN

56115ASTOPPER, WINDSHIELD GLASS, NO.1

main56115-22010×2iMCU15200007

56116CSTOPPER, WINDSHIELD GLASS, NO.2

main56116-22050×2iMCU15200007

56117ADAM, WINDOW GLASS ADHESIVE

main56117-48010iMCU15200007

56118ADAM, WINDOW GLASS ADHESIVE, NO.2

main56118-48010iMCU15200007

9011906480

main90119-06480

9011906660

main90119-06660

9046707117

main90467-07117

22 parts on this diagram · 1 diagram in section
