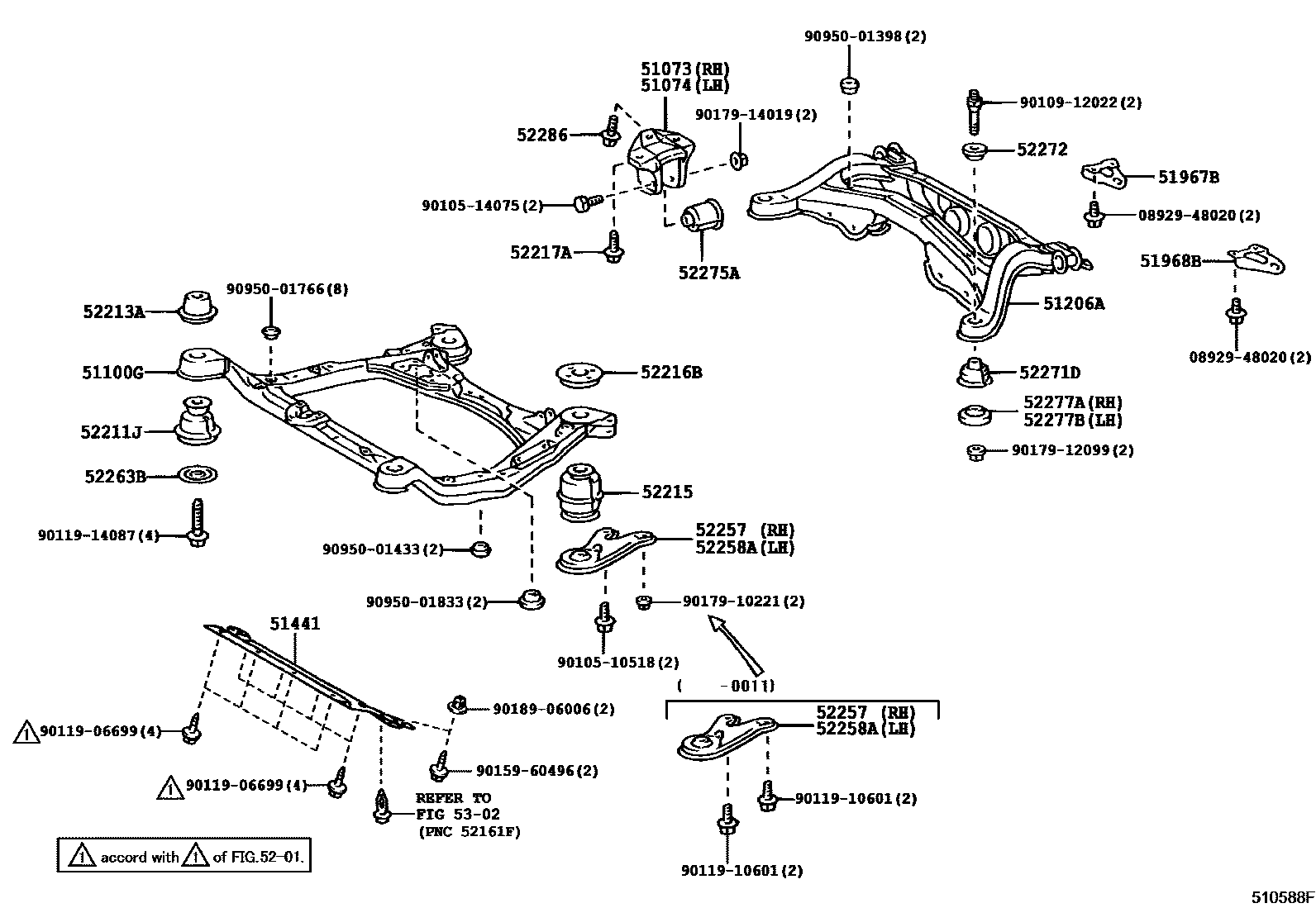

SUSPENSION CROSSMEMBER & UNDER COVER
51073BRACKET SUB-ASSY, REAR BODY MOUNTING, NO.2 RH
51074BRACKET SUB-ASSY, REAR BODY MOUNTING, NO.2 LH
51100GFRAME ASSY, FRONT
51206AMEMBER SUB-ASSY, REAR SUSPENSION
sub51206-48021
sub48198-48010
sub48409-48010
sub48730-48031
sub48730-48041
sub48730-48051
sub48730-48061
sub48740-48021
sub90179-14069
sub51206-48022
51441COVER, ENGINE UNDER, NO.1
51967BHOOK, TRANSPORT, REAR RH
51968BHOOK, TRANSPORT, REAR LH
52211JCUSHION, FRONT SUSPENSION MEMBER BODY MOUNTING, FRONT
52213ASTOPPER, FRONT SUSPENSION MEMBER BODY MOUNTING, FRONT
52215CUSHION, FRONT SUSPENSION MEMBER BODY MOUNTING, REAR
52216BSTOPPER, FRONT SUSPENSION MEMBER BODY MOUNTING, REAR
52217ABOLT, BODY MOUNTING
52263BRETAINER, FRONT SUSPENSION MEMBER CUSHION, NO.1
52271DCUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, FRONT
52272STOPPER, REAR SUSPENSION MEMBER, UPPER
52275ACUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, REAR
52277ARETAINER, REAR SUSPENSION MEMBER LOWER STOPPER, RH
52277BSTOPPER, REAR SUSPENSION MEMBER, REAR UPPER
52286BOLT, DIFFERENTIAL SUPPORT MEMBER MOUNTING, NO.2
5302
0892948020
main08929-48020
9010510518
main90105-10518
9010514075
main90105-14075
9010912022
main90109-12022
9011906699
main90119-06699
9011910601
main90119-10601
9011914087
main90119-14087
9015960496
main90159-60496
9017910221
main90179-10221
9017912099
main90179-12099
9017914019
main90179-14019
9018906006
main90189-06006
9095001398
main90950-01398
9095001433
main90950-01433
9095001766
main90950-01766
9095001833
main90950-01833
38 parts on this diagram · 1 diagram in section
