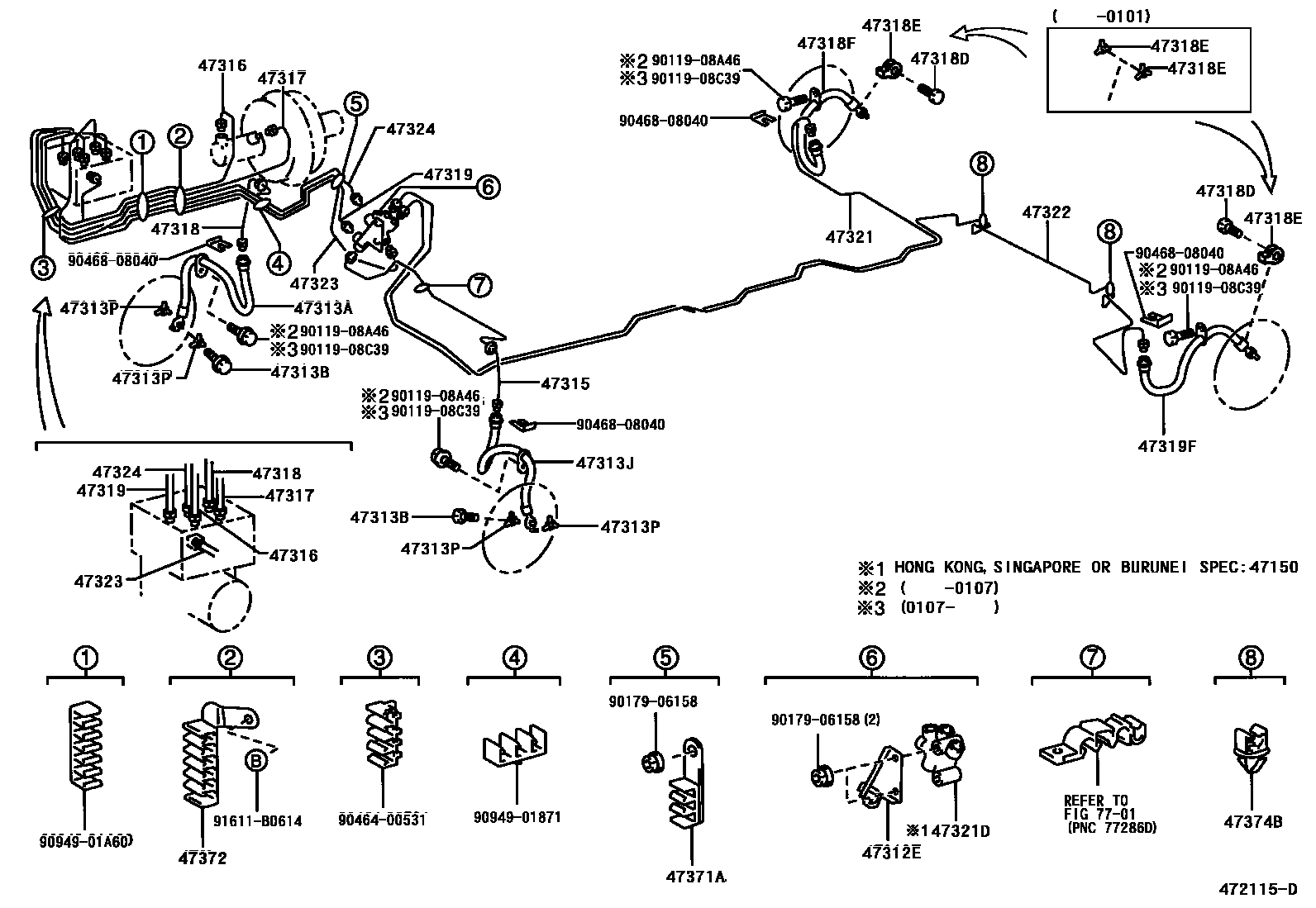

BRAKE TUBE & CLAMP

0001 1 0002 1 0003 1 0004 1

47150VALVE ASSY, PROPORTIONING

main47150-33020iMCU15..RHD200007

47312EWAY, NO.2(FOR FRONT BRAKE TUBE)

main90904-12038iMCU15200007

47313AHOSE, FLEXIBLE, NO.1(FOR FRONT)

main90947-02875iMCU15200007

47313BBOLT, UNION(FOR FRONT FLEXIBLE HOSE)

main90401-10015iMCU15200007-200101

main90401-10058iMCU15200101

47313JHOSE, FLEXIBLE, NO.2(FOR FRONT)

main90947-02876iMCU15200007

47313PGASKET(FOR FRONT FLEXIBLE HOSE)

main47389-30010iMCU15200007-200101

main47389-50020iMCU15200101

47315TUBE, FRONT BRAKE, NO.5

main47315-48010iMCU15..LHD200007

main47315-48030iMCU15..RHD200007

47316TUBE, FRONT BRAKE, NO.6

main47316-48060iMCU15..RHD200007

HONG KONG OR SINGAPORE OR BLUNEI SPEC

main47316-48090iMCU15..RHD200007

main47316-48100iMCU15..LHD200007

47317TUBE, FRONT BRAKE, NO.7

main47317-48060iMCU15..RHD200007

HONG KONG OR SINGAPORE OR BLUNEI SPEC

main47317-48090iMCU15..RHD200007

main47317-48100iMCU15..LHD200007

47318TUBE, FRONT BRAKE, NO.8

main47318-48040iMCU15200007-200207

main47318-48120iMCU15..LHD200207

47318DBOLT, UNION(FOR REAR FLEXIBLE HOSE)

main90401-10015iMCU15200007-200101

main90401-10058iMCU15200101

47318EGASKET(FOR REAR FLEXIBLE HOSE)

main47389-30010iMCU15200007-200101

main47389-50020iMCU15200101

47318FHOSE, FLEXIBLE(FOR REAR RH)

main90947-02970iMCU15200007

47319TUBE, FRONT BRAKE, NO.9

main47319-48060iMCU15..RHD200007

main47319-48080iMCU15..LHD200007

47319FHOSE, FLEXIBLE(FOR REAR LH)

main90947-02971iMCU15200007

47321TUBE, REAR BRAKE, NO.1

main47321-48010iMCU15200007

47321DWAY, NO.1(FOR REAR BRAKE TUBE)

main90412-10140iMCU15200007

47322TUBE, REAR BRAKE, NO.2

main47322-48020iMCU15200007

47323TUBE, REAR BRAKE, NO.3

main47323-48080iMCU15..RHD200007

main47323-48100iMCU15..LHD200007

47324TUBE, REAR BRAKE, NO.4

main47324-48080iMCU15..RHD200007

main47324-48100iMCU15..LHD200007

47371ACLAMP, BRAKE TUBE, NO.1

main47371-48010iMCU15..RHD200007

main47371-48070iMCU15..LHD200007

47372CLAMP, BRAKE TUBE, NO.2

main47371-48030iMCU15..RHD200007

main47371-48060iMCU15..LHD200007

47374BCLAMP, BRAKE TUBE, NO.4

main47371-48050iMCU15200007

7701

9011908A46

main90119-08A46

9011908C39

main90119-08C39

9017906158

main90179-06158

9046400531

main90464-00531

9046808040

main90468-08040

9094901871

main90949-01871

9094901A60

main90949-01A60

91611B0614

main91611-B0614

32 parts on this diagram · 4 diagrams in section
