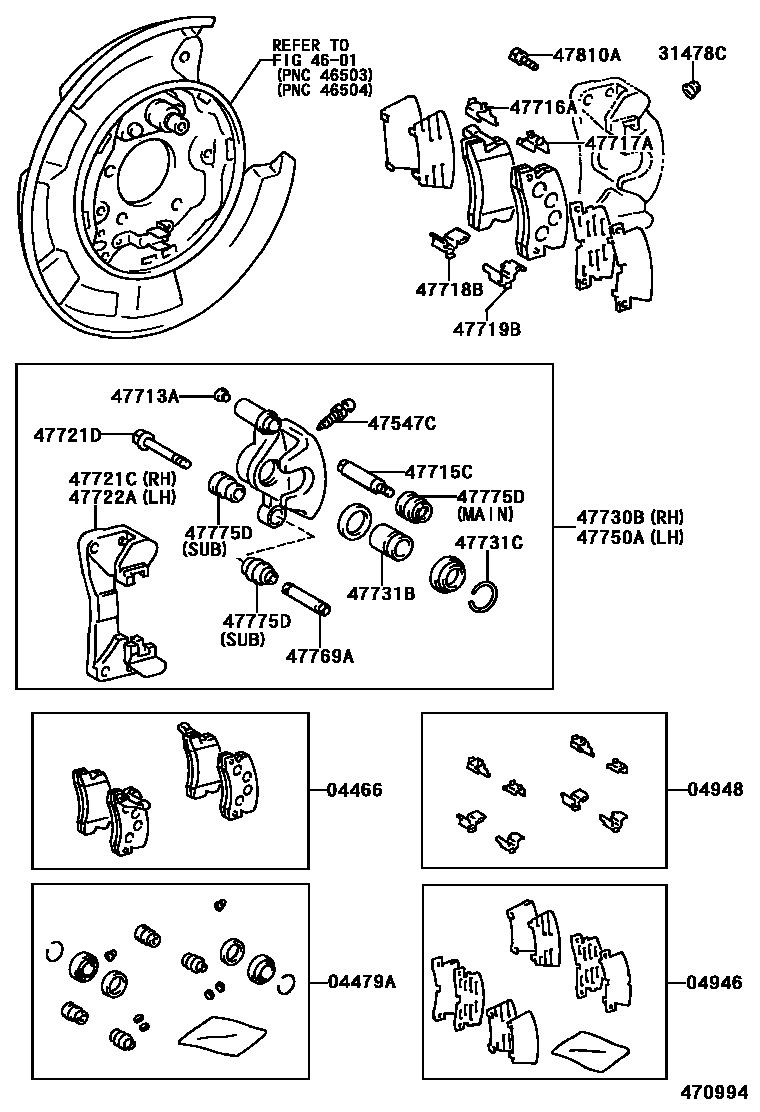

REAR DISC BRAKE CALIPER & DUST COVER

04466PAD KIT, DISC BRAKE, REAR

main04466-33050iMCU15..RHD¥8,800200007-200111

MARK AK PA544,HONG KONG OR SINGAPORE OR BLUNEI SPEC

main04466-33110iMCU15..RHD¥7,300200111

MARK AK PA544,HONG KONG OR SINGAPORE OR BRUNEI SPEC

main04466-48010iMCU15¥8,800200007

MARK NBK PN529

sub04466-48050¥8,800

04479ACYLINDER KIT, DISC BRAKE, REAR

main04479-48010iMCU15¥2,600200007

04946SHIM KIT, ANTI SQUEAL(FOR REAR DISC BRAKE)

main04946-32070iMCU15..RHD¥2,120200007-200111

HONG KONG OR SINGAPORE OR BRUNEI SPEC

main04946-32070iMCU15¥2,120200007

main04946-48020iMCU15..RHD¥1,830200111

HONG KONG OR SINGAPORE OR BRUNEI SPEC

04948FITTING KIT, DISC BRAKE, REAR

main04948-33010iMCU15¥2,760200007

31478CCAP, BLEEDER PLUG(FOR REAR DISC BRAKE)

main31478-30010iMCU15¥160200007

4601

47547CPLUG, BLEEDER(FOR REAR DISC BRAKE)

main47547-20010iMCU15¥200200007

47713APLUG, HOLE(FOR REAR DISC BRAKE CYLINDER)

main90950-01538iMCU15¥200200007

47715CPIN, CYLINDER SLIDE(FOR REAR DISC BRAKE)

main47715-33020iMCU15¥590200007

47716APLATE, PAD SUPPORT, NO.1(FOR REAR DISC BRAKE)

main47716-33070iMCU15¥300200007

47717APLATE, PAD SUPPORT, NO.2(FOR REAR DISC BRAKE)

main47717-33050iMCU15¥300200007

47718BPLATE, PAD SUPPORT, NO.3(FOR REAR DISK BRAKE)

main47718-33010iMCU15¥440200007

47719BPLATE, PAD SUPPORT, NO.4(FOR REAR DISK BRAKE)

main47719-33010iMCU15¥440200007

47721CMOUNTING, REAR DISC BRAKE CYLINDER, RH

main47721-20321iMCU15..RHD¥7,800200007

HONG KONG OR SINGAPORE OR BLUNEI SPEC

main47721-48050iMCU15200007

47721DBOLT(FOR REAR DISC BRAKE CYLINDER MOUTING)

main90119-08A98iMCU15¥170200007

*8-1.25PX68-30

47722AMOUNTING, REAR DISC BRAKE CYLINDER, LH

main47721-20321iMCU15..RHD¥7,800200007

HONG KONG OR SINGAPORE OR BLUNEI SPEC

main47721-48050iMCU15200007

47730BCYLINDER ASSY, REAR DISC BRAKE, RH

main47730-48020iMCU15..RHD¥41,500200007

HONG KONG OR SINGAPORE OR BLUNEI SPEC

main47730-48021iMCU15200007

47731BPISTON, REAR DISC BRAKE

main47731-48010iMCU15¥1,490200007

47731CRING, SET(FOR REAR DISC BRAKE PISTON)

main90520-52006iMCU15¥170200007

47750ACYLINDER ASSY, DISC BRAKE, REAR LH

main47750-48020iMCU15..RHD¥41,500200007

HONG KONG OR SINGAPORE OR BLUNEI SPEC

main47750-48021iMCU15200007

47769ABUSH, CYLINDER SLIDE, NO.1(FOR REAR DISC BRAKE)

main47769-32020iMCU15¥590200007

47775DBOOT, BUSH DUST(FOR REAR DISC BRAKE)

main47775-16020iMCU15¥510200007

SUB

main47775-32020iMCU15¥310200007

MAIN

47810ABOLT, HEXAGON(FOR REAR CALIPER)

main90119-10445iMCU15¥190200007

23 parts on this diagram · 1 diagram in section
