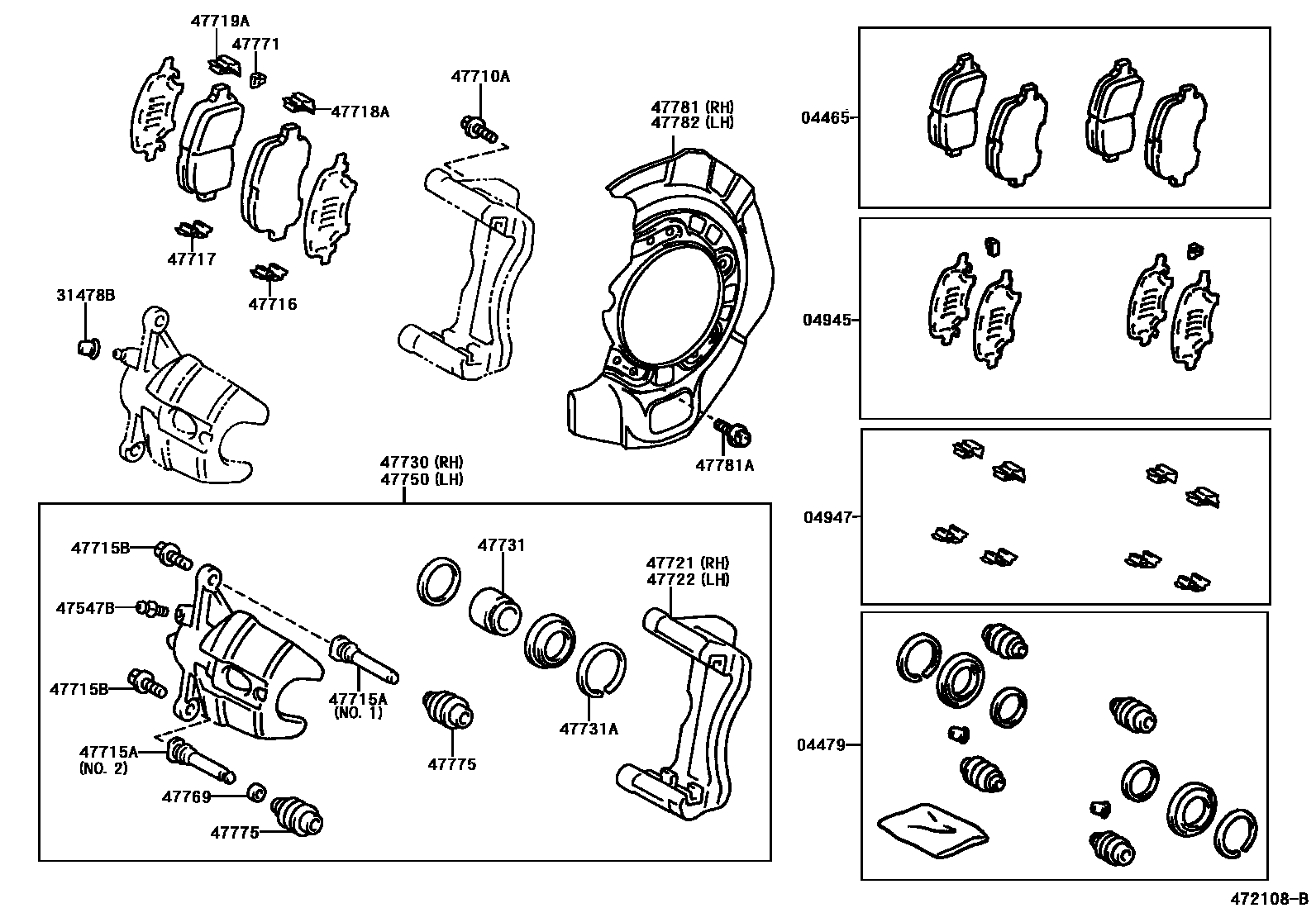

FRONT DISC BRAKE CALIPER & DUST COVER
04465PAD KIT, DISC BRAKE, FRONT
MARK AK PA533,HONG KONG OR SINGAPORE OR BRUNEI SPEC
sub04465-48060
MARK NBK PN532H,SAUDI ARABIA & GULF SPEC
MARK AK PA560H,HONG KONG OR SINGAPORE OR BRUNEI SPEC
04479CYLINDER KIT, DISC BRAKE, FRONT
04945SHIM KIT, ANTI SQUEAL, FRONT
HONG KONG OR SINGAPORE OR BLUNEI SPEC
HONG KONG OR SINGAPORE OR BRUNEI SPEC
31478BCAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)
47547BPLUG, BLEEDER(FOR FRONT DISC BRAKE)
47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)
*12-1.25PX29.5-23
47715APIN, FRONT DISC BRAKE CYLINDER SLIDE
NO.2
47715BBOLT(FOR FRONT DISC BRAKE CYLINDER SLIDE)
47716PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE)
sub47716-48130
BRUNEI OR HONG KONG OR SINGAPORE SPEC
BRUNEI OR HONG KONG OR SINGAPORE SPEC
47717PLATE, PAD SUPPORT, NO.2(FOR FRONT DISC BRAKE)
sub47716-48130
BRUNEI OR HONG KONG OR SINGAPORE SPEC
BRUNEI OR HONG KONG OR SINGAPORE SPEC
47718APLATE, PAD SUPPORT, NO.3(FOR FRONT DISC BRAKE)
sub47716-48140
47719APLATE, PAD SUPPORT, NO.4(FOR FRONT DISC BRAKE)
sub47716-48140
47730CYLINDER ASSY, FRONT DISC BRAKE, RH
HONG KONG OR SINGAPORE OR BLUNEI SPEC
BRUNEI OR HONG KONG OR SINGAPORE SPEC
47731PISTON, FRONT DISC BRAKE
47731ARING, SET(FOR FRONT DISC BRAKE PISTON)
47750CYLINDER ASSY, DISC BRAKE, LH
HONG KONG OR SINGAPORE OR BLUNEI SPEC
BRUNEI OR HONG KONG OR SINGAPORE SPEC
47769BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE)
47771PLATE, PAD WEAR INDICATOR, NO.1
HONG KONG OR SINGAPORE OR BLUNEI SPEC
47775BOOT, BUSH DUST(FOR FRONT DISC BRAKE)
47781COVER, DISC BRAKE DUST, FRONT RH
47781ABOLT(FOR DUST COVER TO STEERING KNUCKLE ARM SETTING)
47782COVER, DISC BRAKE DUST, FRONT LH
25 parts on this diagram · 3 diagrams in section
