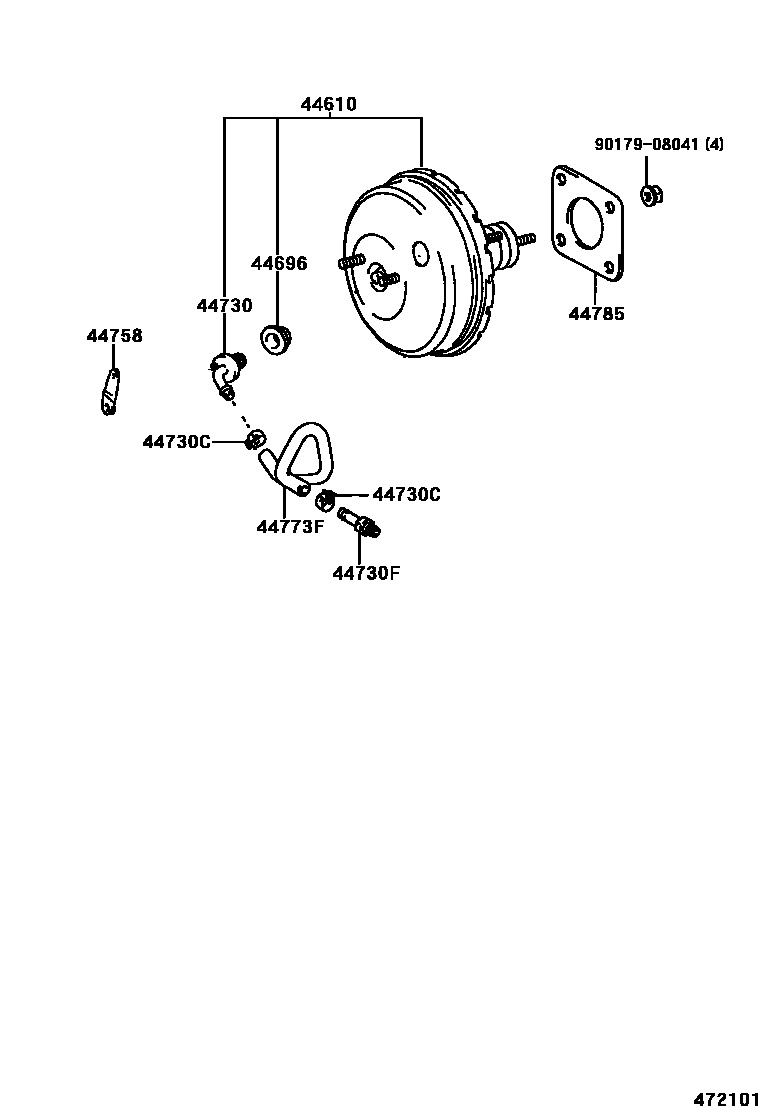

BRAKE BOOSTER & VACUUM TUBE

0001 1 0002 1

44610BOOSTER ASSY, BRAKE

main44610-48020iMCU15..RHD200007

HONG KONG OR SINGAPORE OR BLUNEI SPEC

main44610-48070iMCU15..RHD200007

main44610-48080iMCU15..LHD200007

44696GROMMET, CHECK VALVE

main90480-24015iMCU15..RHD200007

HONG KONG OR SINGAPORE OR BLUNEI SPEC

main90480-24439iMCU15200007

44730VALVE ASSY, VACUUM CHECK(FOR BRAKE)

main44730-14050iMCU15200007

main44730-28010iMCU15..RHD200007

HONG KONG OR SINGAPORE OR BLUNEI SPEC

44730CCLIP(FOR VACUUM HOSE)

main90467-16002iMCU15..RHD200007

sub96134-51500

44730FUNION, VACUUM HOSE(FOR MANIFOLD SIDE)

main90404-51319iMCU15200007

44758BRACKET, VACUUM CHECK VALVE

main44758-14150iMCU15..LHD200007

main44758-40020iMCU15..RHD200007

44773FHOSE, UNION TO CHECK VALVE

main44773-48040iMCU15..RHD200007

HONG KONG OR SINGAPORE OR BLUNEI SPEC

main44773-48050iMCU15..RHD200007

44785GASKET, BRAKE BOOSTER

main44785-32010iMCU15200007

9017908041

main90179-08041

9 parts on this diagram · 2 diagrams in section
