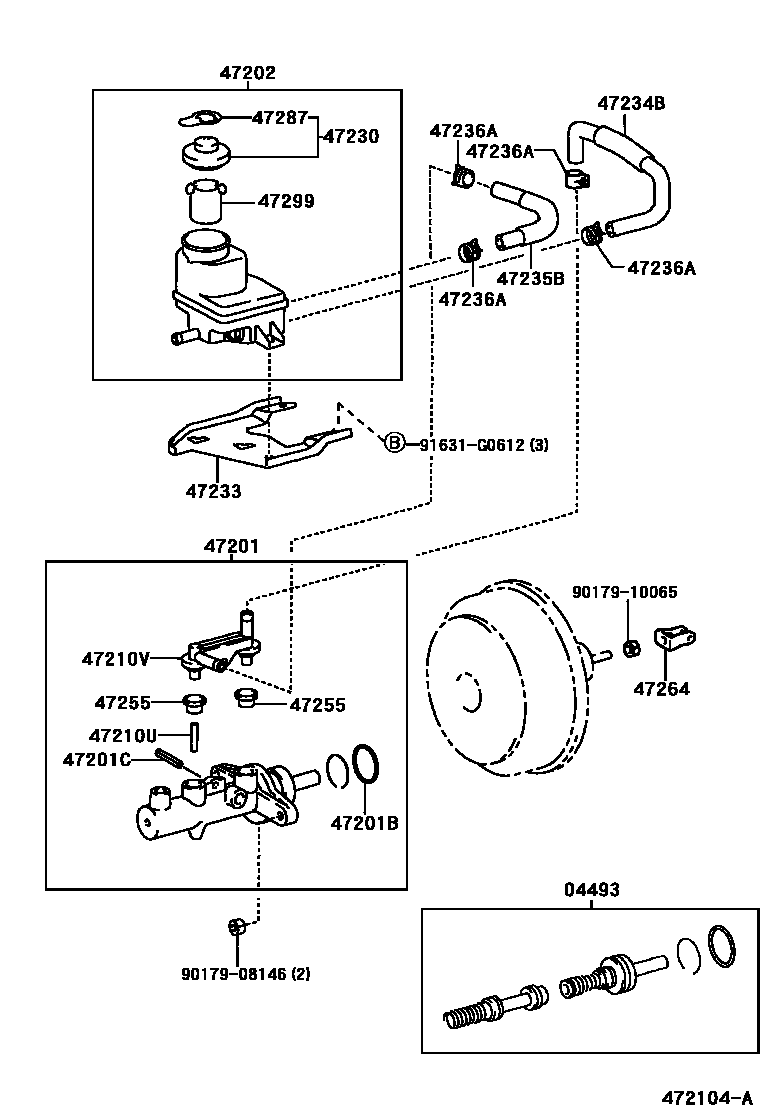

BRAKE MASTER CYLINDER
04493CYLINDER KIT, BRAKE MASTER
HONG KONG OR SINGAPORE OR BLUNEI SPEC
47201CYLINDER SUB-ASSY, BRAKE MASTER
HONG KONG OR SINGAPORE OR BLUNEI SPEC
47201BRING, O(FOR BRAKE MASTER CYLINDER)
47201CRING PIN, BRAKE MASTER CYLINDER
47202RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER
HONG KONG OR SINGAPORE OR BLUNEI SPEC
47210UPIN, STRAIGHT(FOR BRAKE MASTER CYLINDER)
HONG KONG OR SINGAPORE OR BLUNEI SPEC
47210VUNION(FOR BRAKE MASTER CYLINDER)
HONG KONG OR SINGAPORE OR BLUNEI SPEC
47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER
HONG KONG OR SINGAPORE OR BLUNEI SPEC
sub47230-47090
47235BTUBE, BRAKE MASTER CYRINDER RESERVOIR, NO.2
47236ACLIP(FOR RESERVOIR TUBE)
sub96134-51500
47255GROMMET, MASTER CYLINDER RESERVOIR
HONG KONG OR SINGAPORE OR BLUNEI SPEC
47264CLEVIS, MASTER CYLINDER PUSH ROD
47287LABEL, BRAKE FLUID INFORMATION
47299STRAINER, BRAKE MASTER CYLINDER RESERVOIR
9017908146
main90179-08146
9017910065
main90179-10065
91631G0612
main91631-G0612
19 parts on this diagram · 3 diagrams in section
