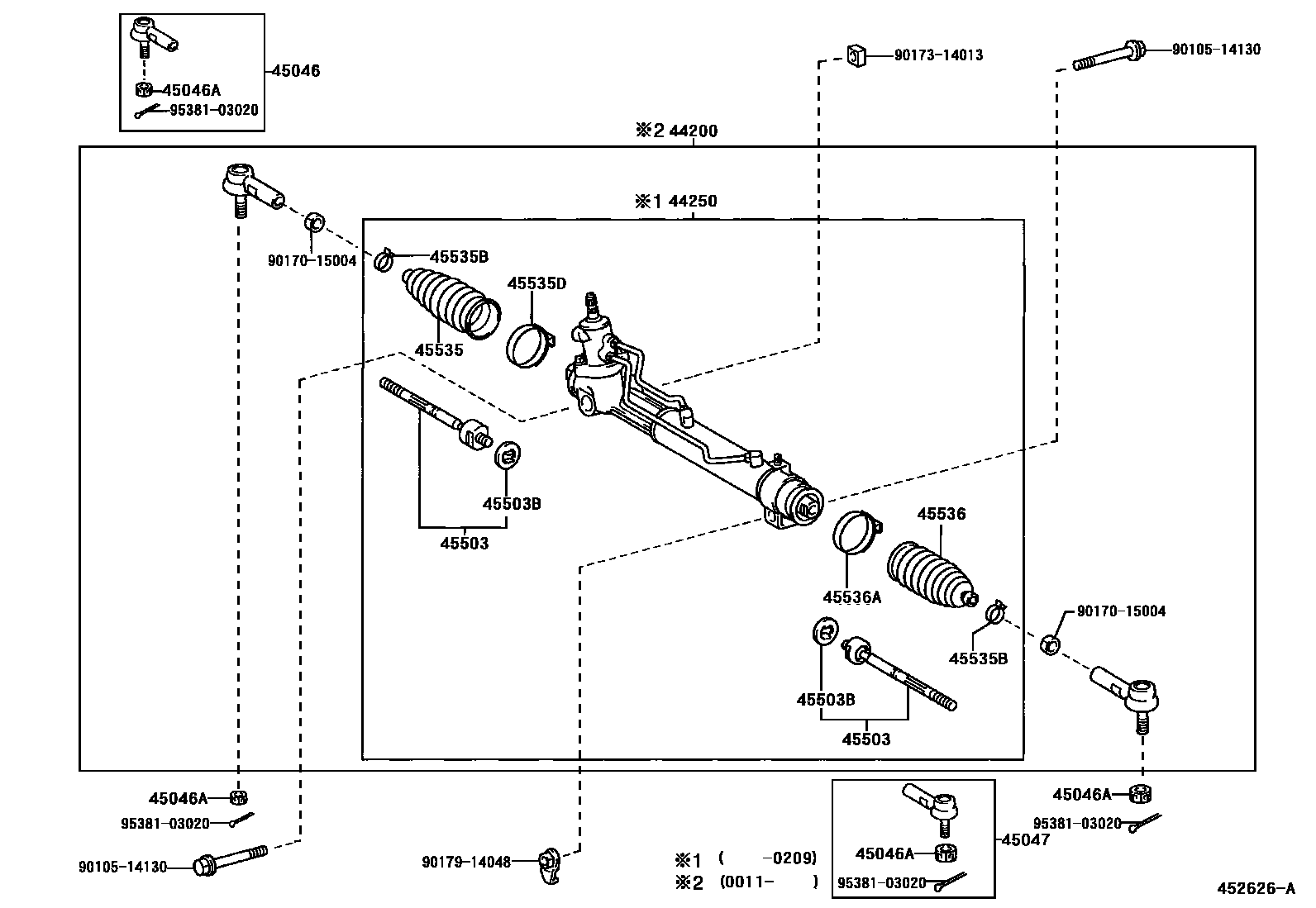

FRONT STEERING GEAR & LINK

0001 1 0002 1 0003 1 0004 1

44200LINK ASSY, POWER STEERING

main44200-48031iMCU15..RHD200011

sub44250-48031

main44200-48051iMCU15..LHD200011

sub44250-48051

44250GEAR ASSY, POWER STEERING(FOR RACK & PINION)

main44250-48030iMCU15..RHD200007-200011

sub44250-48031

main44250-48031iMCU15..RHD200011-200209

main44250-48050iMCU15..LHD200007-200011

sub44250-48051

main44250-48051iMCU15..LHD200011-200209

sub44250-48041

45046END SUB-ASSY, TIE ROD, RH

main45046-29255iMCU15200007

45046ANUT, CASTLE(FOR TIE ROD END)

main90171-12028iMCU15200007

45047END SUB-ASSY, TIE ROD, LH

main45046-29255iMCU15200007

45503END SUB-ASSY, STEERING RACK

main45503-49025iMCU15200007-200011

sub45503-49095

main45503-49095iMCU15200011

45503BWASHER, CLAW(FOR STEERING RACK END)

main90214-14002iMCU15200007-200011

OD=37

main90214-14009iMCU15200011

OD=35.2

45535BOOT, STEERING RACK, NO.1

main45535-06020iMCU15200007-200109

(L)

main45535-07010iMCU15200109

(L)

main45535-33020iMCU15200007

(J)

45535BCLIP(FOR STEERING RACK BOOT)

main90467-19017iMCU15200007-200204

sub90467-19021

main90467-19021iMCU15200204

45535DCLAMP(FOR STEERING RACK BOOT NO.1)

main90460-58006iMCU15200007

45536BOOT, STEERING RACK, NO.2

main45535-06020iMCU15200007-200109

(L)

main45535-07010iMCU15200109

(L)

main45535-33020iMCU15200007

(J)

45536ACLAMP(FOR STEERING RACK BOOT NO.2)

main90460-58006iMCU15200007

9010514130

main90105-14130

9017015004

main90170-15004

9017314013

main90173-14013

9017914048

main90179-14048

9538103020

main95381-03020

17 parts on this diagram · 4 diagrams in section
