STEERING WHEEL

45100WHEEL ASSY, STEERING

main45100-48060-C0iMCU15200007

3-SPOKE,LEATHER,BLACK,TRIM2#

sub45100-48060

main45100-48060-E0iMCU15200007

3-SPOKE,LEATHER,SANDAL WOOD,TRIM0#

sub45100-48060

main45100-48070-C0iMCU15200007

3-SPOKE,LEATHER,W(CRUISE CONTROL),BLACK,TRIM2#

sub45100-48070

main45100-48070-E0iMCU15200007

3-SPOKE,LEATHER,W(CRUISE CONTROL),SANDAL WOOD,TRIM0#

sub45100-48070

main45100-48110-C0iMCU15200007-200012

3-SPOKE,WOOD&LEATHER,W(CRUISE CONTROL),BLACK,TRIM2#

sub45100-48111

main45100-48110-E0iMCU15200007-200012

3-SPOKE,WOOD&LEATHER,W(CRUISE CONTROL),SANDAL WOOD,TRIM0#

sub45100-48111

main45100-48111-C0iMCU15200012-200210

3-SPOKE,WOOD&LEATHER,W(CRUISE CONTROL),BLACK,TRIM2#

sub45100-48112

main45100-48111-E0iMCU15200012-200210

3-SPOKE,WOOD&LEATHER,W(CRUISE CONTROL),SANDAL WOOD,TRIM0#

sub45100-48112

main45100-48112-C0iMCU15200210

3-SPOKE,WOOD&LEATHER,BLACK,TRIM2#

sub45100-48113

main45100-48112-E0iMCU15200210

3-SPOKE,WOOD&LEATHER,SANDAL WOOD,TRIM0#

sub45100-48113

45130BUTTON ASSY, HORN

main45130-48040-C0iMCU15200007

BLACK,TRIM2#

main45130-48040-E0iMCU15200007

SANDAL WOOD,TRIM0#

45186COVER, STEERING WHEEL, LOWER NO.2

main45186-44010-C0iMCU15200007

BLACK,TRIM2#

sub45186-44010

main45186-44010-E4iMCU15200007

SANDAL WOOD,TRIM0#

sub45186-44010

45187COVER, STEERING WHEEL, LOWER NO.3

main45186-44010-C0iMCU15200007

BLACK,TRIM2#

sub45186-44010

main45186-44010-E4iMCU15200007

SANDAL WOOD,TRIM0#

sub45186-44010

main45187-48010-C0iMCU15200007

W(CRUISE CONTROL),BLACK,TRIM2#

sub45187-48010

main45187-48010-E0iMCU15200007

W(CRUISE CONTROL),SANDAL WOOD,TRIM0#

sub45187-48010

45188SCREW, STEERING WHEEL PAD ATTACHING

main90148-60007iMCU15200007

L=18

45201PNUT, STEERING WHEEL SET

main90179-12071iMCU15200007

8408

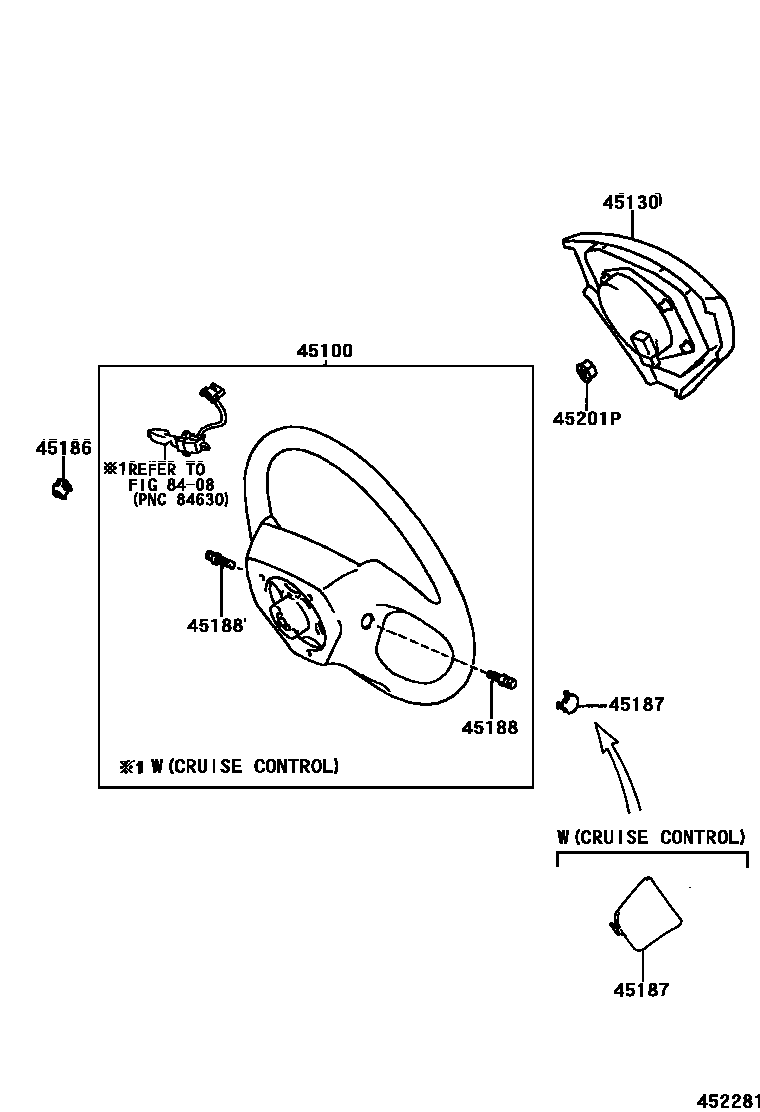

7 parts on this diagram · 1 diagram in section
