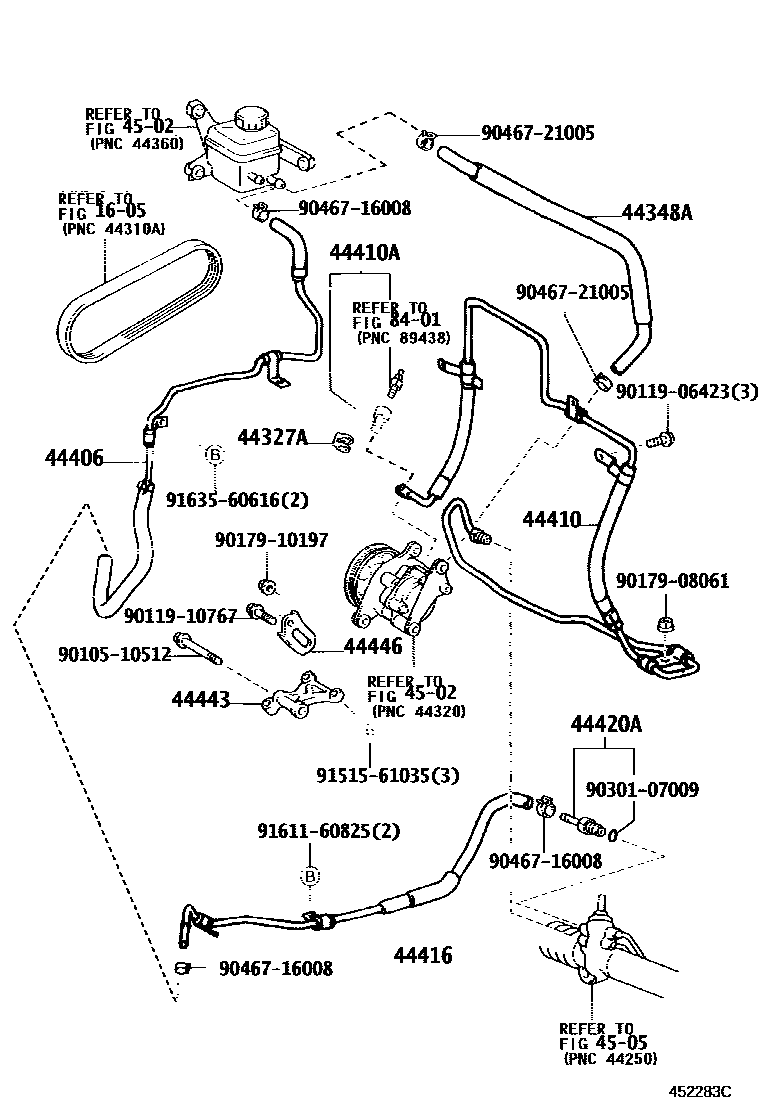

POWER STEERING TUBE

0001 1 0002 1HONG KONG,SINGAPORE OR BLUNEI0003 1 0004 1SAUDI ARABIA,GULF SPEC

1605

44327AGASKET, PRESSURE PORT, NO.1

main44327-30030iMCU15¥160200007

44348AHOSE, OIL RESERVOIR TO PUMP, NO.1

main44348-48010iMCU15¥6,200200007

44406TUBE SUB-ASSY, RETURN

main44406-48010iMCU15¥5,100200007

main44406-48020iMCU15..RHD¥3,420200007

HONG KONG OR SINGAPORE OR BLUNEI SPEC

main44406-48020iMCU15..LHD¥3,420200108

SAUDI ARABIA,GULF SPEC

44410TUBE ASSY, PRESSURE FEED

main44410-48030iMCU15..LHD¥31,100200007

main44410-48050iMCU15..RHD¥36,500200007

44410ABOLT, UNION(FOR PRESSURE FEED TUBE)

main44338-33090iMCU15¥3,440200007

44416TUBE, RETURN(FOR STEERING GEAR OUTLET)

main44416-48010iMCU15..RHD¥4,280200007

main44416-48020iMCU15..LHD¥4,280200007

44420ATUBE ASSY, RETURN

main44420-17010iMCU15..RHD¥1,070200007

main44420-48010iMCU15..LHD¥5,100200007

main44420-48040iMCU15..LHD¥5,100200108

SAUDI ARABIA,GULF SPEC

44443BRACKET, PUMP

main44443-33041iMCU15¥3,700200007

44446STRUT, ADJUSTING

main44446-33010iMCU15¥850200007

4502

4505

8401

9010510512

main90105-10512¥310

9011906423

main90119-06423¥70

9011910767

main90119-10767¥450

9017908061

main90179-08061¥80

9017910197

main90179-10197¥230

9030107009

main90301-07009¥260

9046716008

main90467-16008¥240

9046721005

main90467-21005¥330

9151561035

main91515-61035¥120

9161160825

main91611-60825¥140

9163560616

main91635-60616¥120

24 parts on this diagram · 4 diagrams in section
