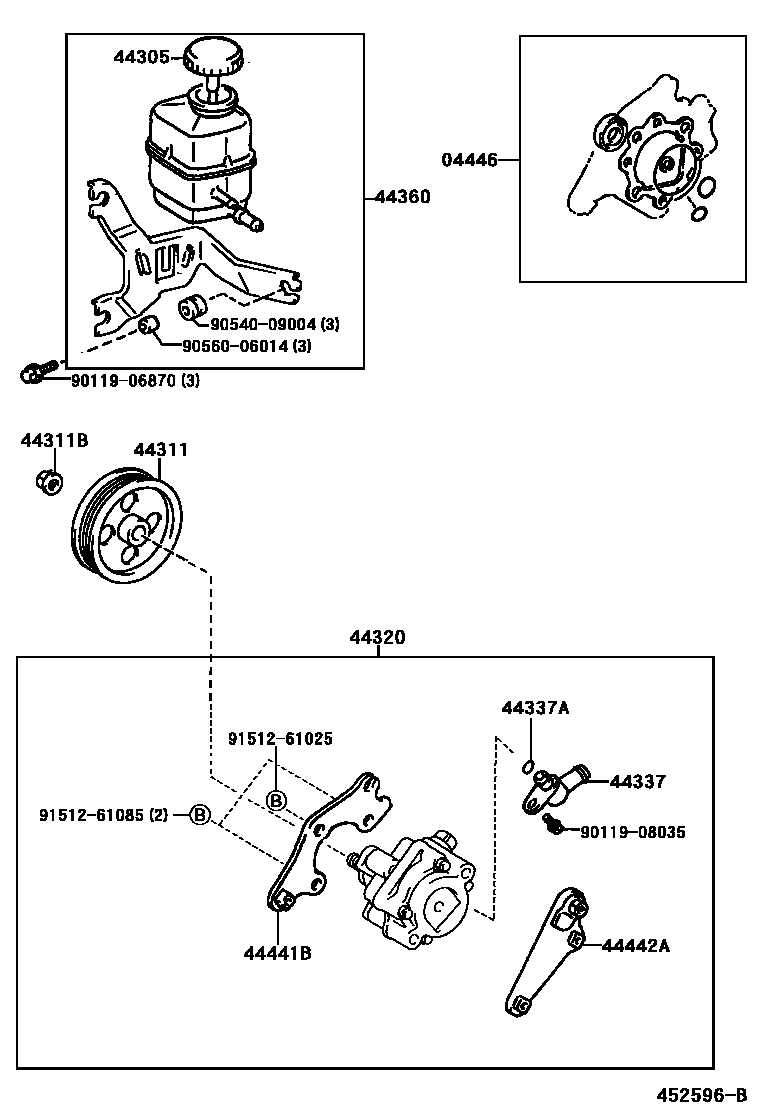

VANE PUMP & RESERVOIR (POWER STEERING)

04446GASKET KIT, POWER STEERING PUMP

main04446-34010iMCU15¥2,320200007

sub04446-53030¥1,360

44305CAP SUB-ASSY, VANE PUMP OIL RESERVOIR

main44305-32020iMCU15¥1,470200007-200302

sub44305-32040¥1,010

44311PULLEY, VANE PUMP

main44311-28110iMCU15¥6,700200108

main44311-33020iMCU15¥6,700200007-200108

sub44311-28110¥6,700

44311BNUT(FOR VANE PUMP PULLEY)

main90178-12003iMCU15¥160200007

44320PUMP ASSY, VANE

main44320-48020iMCU15¥81,600200007

44337UNION, POWER STEERING SUCTION PORT

main44337-33030iMCU15¥1,880200007

44337ARING, O(FOR POWER STEERING SUCTION PORT)

main90301-11016iMCU15¥140200007

44360RESERVOIR ASSY, VANE PUMP OIL

main44360-48010iMCU15¥10,300200007-200302

44441BBRACKET, PUMP, FRONT

main44441-33022iMCU15¥1,140200007

44442ABRACKET, VANE PUMP, REAR

main44442-33021iMCU15¥1,070200007

9011906870

main90119-06870¥90

9011908035

main90119-08035¥110

9054009004

main90540-09004¥160

9056006014

main90560-06014¥350

9151261025

main91512-61025¥180

9151261085

main91512-61085¥310

16 parts on this diagram · 1 diagram in section
